| Camshaft Bearing Cap Bolts |
11 (15) |
| Camshaft Sprocket Bolts |
11 (15) |
| Clutch Drive Plate |
17 (23) |
| Connecting Rod Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Additional 80 Degrees |
| Cooling Fan Nut |
22 (30) |
| Cylinder Head Bolt |
| Step 1 |
22 (30) |
| Step 2 |
Additional 80 Degrees |
| Step 3 |
Additional 80 Degrees |
| Exhaust Manifold Bolts |
18 (24) |
| Flywheel-To-Crankshaft Bolts |
78 (105) |
| Front/Rear Crankshaft End Cover Bolts (8-mm) |
16 (22) |
| Idler Sprocket Flange Nuts |
10 (13) |
| Intake Manifold Bolts |
11 (15) |
| Main Bearing Cap Bolts |
| Step 1 |
15 (20) |
| Step 2 (Torque Angle) |
70 Degrees |
| Main Bearing Sleeve Bolts |
| Step 1 |
15 (20) |
| Step 2 (Torque Angle) |
45 Degrees |
| Oil Filter Cover |
20-24 (27-33) |
| Oil Pan Cover Bolts (8-mm) |
15 (20) |

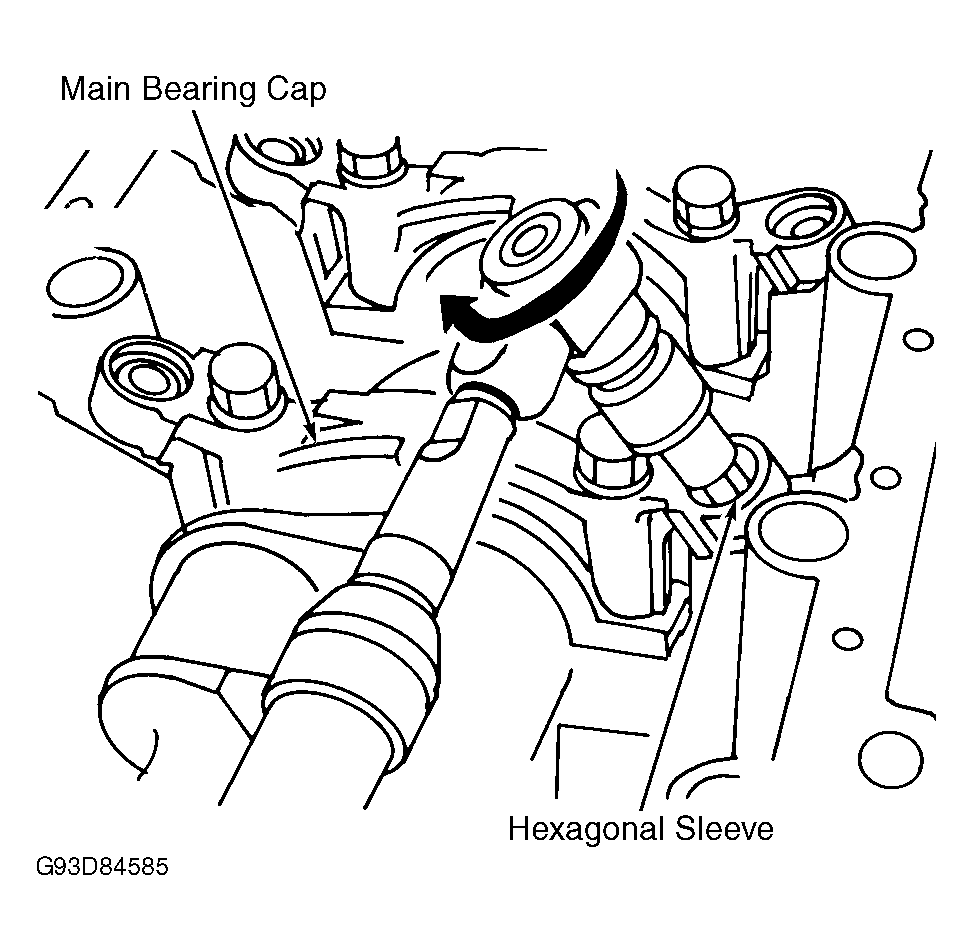

| Oil Pump Hexagonal Sleeve |
|
| Oil Pump Hexagonal Sleeve Bolt |
16 (22) |
| Oil Pump Sprocket Nut |
33 (48) |
| Starter Bolts |
37 (50) |
| Upper/Lower Timing Chain Cover Bolts (8-mm) |
16 (22) |
| Vibration Damper Bolts (7-mm) |
17 (23) |
| Vibration Damper Hub Bolt |
| Step 1 |
66-81 (90-110) |
| Step 2 |
60 Degrees |
| Step 3 |
60 Degrees |
| Step 4 |
30 Degrees |
| Water Pump Bolts (8-mm) |
16 (22) |
| INCH Lbs. (N.m) |
| Cylinder Head Cover Bolts |
89 (10) |
| Front/Rear Crankshaft End Cover Bolts (6-mm) |
89 (10) |
| Fuel Injectors-To-Intake Bolts |
89 (10) |
| Main Bearing Sleeve Nuts |
89 (10) |
| Oil Filter Housing Bolts |
89 (10) |
| Oil Pan Cover Bolts (6-mm) |
89 (10) |
| Upper/Lower Timing Case Cover Bolts (6-mm) |
89 (10) |
| Water Pump Bolts (6-mm) |
89 (10) |
| Water Pump Pulley Bolts |
89 (10) |
