Navigation System Cd V 08-Operating Software For MK1 (84 01 97)
Publication date: 1998-05-01Reference number: 84 01 97
NAVIGATION SYSTEM CD V 08-OPERATING SOFTWARE FOR MK1
TECHNICAL SERVICE BULLETIN
BMW NAVIGATION SYSTEM CD V 08-OPERATING SOFTWARE FOR MARK I SYSTEM
Model(s): 1995 BMW 740i
1995-1998 BMW 740iL, 750iL
1997-1998 BMW 528i, 540i, 740i
E38, E39
Group: 84 - Phone, Navigation Systems
Bulletin No.: 84 01 97
Date: May, 1998
SERVICE INFORMATION
Perform the procedure outlined in this Service Information on all affected vehicles the next time they are in the shop for maintenance or repairs.
INFORMATION
The new CD BMW Navigation V 08 is going to be distributed to every retail center through the Automatic Tool Shipment Program. The part number remains the same: 01 59 9 789 299, index has been changed to "j".
CD V 08 contains the following operating software:
| Software Version | Application |
|---|---|
| 7.3 | Mark I-E39/E38 (up to 9/97) |
| 2.2 | Mark II-E39/E38 (from 9/97) |
| 2.1 | Radio Navigation-E46 (from 3/99) |
The Navigation Computer automatically recognizes the required version when the software is loaded.
Previously released Navigation Software CD's (V 6.5, V 7.3, V 05) should be discarded.
SITUATION
The operating software for the Mark I Nav System Computer has been revised. The original operating software carried version designation 6.5 which was updated in production as of approximately May 1997 to version 7.0. While version 7.0 contained many system enhancements, it did not eliminate various software problems. Version 7.3 (contained in CD V 08) addressed these software problems.
The operating software in the navigation computer and in the video module can be updated by means of the CD ROM drive of the navigation computer.
Customers who own an affected vehicle, have been informed in 09/97 by the data base supplier Nav Tech, to arrange an appointment for an update of the system. This update is going to be performed free of charge to the customers, because of the software errors in the existing versions 6.5 or 7.0. Any future updates of the operating system software which represent system enhancement will be offered to customers as an optional customer pay upgrade item.
The operating software CD is for workshop use only and must not be given to customers. Every retailer will be supplied with two operating software CD V 08.
AFFECTED VEHICLES
All E38, E39 with Navigation System Mk 1, software versions V 6.5 and V 7.0 (option 609), from start of series production up to September 1, 1997.
(Later production vehicles are equipped with the Navigation System Mk II at the factory).
In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.
The Chassis Number Ranges listed below are only for informational purposes and are not to be considered the only deciding factor.
| Model | Chassis Number Range |
|---|---|
| 528i | BV50431 - BV53467 |
| 528iA | BW08452 - BW29770 |
| 540i | BV90005 - BV92888 |
| 540iA | BW52567 - BW57858 |
| 740iA | DL46705 - DL52549 |
| 740iL | DM00635 - DM13174 |
| 750iL | DH67771 - DH68923 |
PROCEDURE
Turn the ignition key to terminal R (ignition key in position 1).

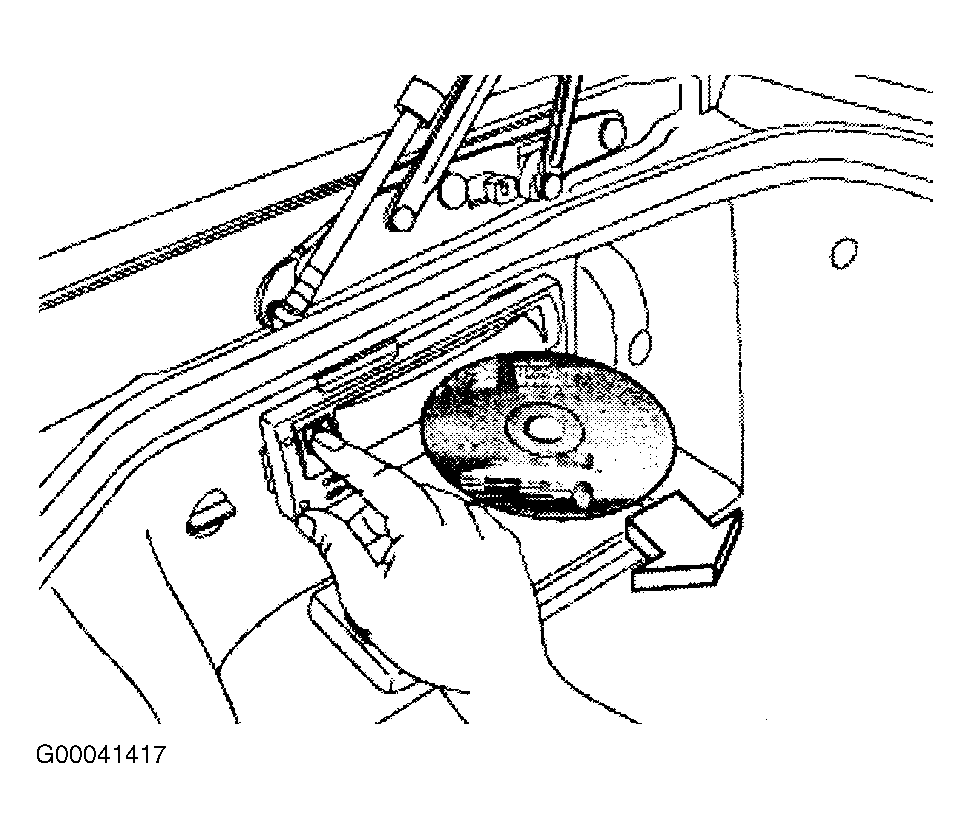

Remove the map CD from the Navigation computer by pressing the eject button. See Fig 1 .

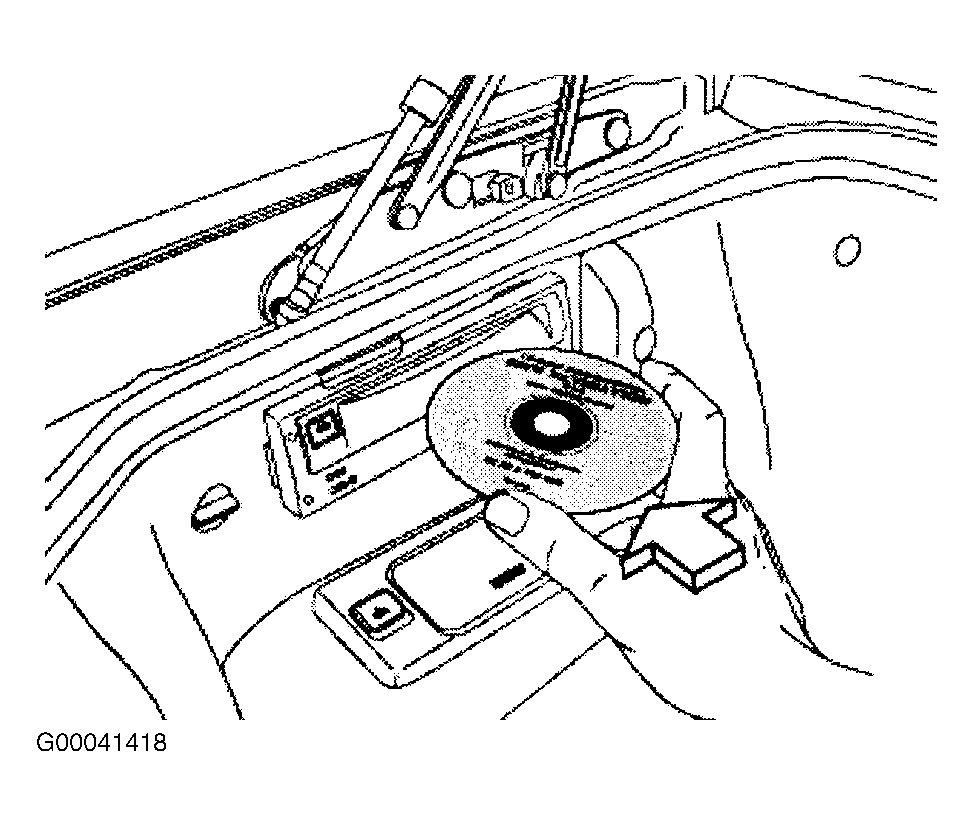

Insert Software CD V 08 into the navigation computer. See Fig 2 .
The CD-ROM bears the P/N 01 59 9 789 299 Index "j".

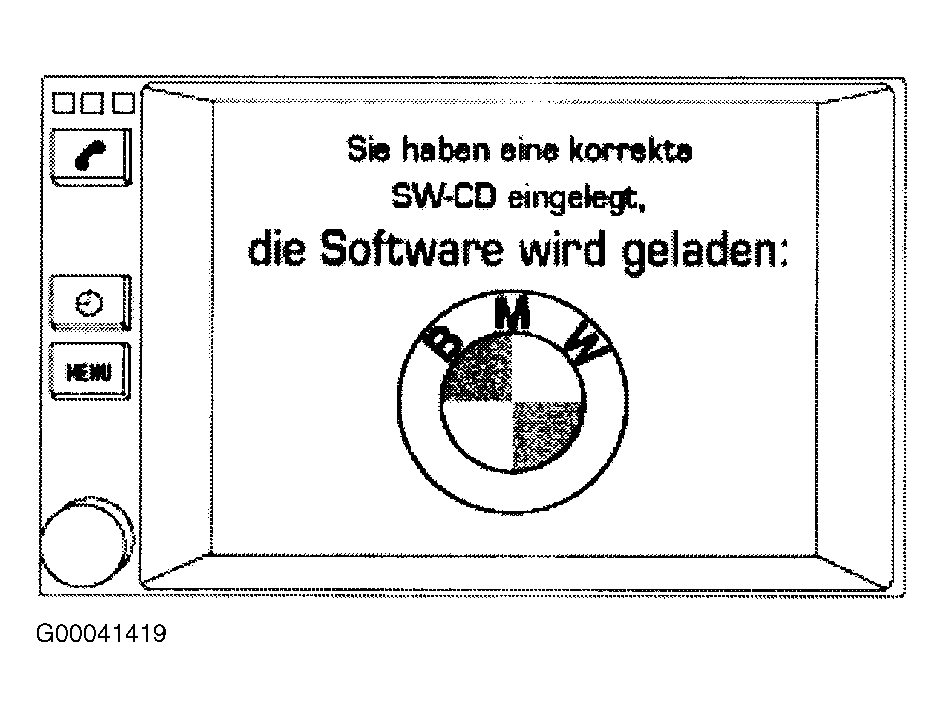

The monitor will be gray for approx. 20-30 seconds, the message "BITTE WARTEN" (please wait) will appear to be followed by the BMW roundel which will be "filled in" clockwise to show the progress of loading (approx. 3-4 minutes). See Fig 3 .

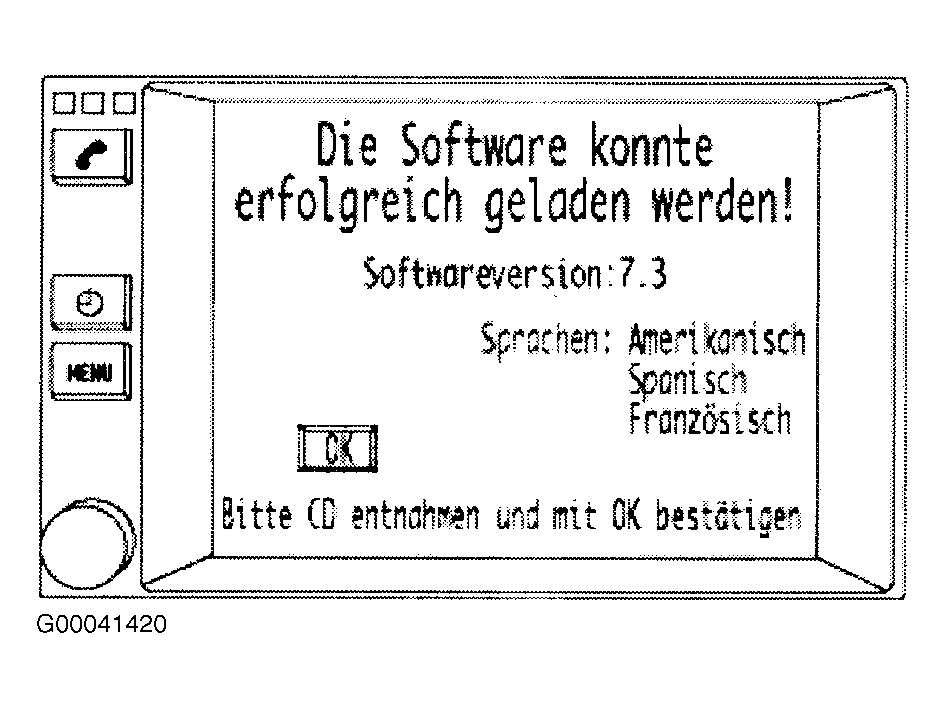

Once loading has been completed, a message (see Fig 4 ) software has been loaded" is displayed.
Now, first remove the CD and then confirm completion of loading by pressing the rotary push-button on the on board monitor. The MENU will be displayed again.
Reinsert the customer's map CD into the navigation computer after the menu display appears.
ADDITIONAL INFORMATION
Customers will be informed about the update by the letter from Nav Tech.
The improvements may only be obtained when loading both, the updated map CD (already distributed to customers by Nav. Tech.) and the updated operating software.
PARTS INFORMATION
| Part Number | Qty. | Description |
|---|---|---|
| 01 59 9 789 299 | 1 | CD-ROM V 08 Index "j" |
SERVICE ACTION LABEL INSTRUCTIONS
This Service Action has been assigned code number 205. After the vehicle has been checked, and corrected if necessary, obtain a label (SD 92-090) and:
- emboss your BMW dealer warranty number in the middle of the label (1);
- punch out code number 205 printed on the label and,
- affix the label to the B pillar as shown in Fig 5 .
If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.
WARRANTY INFORMATION
Covered under the terms of the BMW New Car Limited Warranty. Reimbursement for this action will be provided through Campaign Entry.
