Mirror Assembly

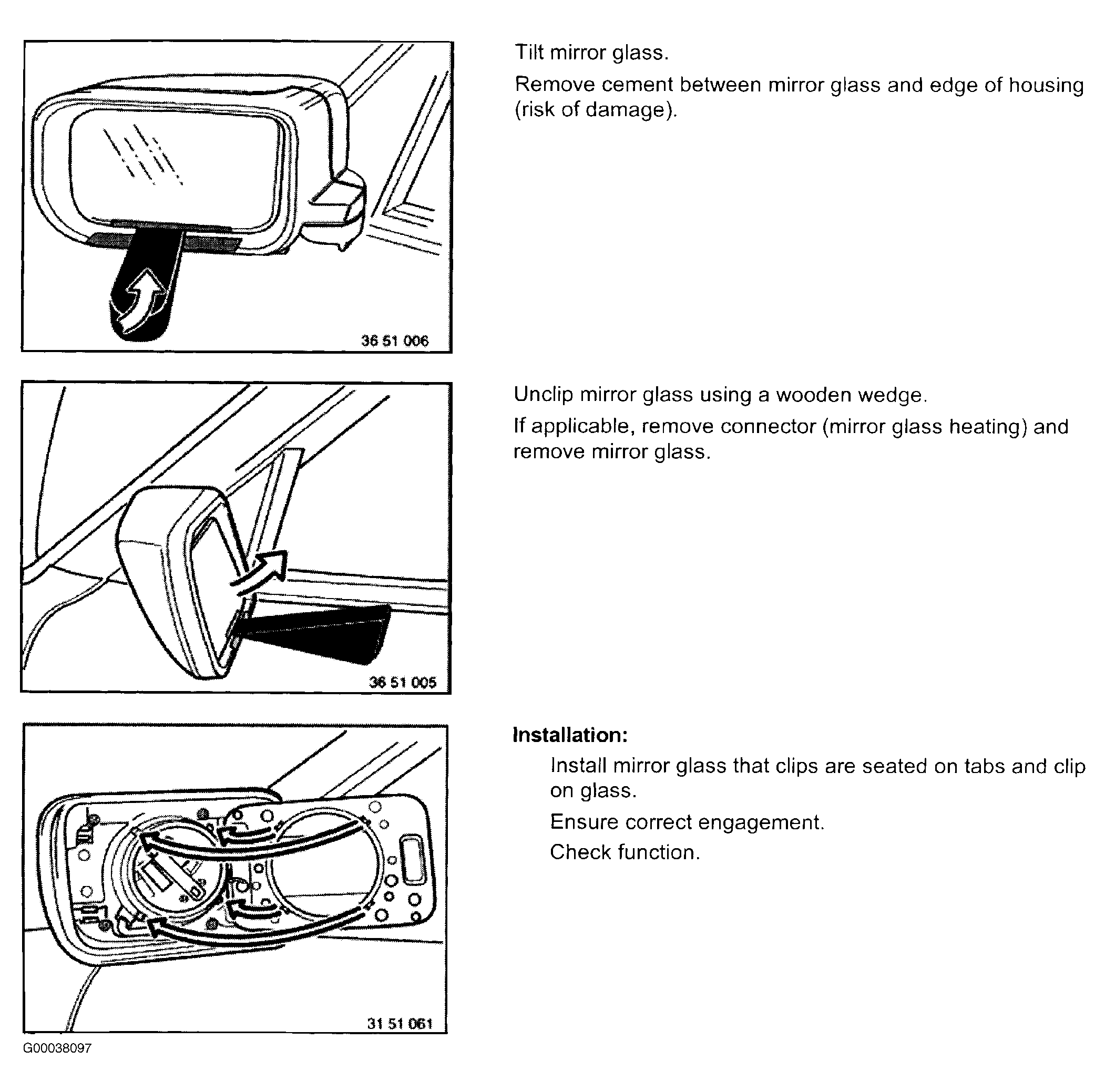

NOTE: Ensure mirror glass is removed from housing. See Figure .

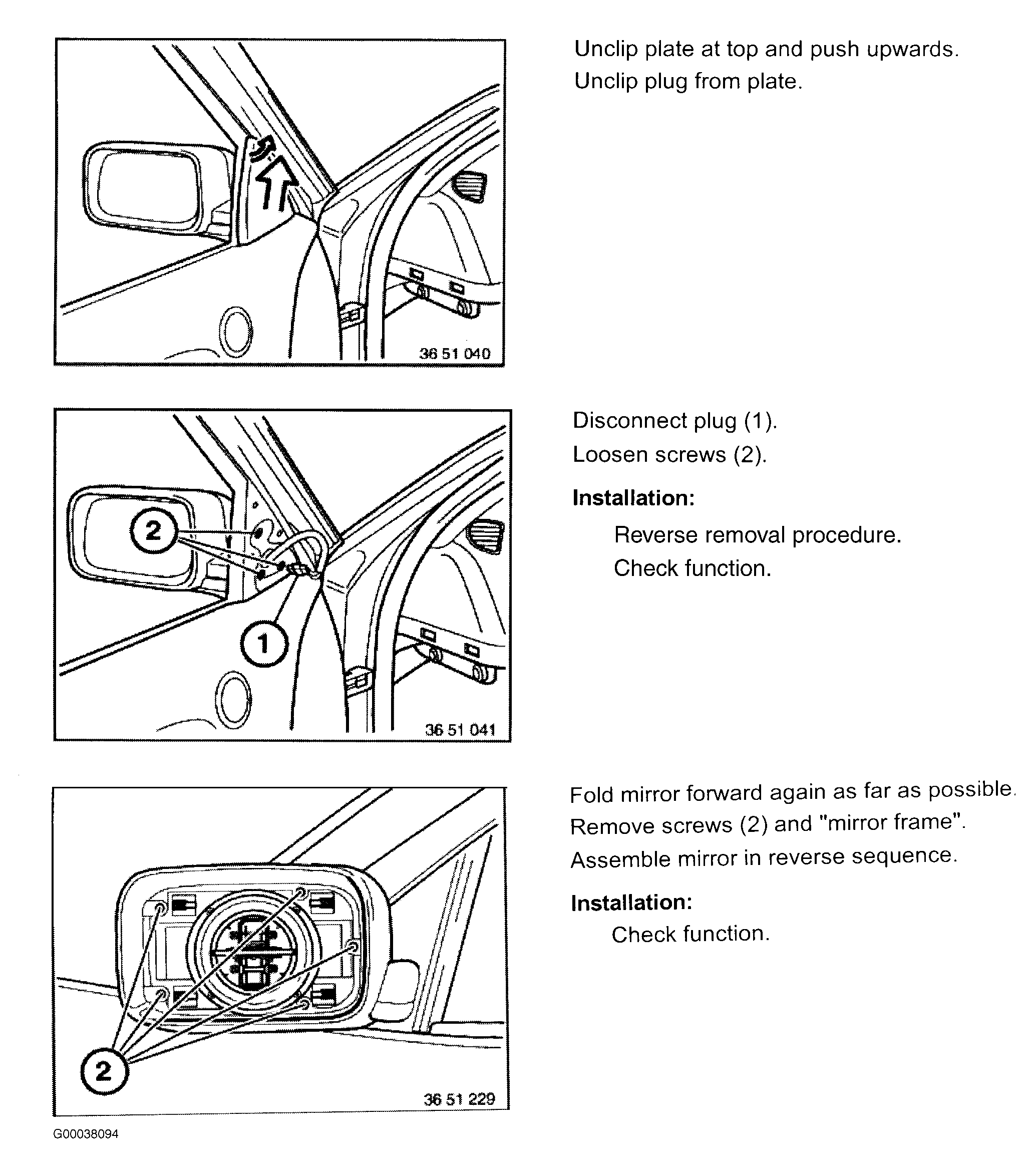

Fig 1: Removing & Installing Mirror Assembly (1 Of 2)
G00038094Courtesy of BMW OF NORTH AMERICA, INC.

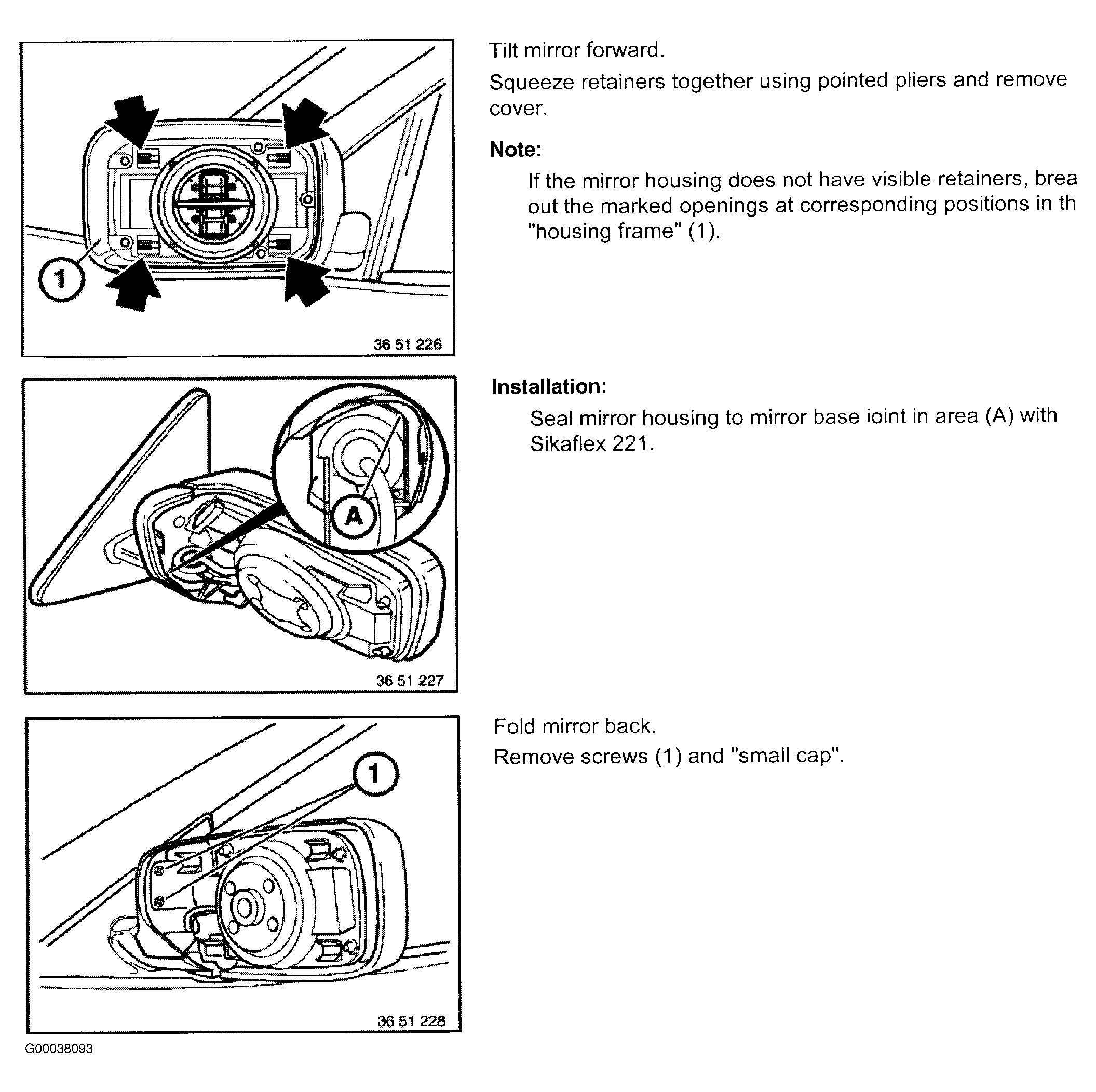

Fig 2: Removing & Installing Mirror Assembly (2 Of 2)
G00038093Courtesy of BMW OF NORTH AMERICA, INC.
