Engine Controls - Self-Diagnosis - Tests With Codes
›
Diagnostic Trouble Code Definitions
›
Diagnostic Trouble Code Cross-Reference & Tables
›
DTC Chart For Catalyst System (V12)
DTC Chart For Catalyst System (V12)

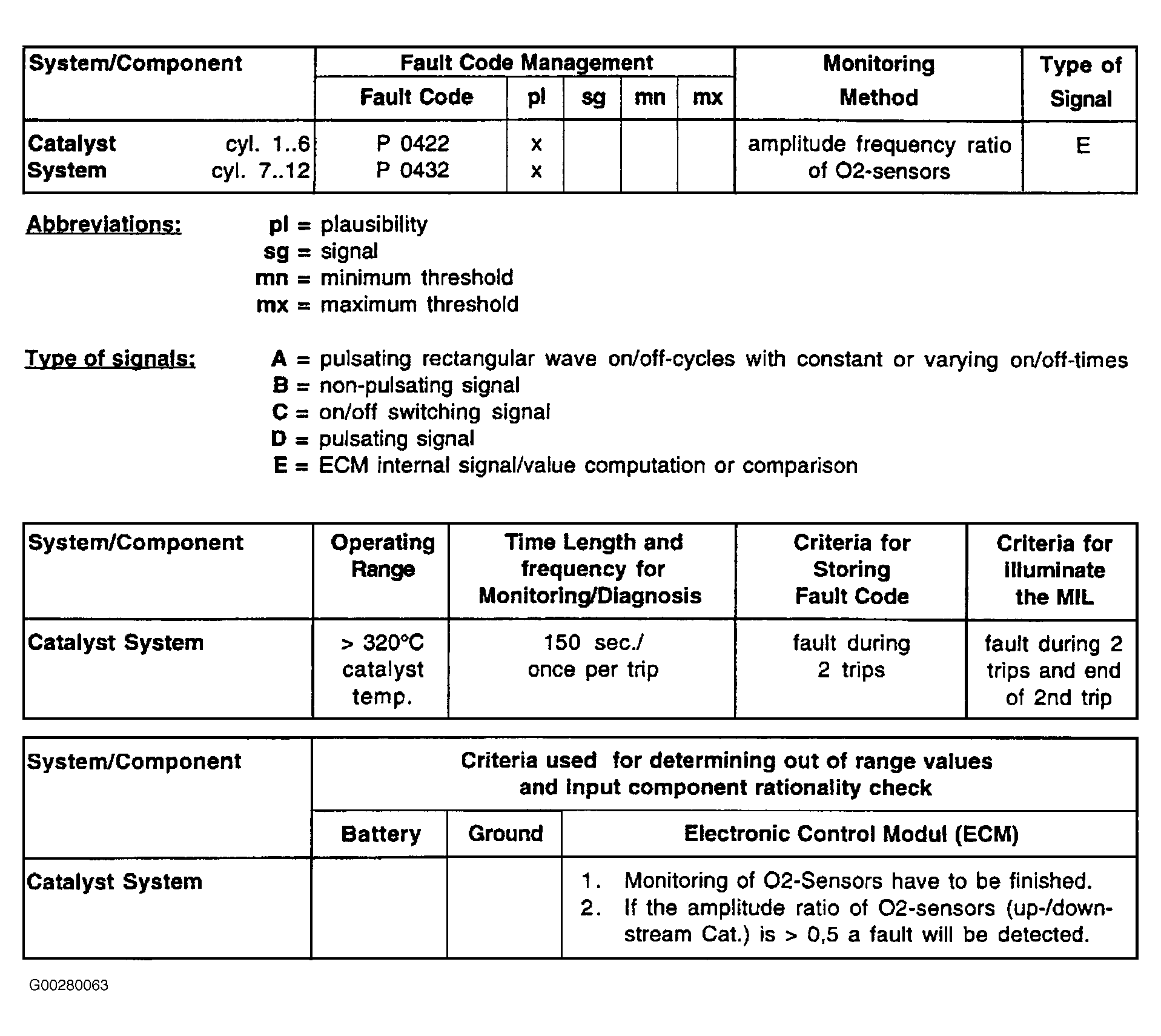

Fig 1: DTC Chart For Catalyst System (V12)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
