61 71 004 Adjusting windscreen washer jets

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

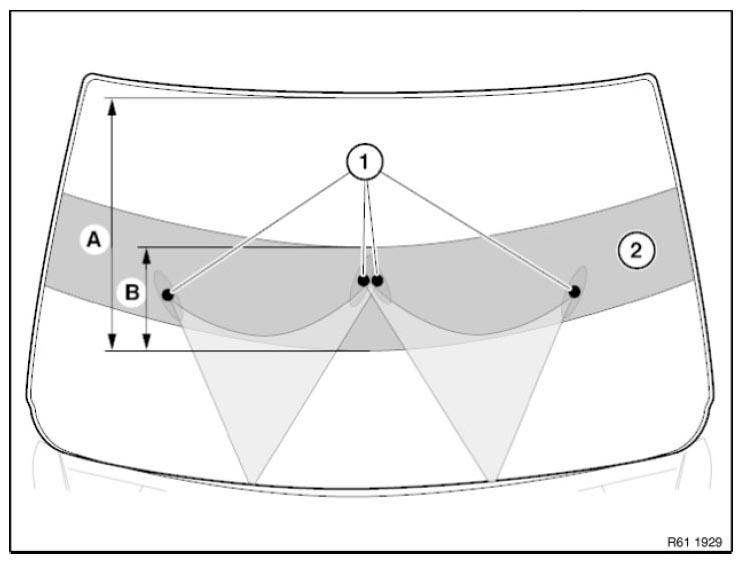

Fig 1: Identifying Tolerance Range Mark With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Mark tolerance range (2) with adhesive tape (A=500 mm / B=200 mm).

Actuate windscreen washer system.

Contact points (1) must be in tolerance range (2).

If necessary, adjust left or right washer jet (1) by way of screw (2).

NOTE: If necessary, remove adhesive residue from windscreen.

Fill up with washer fluid.

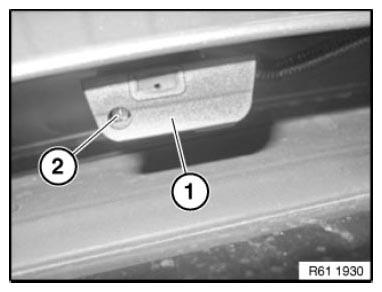

Fig 2: Identifying Washer Jet And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
