Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | On left rear of engine compartment. |

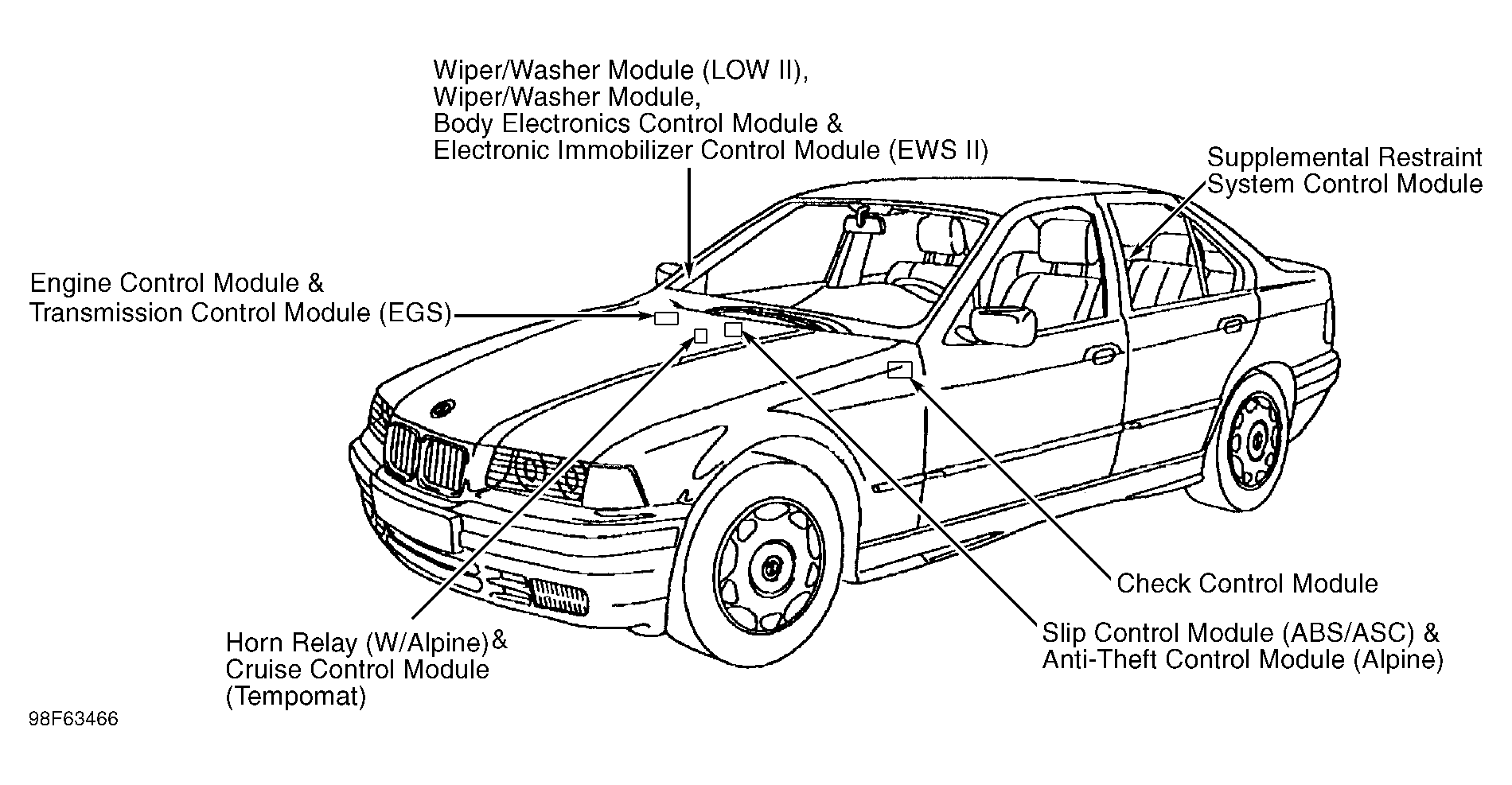

| Anti-Theft Control Module (Alpine) | Behind glove box. See Figure. |

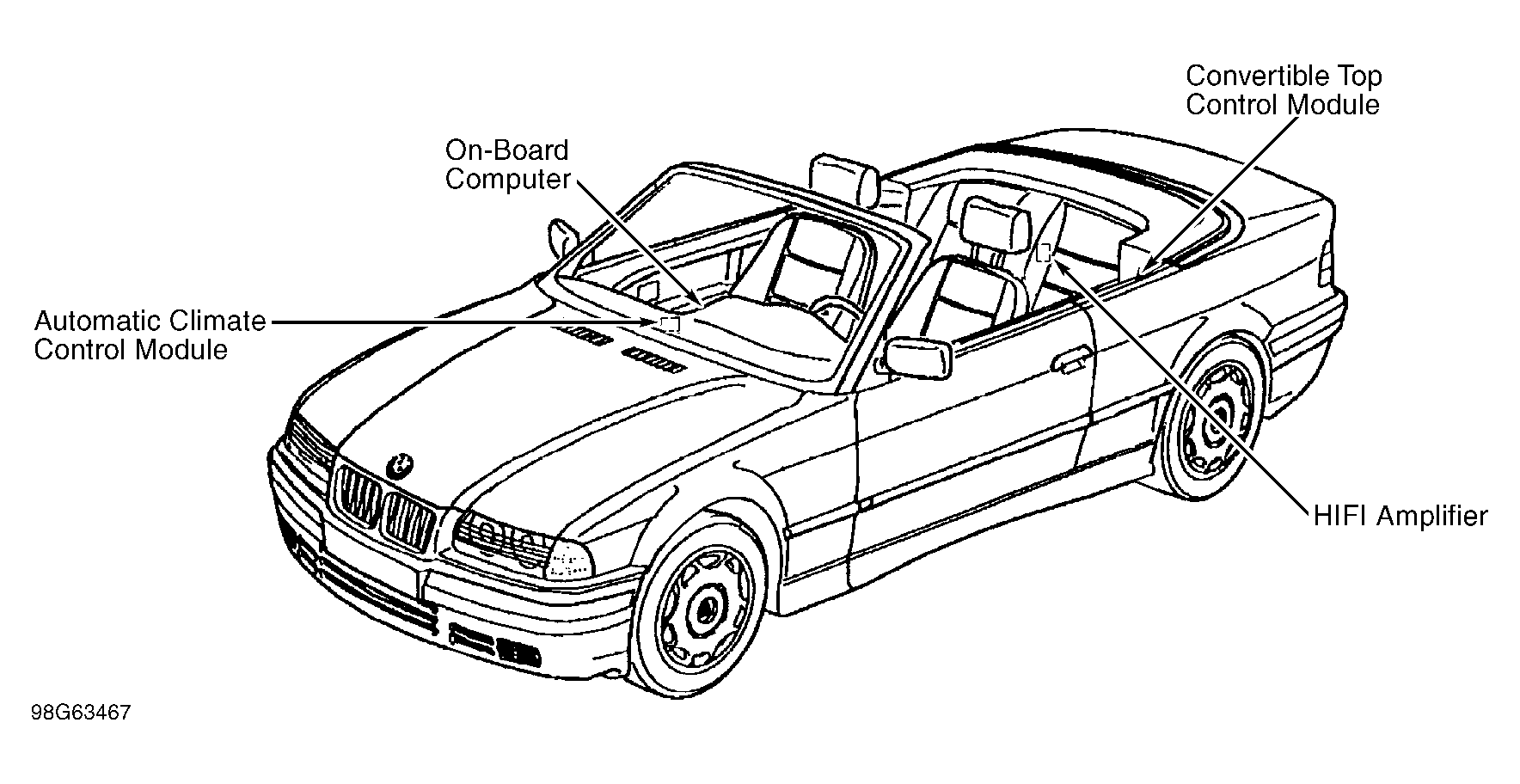

| Automatic Climate Control Module | Behind center console. See Figure. |
| Body Electronics Control Module | Behind glove box. See Figure. |
| Check Control Module | Under left side of dash. See Figure. |
| Chime Module | Below left side of dash. |
| Convertible Top Control Module | On lower left "C" pillar behind side panel. See Figure. |
| Crash Control Module | On relay panel, under left side of dash. See Figure. |
| Cruise Control Module (Tempomat) | Under right side of dash, behind glove box. See Figure. |
| Day Light Relay Module | On relay panel, under left side of dash. See Figure. |
| Electronic Immobilizer Control Module (EWS II) | Under right side of dash, behind glove box. See Figure. |
| Engine Control Module | On right rear corner of engine compartment. See Figure. |
| Final Stage Unit | Behind left side of dash. |
| On-Board Computer | On center console. See Figure. |
| Relay Module | Behind glove box. |
| Slip Control Module (ABS/ASC) | Under right side of dash, behind glove box. See Figure. |
| Sun Roof Control Assembly | Under roof center panel. See Figure. |
| Supplemental Restraint System Control Module | Under rear seat. See Figure. |
| Transmission Control Module (EGS) | On right rear corner of engine compartment. See Figure. |
| Transmitter Module (EWS II) | On right side of steering column. |
| Wiper/Washer Module | Behind glove box. See Figure. |
| Wiper/Washer Module (LOW II) | Behind glove box. See Figure. |
