Power Windows

Power window operation has changed with the addition of the central power window switch located in the console between the window switches on the left side. The central switch allows all four windows to be opened with one touch operation or closed if the switch is held.

The balance of the window switches allow one touch operation for opening. The driver's window switch is the only one touch close switch due to the elimination of the anti-trap protection feature.

The power windows are also opened when the top is lowered for approximately 1.5 seconds to ensure clearance when the top is lowered into the storage compartment. If the top switch is held after opening, the windows will close again.

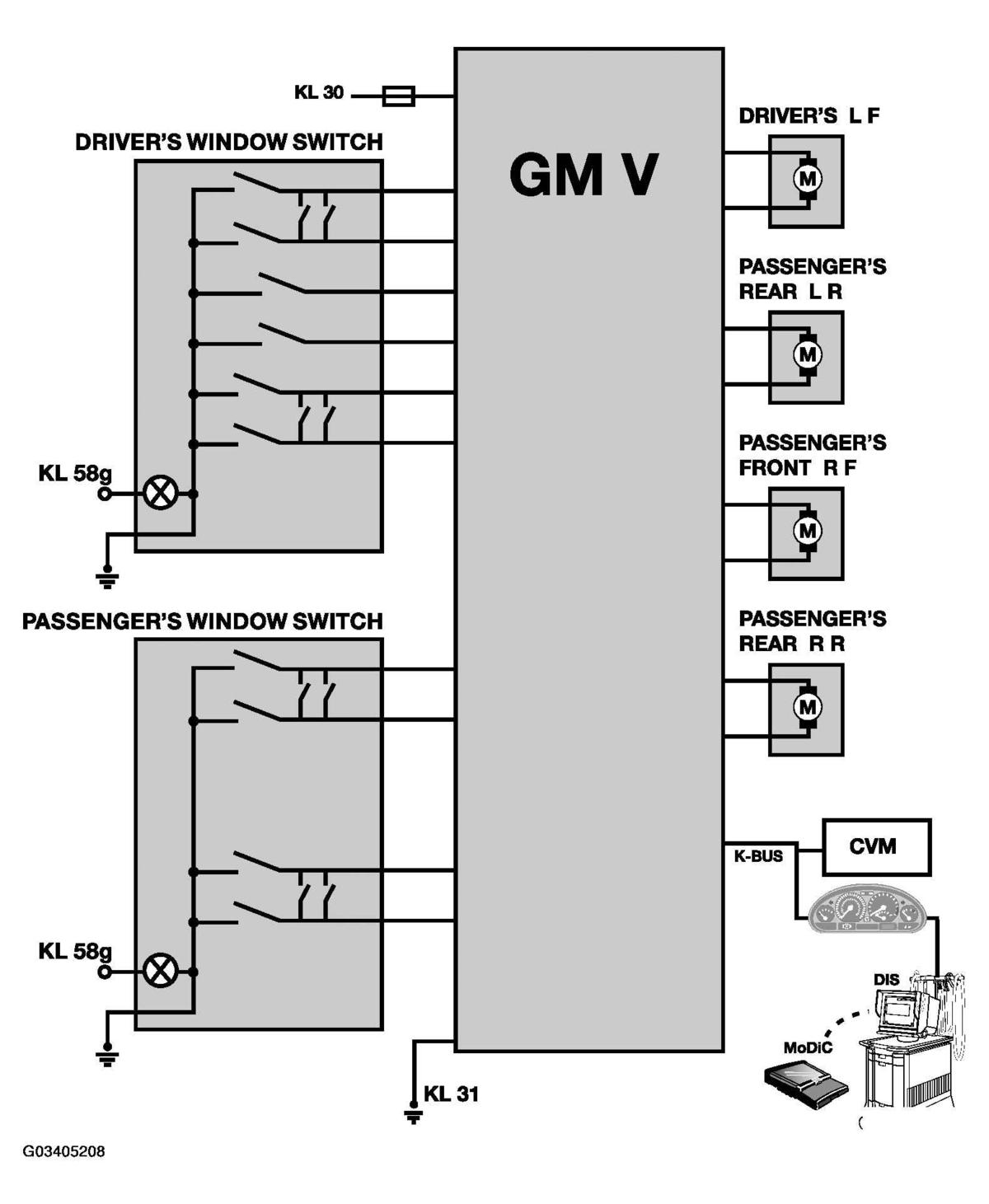

Fig 1: Identifying Power Windows Diagram
G03405208
