Injector Control

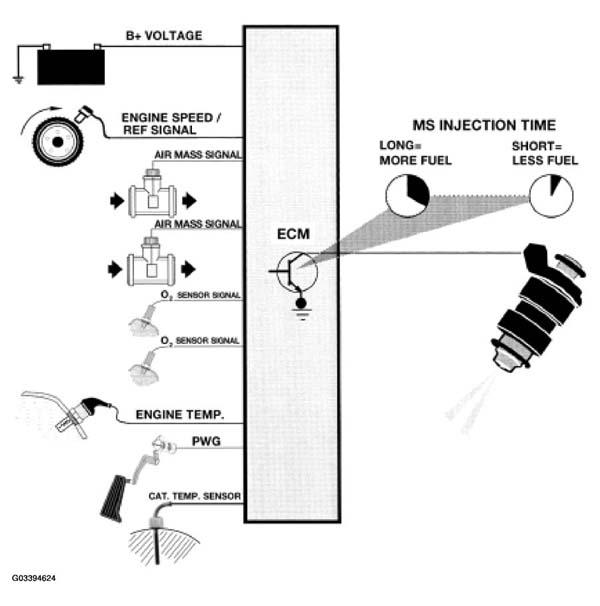

The MS S52 control module calculates the correct injection time based on the control parameters of:
- Engine speed
- Air mass
- Throttle position
- Oxygen Sensor feedback signal
- Engine coolant
- Barometric pressure
- Battery voltage
- Catalyst Temperature Sensor
The injectors receive operating power from the main relay and the control module provides the ground for the duration of the injection time (MS value).
