Cylinder Leakage Testing: Notes
Once a problem cylinder is detected via a compression test or by other means, a cylinder leakage test is used to pinpoint the problem area.
The leakage test uses a gauge and compressed air to indicate the percentage of air loss. By listening and observing at key points, the problem can be narrowed down before the engine needs to be disassembled.
The piston (one or more) should be brought to TDC, compressed air should be introduced into the cylinder using the cylinder leakage tester. Be sure the engine does NOT rotate, if the engine rotates, the engine was not at true TDC.
Check the gauge on the tester, it should read in percentage of leakage. Check the engine specification for permissible leakdown. A general rule of thumb is 15 % or less for a good cylinder. However, some engine have a tighter tolerance. Most BMW engines should be at 8 % or less.
If any cylinder shows excessive leakdown, check for leakage by listening or observing the following points:
- Listen for air (hissing) at the tailpipe. This would indicate leakage at the exhaust valves on that cylinder.

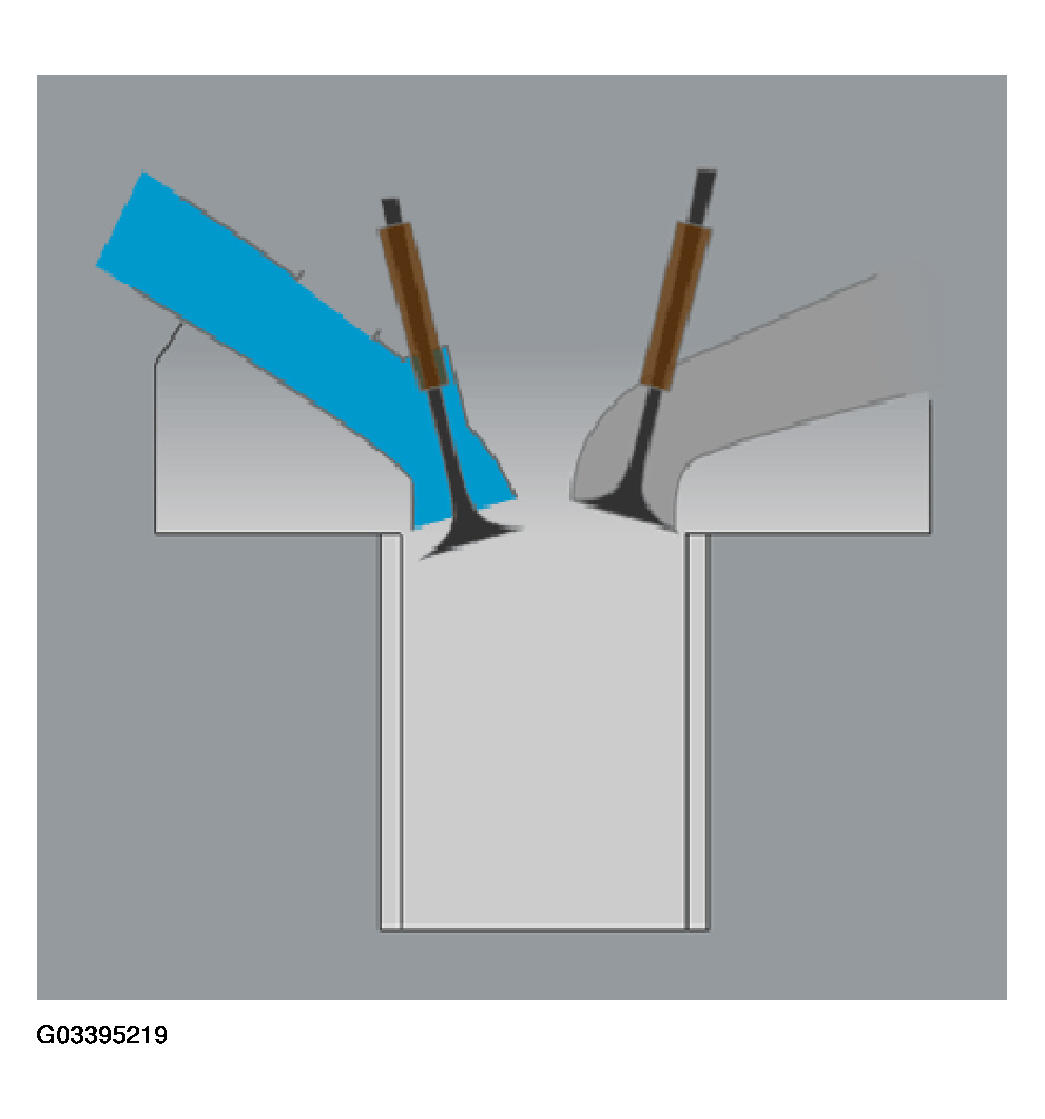

- Listen for air (hissing) at the throttle. This would indicate leakage at the intake valves on that cylinder. (Be sure throttle is wide open and listen at throttle opening)
- Open the oil cap and listen for air. This would indicate air leakage into the crankcase. This would be piston rings or cylinder bore concerns.
- Observe the coolant reservoir and or remove the radiator cap. Bubbles in the coolant would most likely indicate head gasket leakage or cracked block/head.
