Technical Data: Tachometer

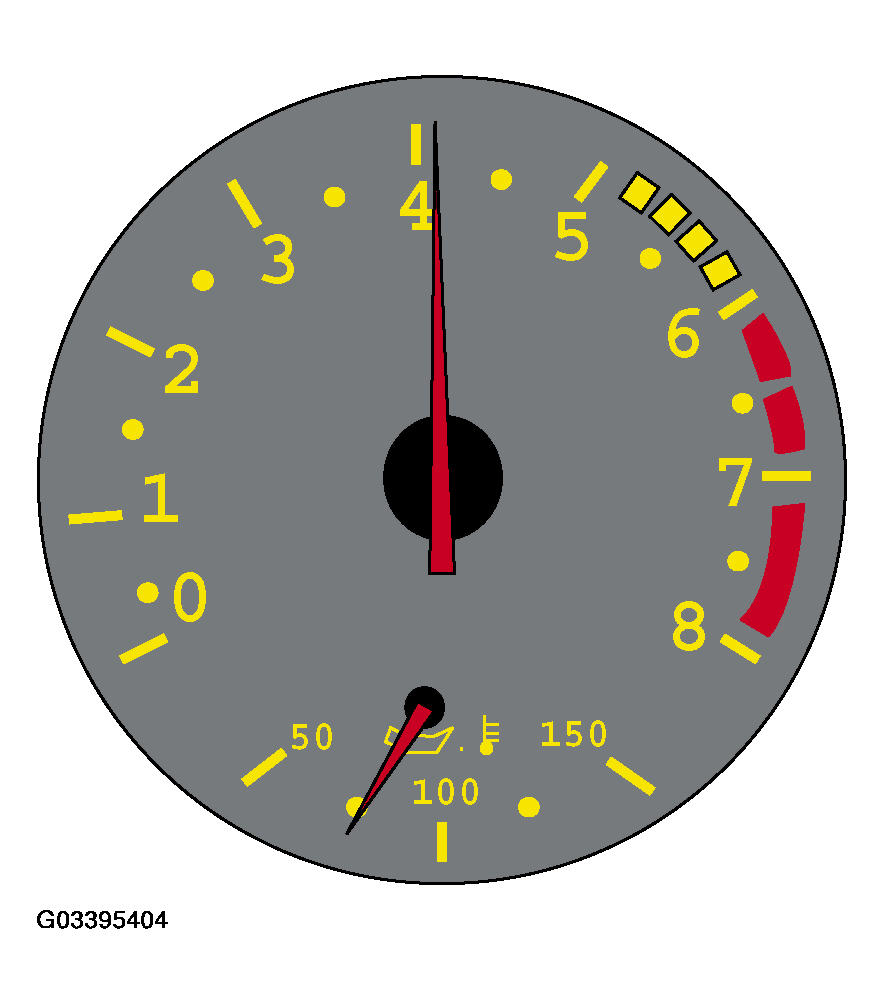

The tachometer incorporates a warm up RPM warning through the use of LEDs. Starting at 4000 RPM, orange LEDs are illuminated with a cold engine start up. The LEDs will go out, in 500 RPM increments, as the engine warms up. the last orange LED at 6500 RPM will remain illuminated. The MS S52 engine control system monitors the engine oil temperature and signals the instrument cluster over the CAN line for illumination of the LEDs.
