Check Control Display

The check control display is used to show the operating status of the RDW system. The displays are as follows:

• "TIRE PRESSURE FAILURE" - (with an acoustic warning) this display will remain active until the ignition is switched OFF.
• "TIRE PRESSURE SET" - Will be displayed when the system is put into the initialization mode.
• "TIRE MONITORING INACTIVE" - Will be displayed when the system is manually switched OFF or there is a system fault.

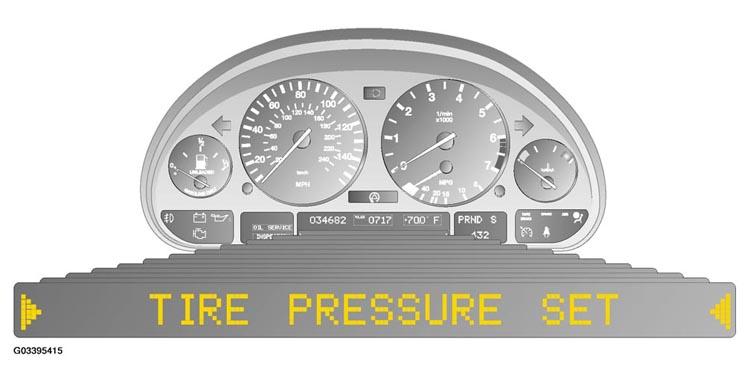

  Fig 1: Tire Pressure Check Control Display Indicators

  Courtesy of BMW OF NORTH AMERICA, INC.
