Transmission Support Fixture (04 15 07)

Publication date: 2007-08-01
Reference number: 04 15 07

TRANSMISSION SUPPORT FIXTURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 15 07, Date of Issue: August, 2007

BMW:	All
GROUP:	04 - Tools and Equipment

SUBJECT

Transmission Support Fixture

SITUATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC.

Transmission Support Fixture

Order PN 83 30 0 495 446

Cartool 240 200

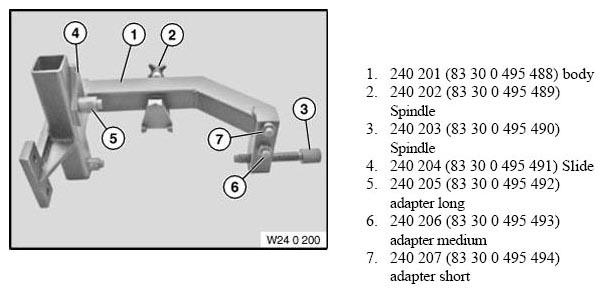

Fig 1: Transmission Support Fixture

Used to support all manual and automatic transmissions in conjunction with assembly stand 001 450 or 002 300. This special tool supersedes tool PN 240 180 (83 30 0 491 652).

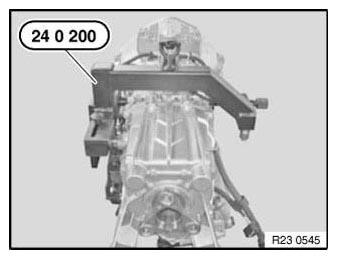

Fig 2: Transmission With Support Fixture Installed

Rear Axle Support Fixture

Order PN 83 30 0 495 866

Cartool 335 180

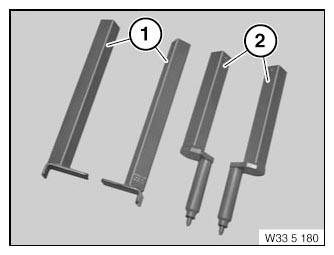

Fig 3: Rear Axle Support Fixture

Used in conjunction with 002 030 (83 30 0 490 133) and 002 040 (83 30 0 490 135) to support the E70 rear axle during R & R. Refer to Repair Manual section 33 31 503.

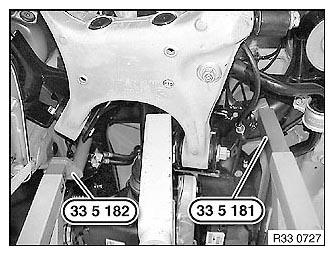

Fig 4: Supporting Rear Axle Using Support Fixture
