BMW Accessory Navigation System Speed Input Signal (84 08 00)

BMW ACCESSORY NAVIGATION SYSTEM SPEED INPUT SIGNAL

TECHNICAL SERVICE BULLETIN

SUBJECT

E39 - BMW Accessory Navigation System Speed Input Signal

SITUATION

During the installation of the BMW Accessory Navigation System into E39 vehicles, the speed signal input (male pin # 3 in the connector X322) cannot be found.

CAUSE

Since July of 1999 production, the separate speed signal (Speed-A) output harness has been eliminated from series production. The speed information is now made available to the connected control modules in the form of a telegram via the body bus (K-bus). By design, the Accessory Navigation System is not capable to extract speed signal information from the K-Bus.

CORRECTION

When installing the BMW Accessory Navigation System into E39 vehicles manufactured after 06/99, the Speed-A signal wire has to be fitted between the instrument cluster (pin # 3 of the 18-pin connector X10113 for the IKE, or pin # 14 of the 26-pin connector X11176 for the Kombi) and pin number 3 of the X322 connector (located in the rear left corner of the trunk).

Such a modification is not covered by the BMW New Car Limited Warranty.

PROCEDURE

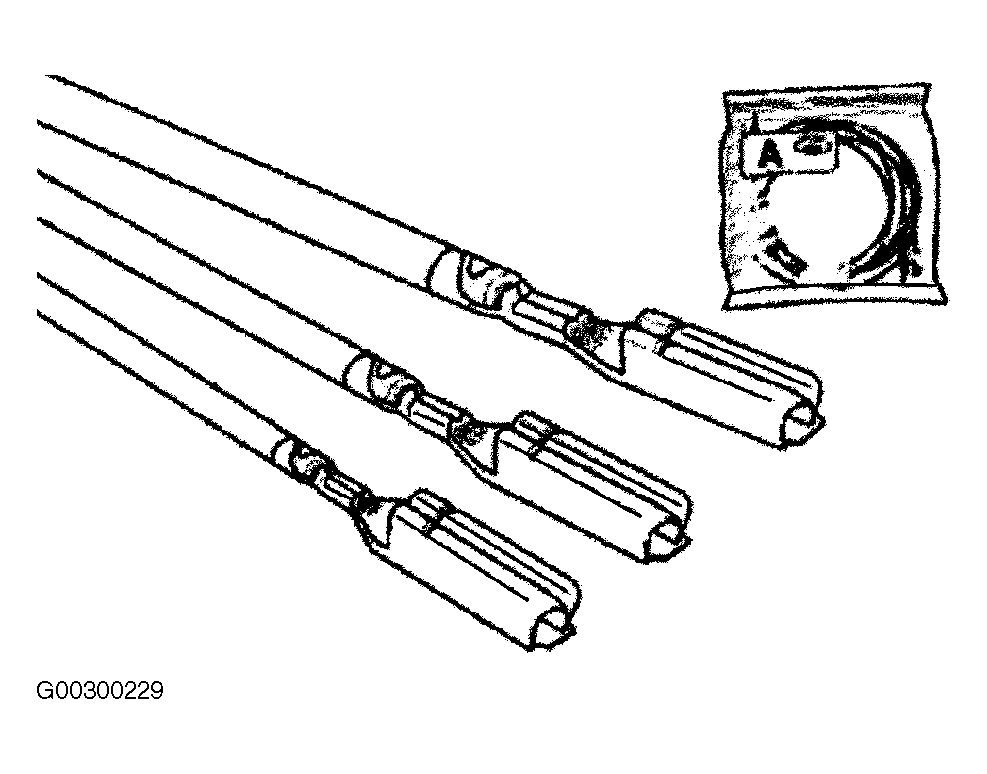

For the Speed-A signal adapter harness use one of the wires from the Airbag Repair Cable (P/N 61 12 8 386 368) and the male socket connector P/N 61 13 0 007 452.

1. Cut through the single wire from the Airbag Repair Harness, at the length of 12 feet, starting from the female Siemens connector. See Fig 2 .
   Fig 2: Cutting Airbag Repair Harness Wire

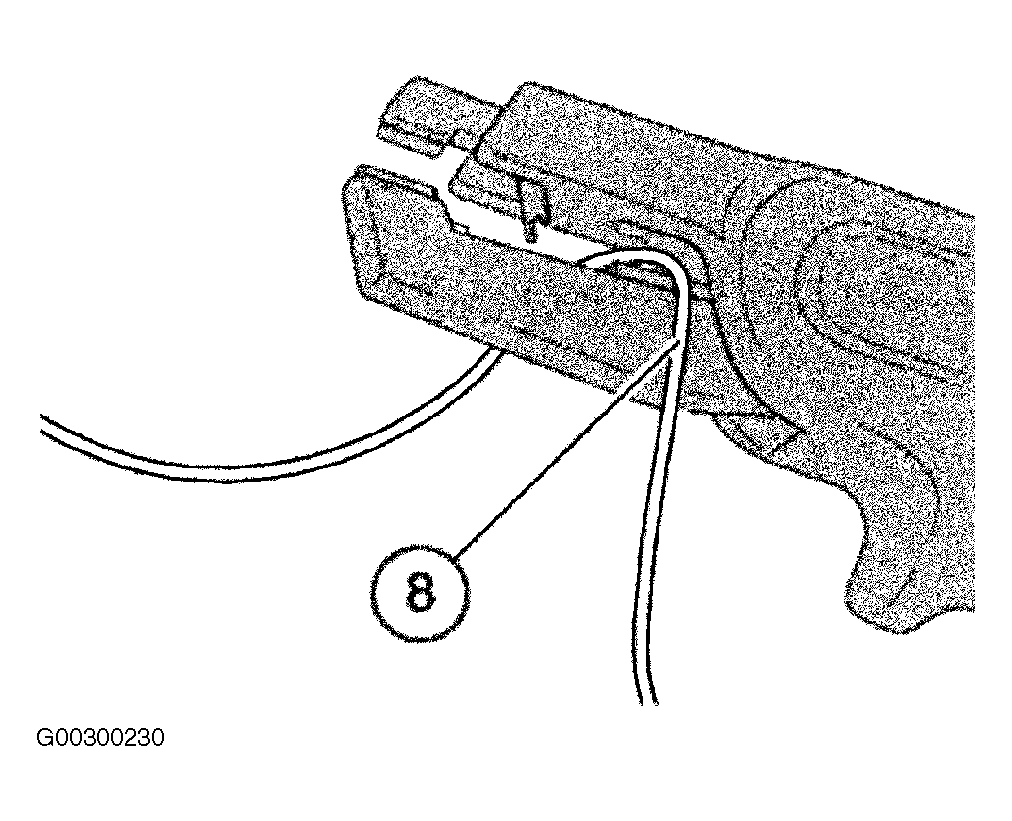

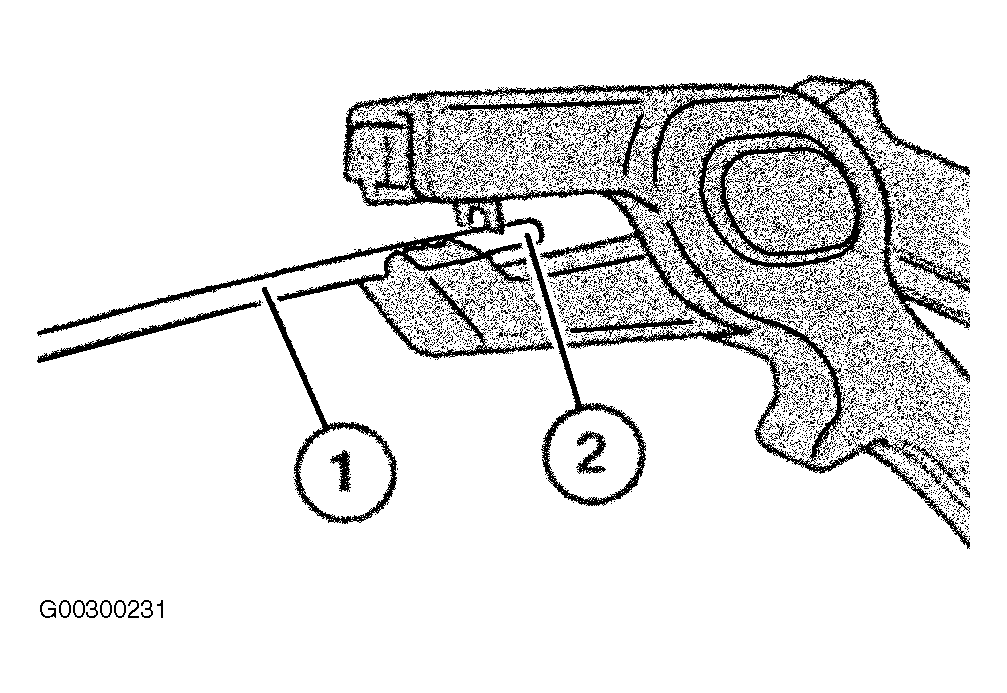

2. Strip off insulation at the end of the cut wire (stripped length 4.5 mm), and crimp the male socket connector P/N 61 13 0 007 452. See Fig 3 . Use the appropriate crimping tool e.g. pliers with die block P/N 61 9 041 found in the Electric Repair Kit IV P/N 61 9 020.
   Fig 3: Stripping Wire Insulation


3. Remove the instrument cluster. Refer to Repair Manual RA 62 11 200.

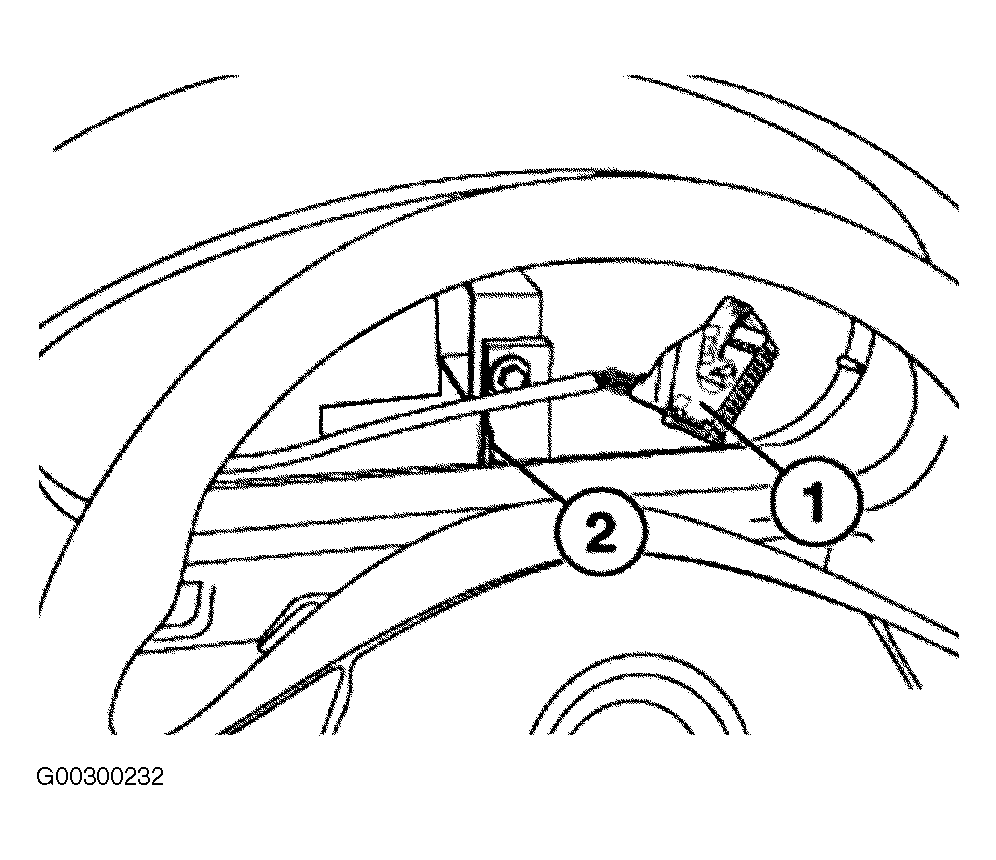

   Find connector (1, Fig 4 ):

   • X10113 (18-pin natural) on vehicles with IKE, or
   • X11176 (26-pin natural) on vehicles with low cluster
   Fig 4: Connector Location Behind Instrument Cluster

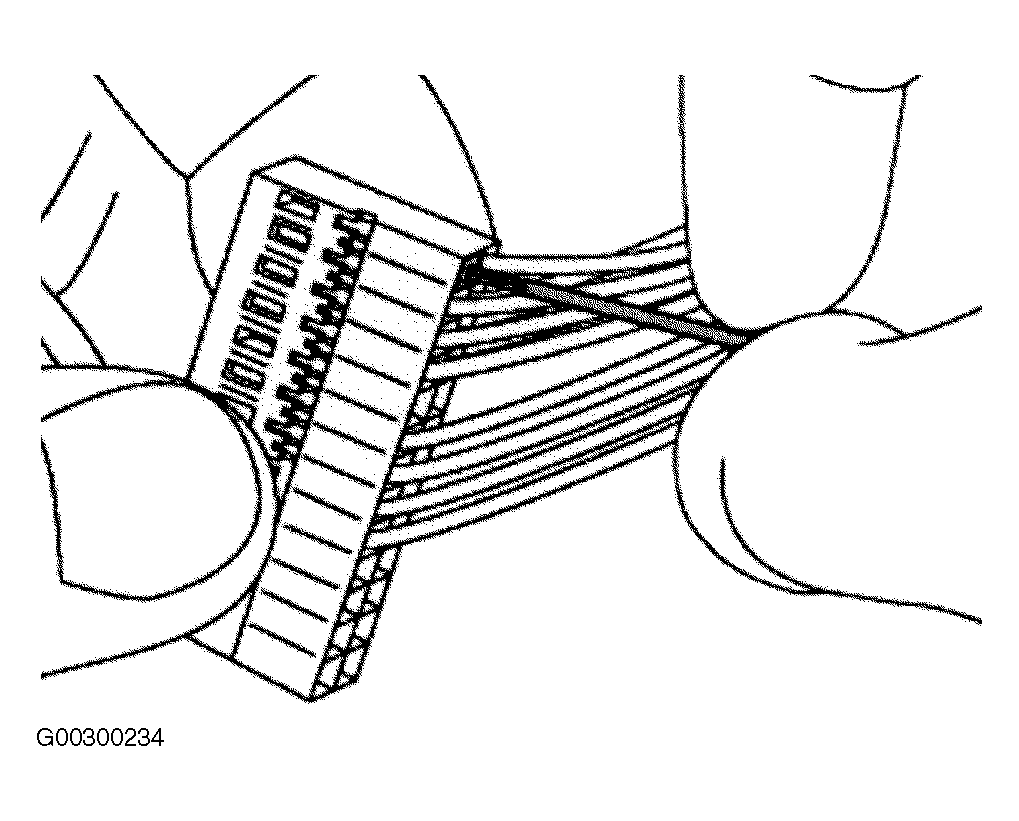

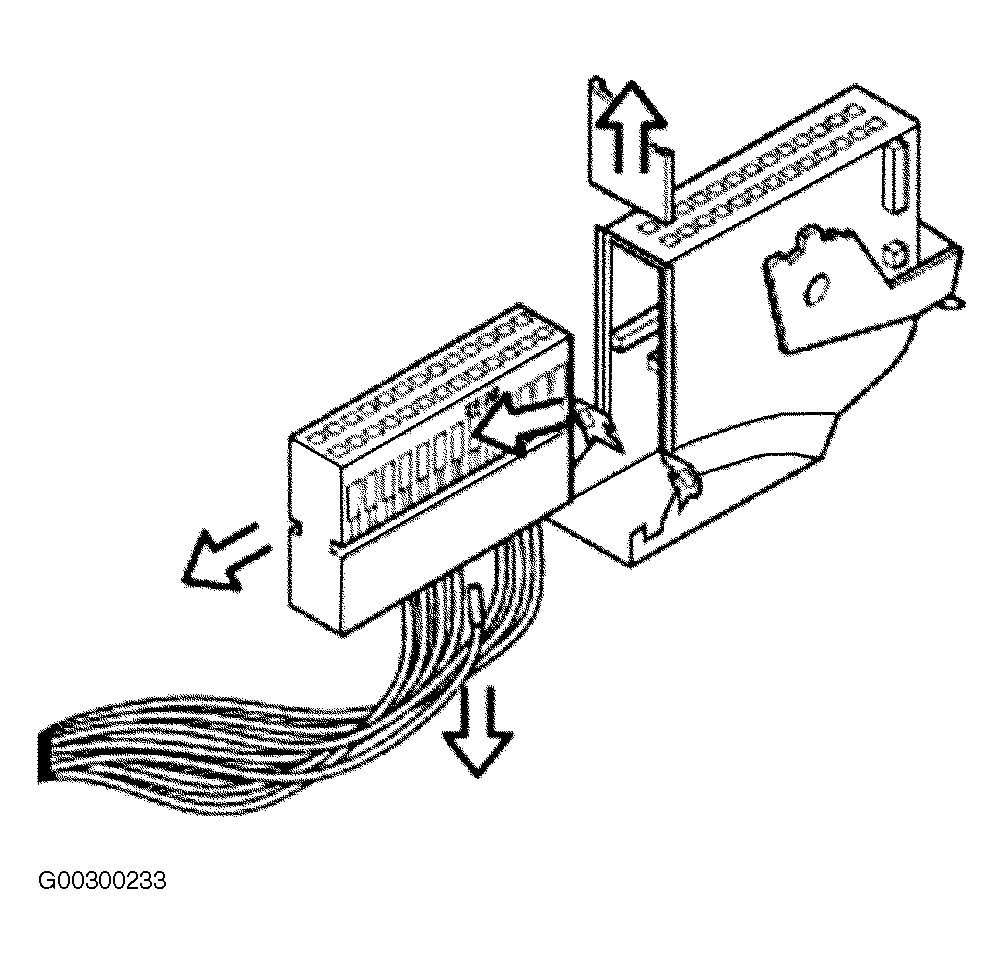

4. Disassemble the connector by removing the locking tab (sliding it upwards), and then removing the housing assembly as shown in Fig 5 .
   Fig 5: Disassembling Connector


5. Insert female Siemens connector of the adapter harness into the slot number:
   • 3 of connector X10113 (IKE), or
   • 14 of connector X11176 (Kombi).
   Fig 6: Inserting Adapter Harness Into Connector

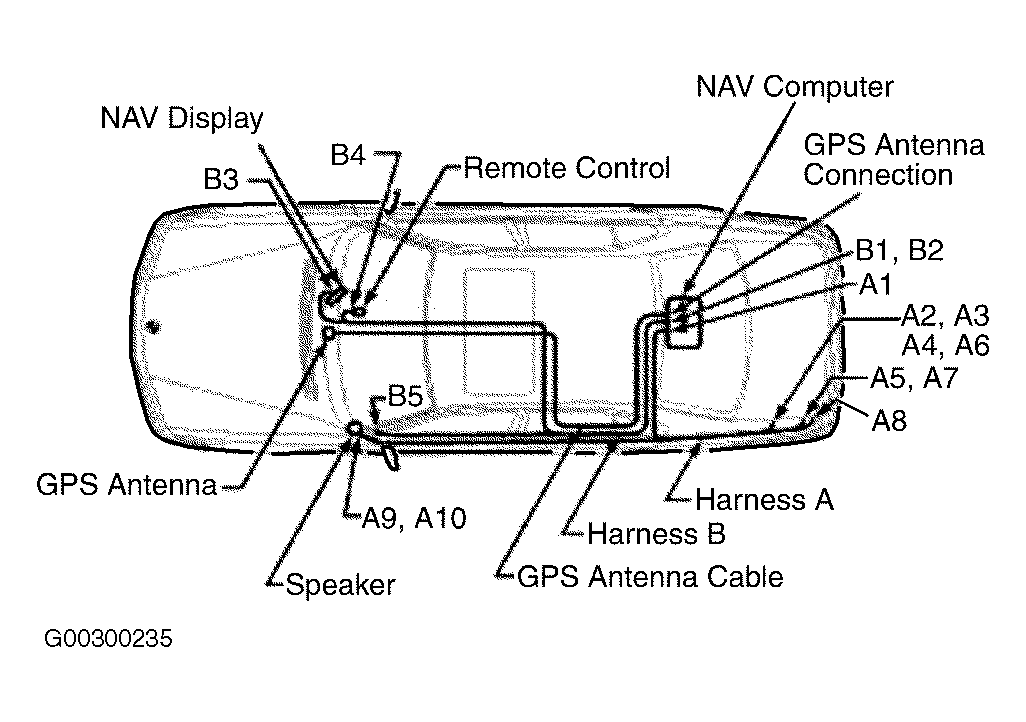

6. Route the Speed-A signal adapter harness along the Accessory Navigation Harness A, as shown in Fig 7 . (for routing details refer to Accessory Navigation Installation Instruction P/N 01 21 9 790 598)
   Fig 7: Adapter Harness Routing

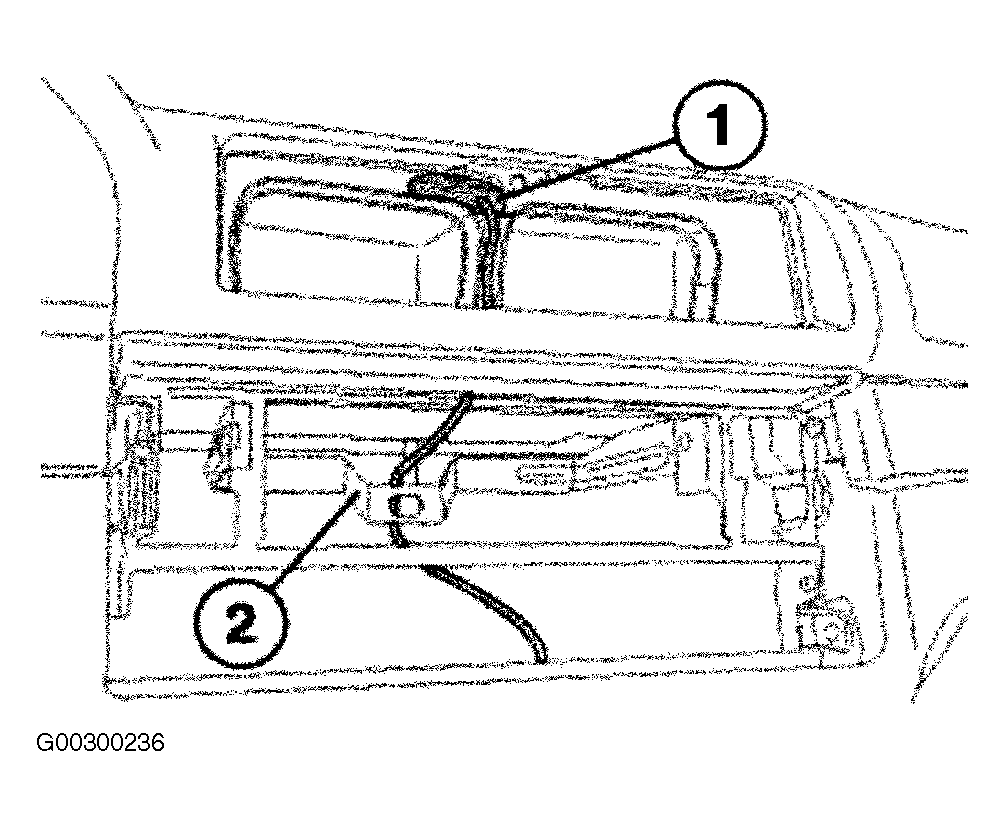

7. Route the adapter wire to the right, towards the air vent pipe, and then down the rear center of the dash, behind the radio mounting bracket (2). See Fig 8 .
   Fig 8: Adapter Wire Routing In Dash

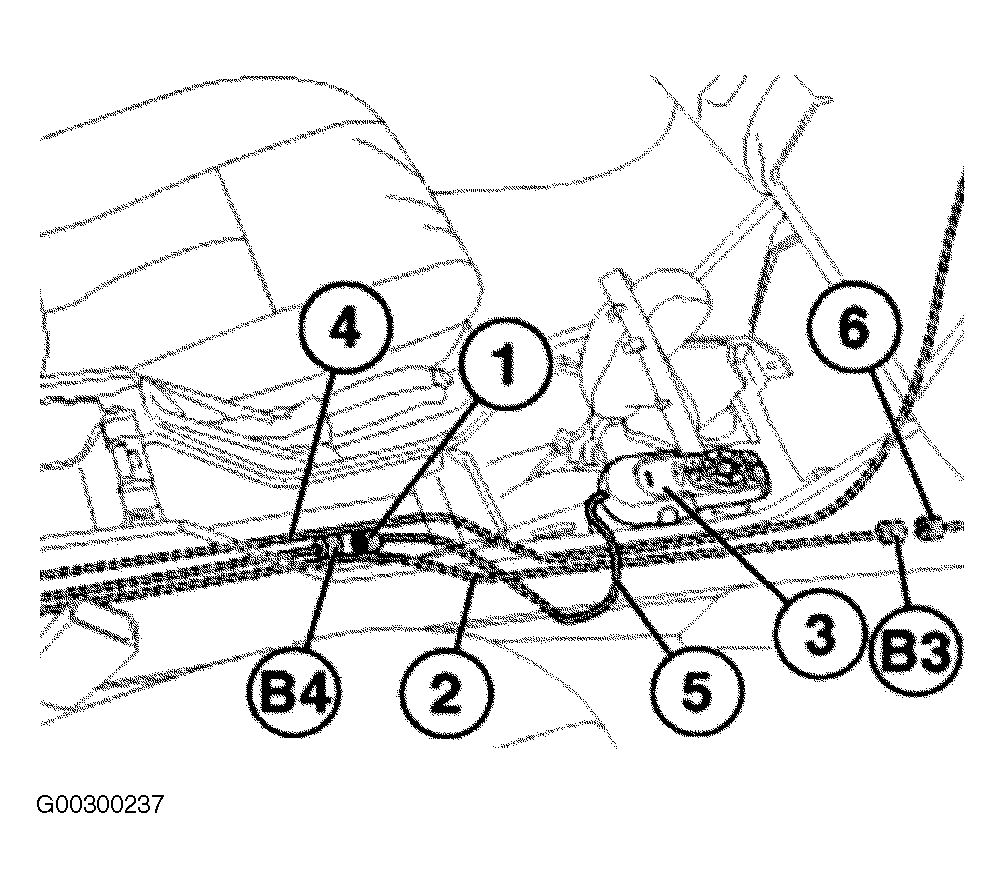

8. Route the speed signal adapter wire (4) down and back toward the rear compartment going through the center console following the route of harnesses B3 and B4. Then continue over the transmission tunnel, to the rear seat area and finally out to the trunk going through the grommet. See Fig 9 .
   Fig 9: Adapter Wire Routing Through Center Console

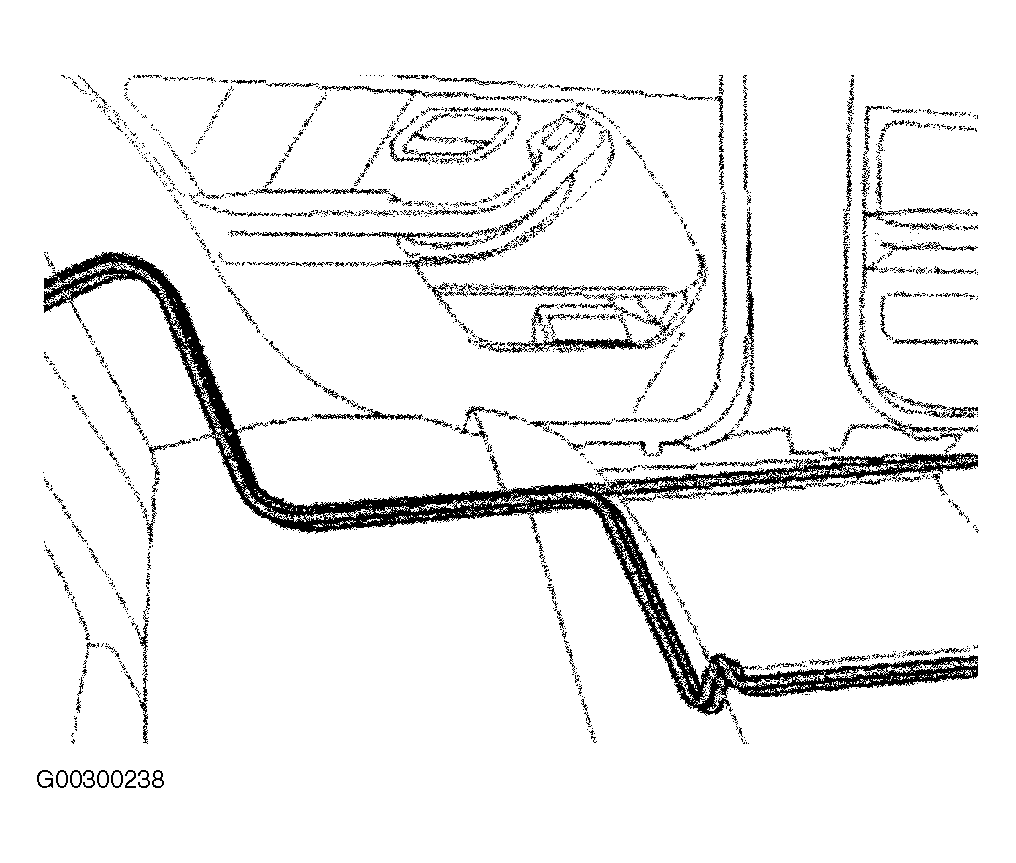

9. Route the speed signal adapter wire with harness branches A9, B3 and B4 under the carpet from the back of the center console to the top LH edge of the transmission tunnel. Then route cables along the bottom edge of the rear seat, finally under the rear seat towards the trunk. See Fig 10 .
   Fig 10: Adapter Wire Routing Towards Trunk

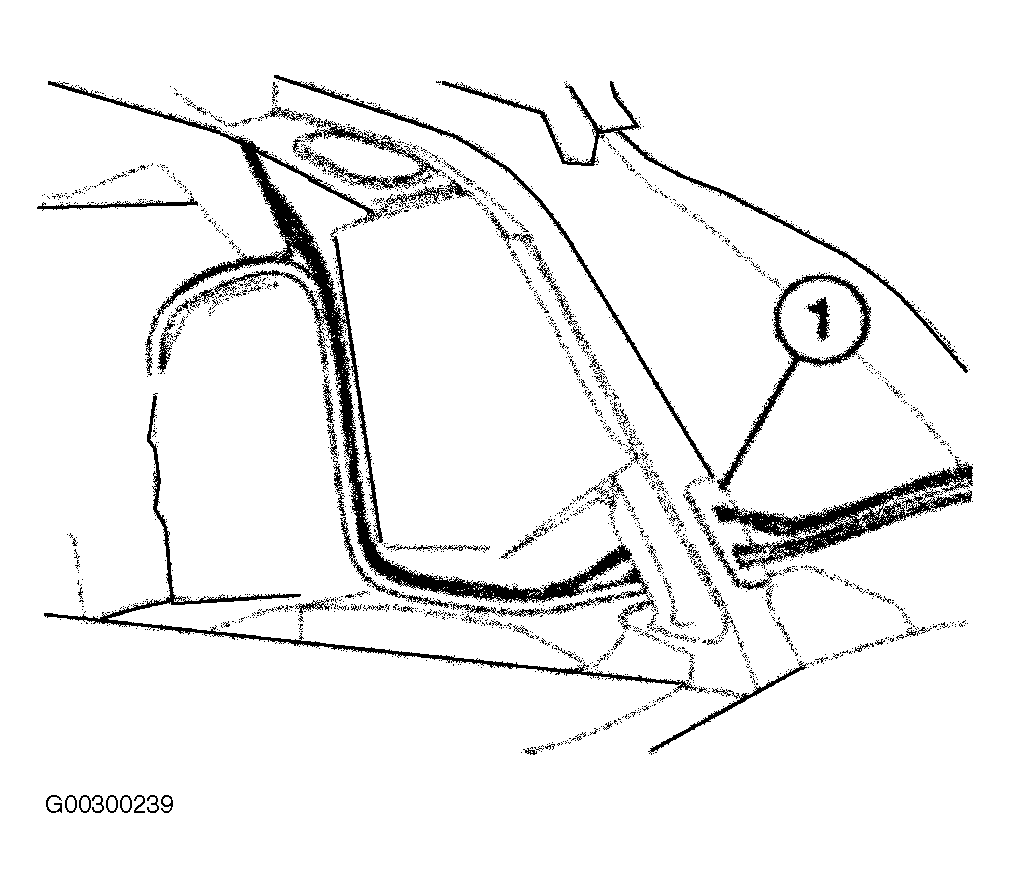

10. Route the harness into the trunk through the grommet (1), towards connector X322. See Fig 11 .
    Fig 11: Harness Routing Into Trunk

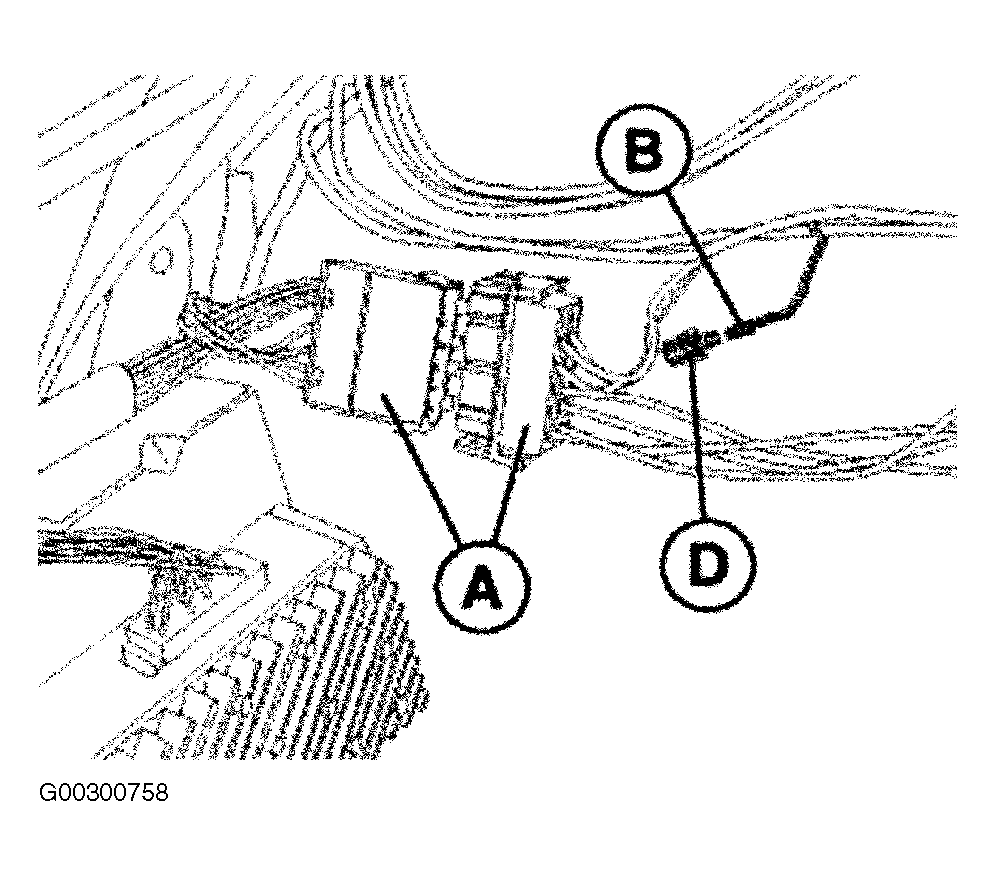

11. Locate connector X322 (A) that is mounted behind the radio amplifier bracket, in the left trunk corner. Detach the connector from the bracket and disassemble connector's housing. See Fig 12 .
    Fig 12: Disassembling Connector X322

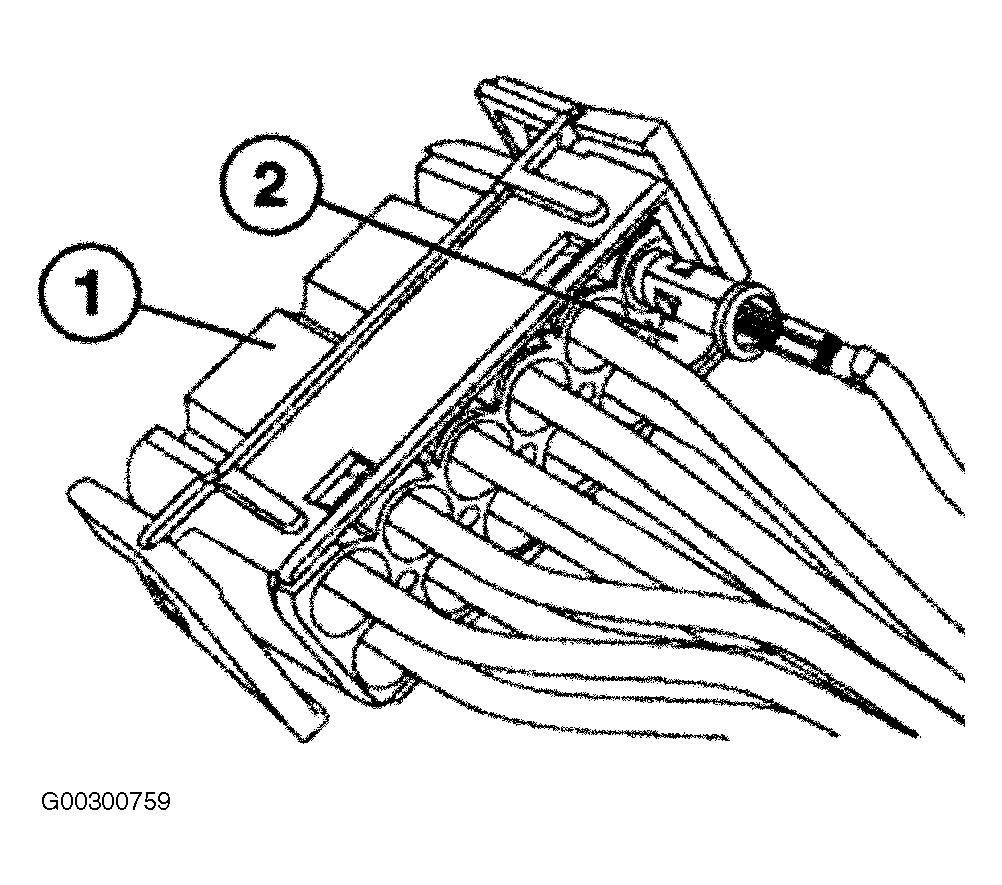

12. Insert the male pin socket (2) from the speed signal adapter harness into slot number 3 of connector X322 (1). See Fig 13 .
    Fig 13: Inserting Adapter Harness Into Connector X322


13. Proceed with the other installation steps for BMW Accessory Navigation System.

PARTS INFORMATION

Part Number	Description	Qty.
61 13 0 007 452	Male pin	1
61 12 8 386 368	Repair cable	1

WARRANTY INFORMATION

For information only. Additional cost of parts and labor incurred during this procedure should be charged to the customer.
