Basic Suspension Geometry: Caster: Notes

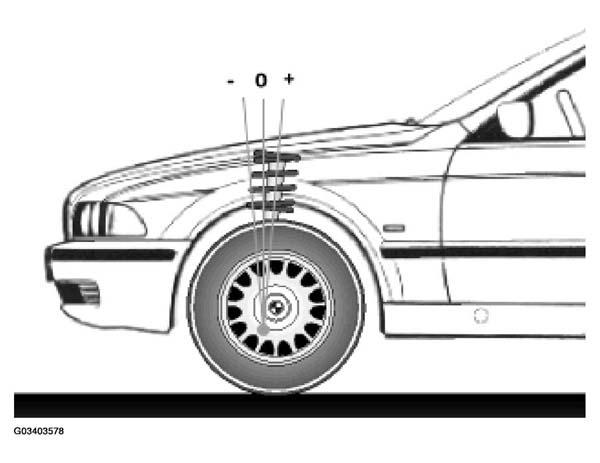

Caster is the forward or rearward tilt of the steering axis centerline, as viewed from the side of the vehicle, and is measured in degrees from a vertical. It is a directional control geometry angle that helps keep the vehicle moving straight ahead.
If the steering axis is tilted rearward, it is called "Positive Caster". A forward tilt is called "Negative Caster".
On BMW vehicles, Caster is always positive. Positive Caster increases stability at high speeds. Positive Caster also causes increased steering effort at low speeds. Systems such as Servotronic help minimize this negative effect. In addition to increased high speed stability, cornering is enhanced and steering wheel returnability is improved by positive Caster.
Caster is measured in degrees. On BMW vehicles, Caster is a non-adjustable angle. But Caster is influenced by damaged suspension components. When performing a wheel alignment, always check Caster to insure there is no hidden damage.
