Rear (E46)

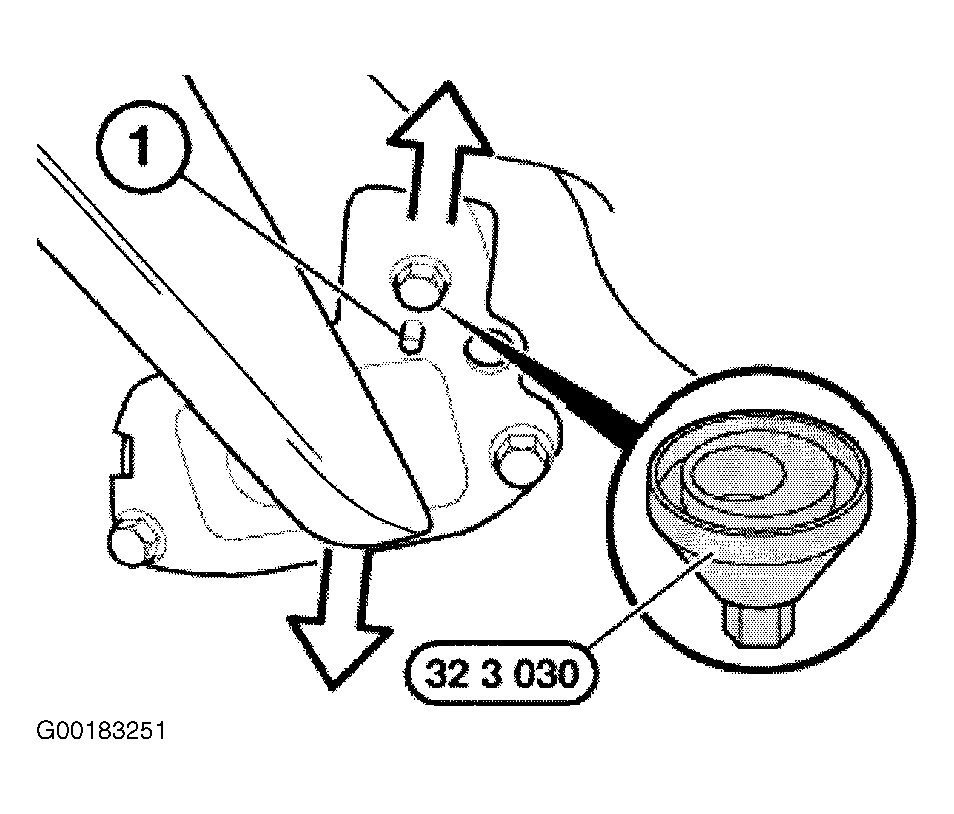

  1. Release screws approximately 1 1/2 turns at bearing pedestal. Attach special tool (32 3 030) to screw head and to notch (1). See Figure.
  2. Turn special tool and adjust toe-in to specification. See E46  under WHEEL ALIGNMENT SPECIFICATIONS.
  3. Tighten screws at bearing pedestal to specification. See E46  under TORQUE SPECIFICATIONS.
