Door Trim Panel (Front): Installation

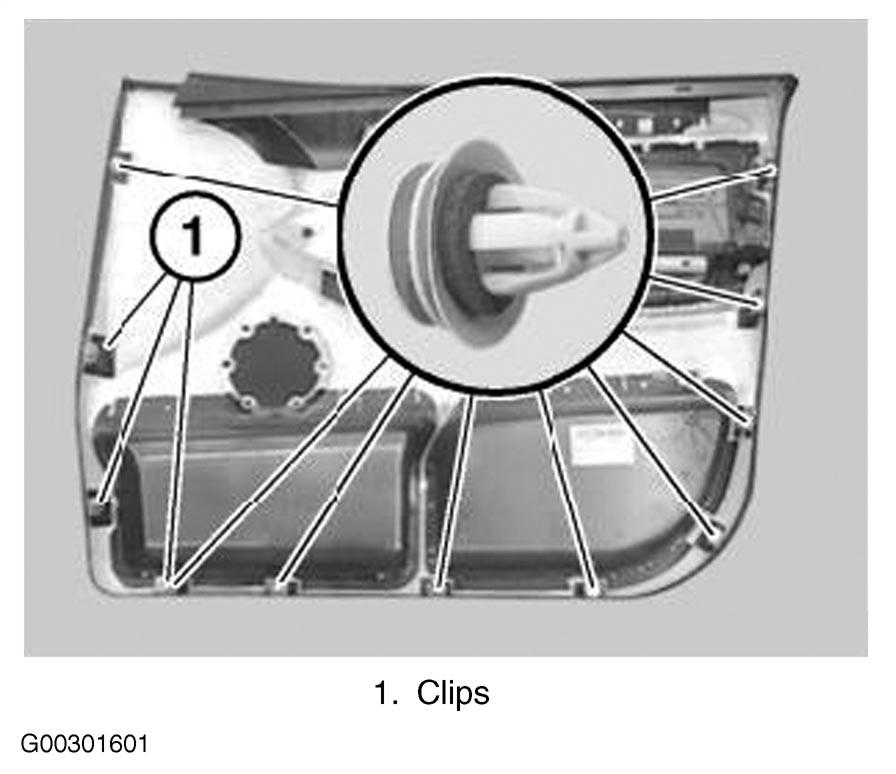

To install, reverse removal procedure. Bend open retainers on inner door plate for accommodating central clip. Press unlocking lever on door trim panel. Clips (1) shown in illustration are Gray and are longer than remaining clips, which are White. See Fig 1 . Install all clips with sealing ring. If necessary, replace faulty clips. After assembling the door trim panel open door window and car with lock with vehicle key. Check whether safety button linkage can move freely. If necessary, align linkages.
