Wiring Diagrams

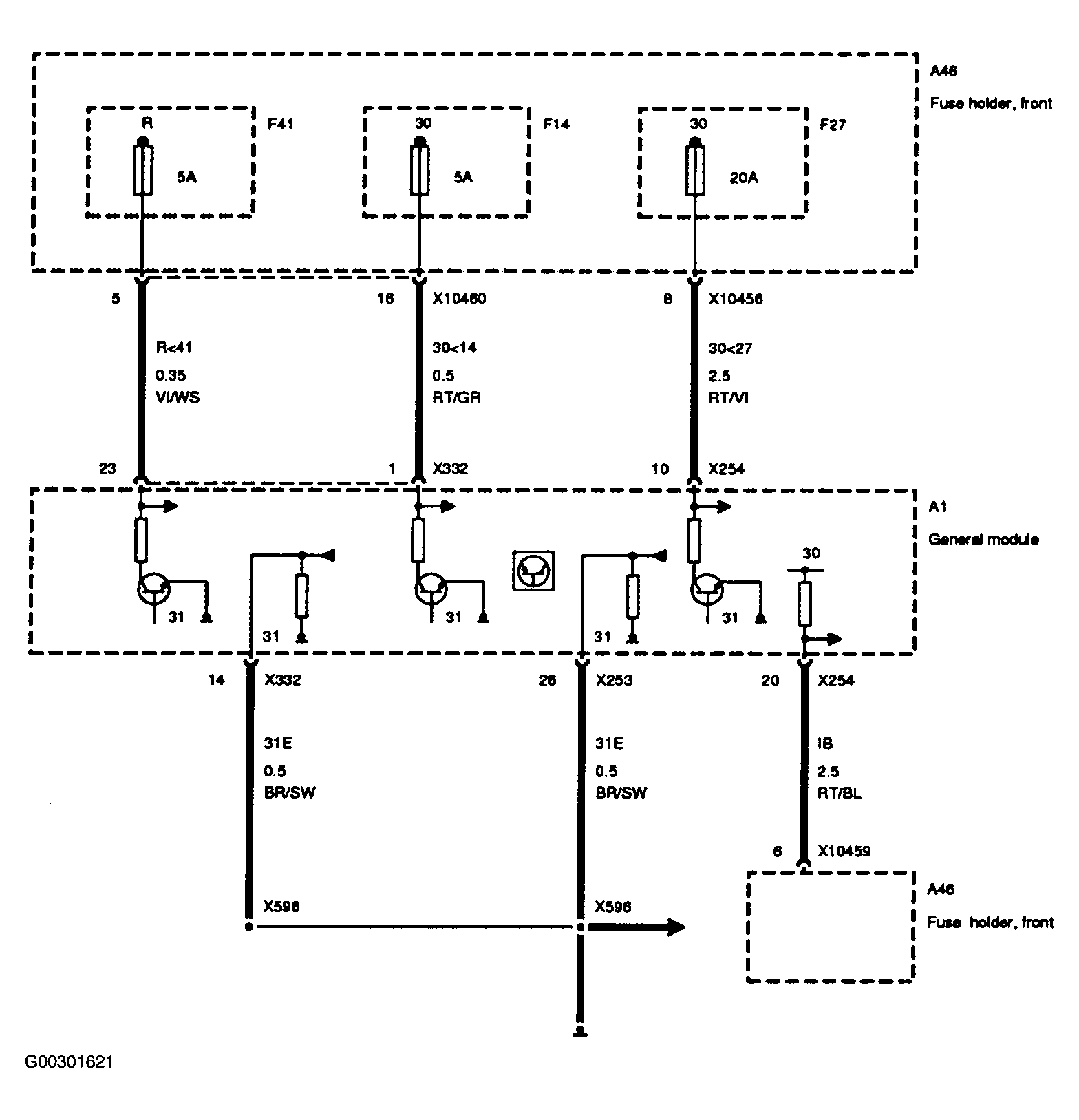

Fig 1: Power Window Power Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

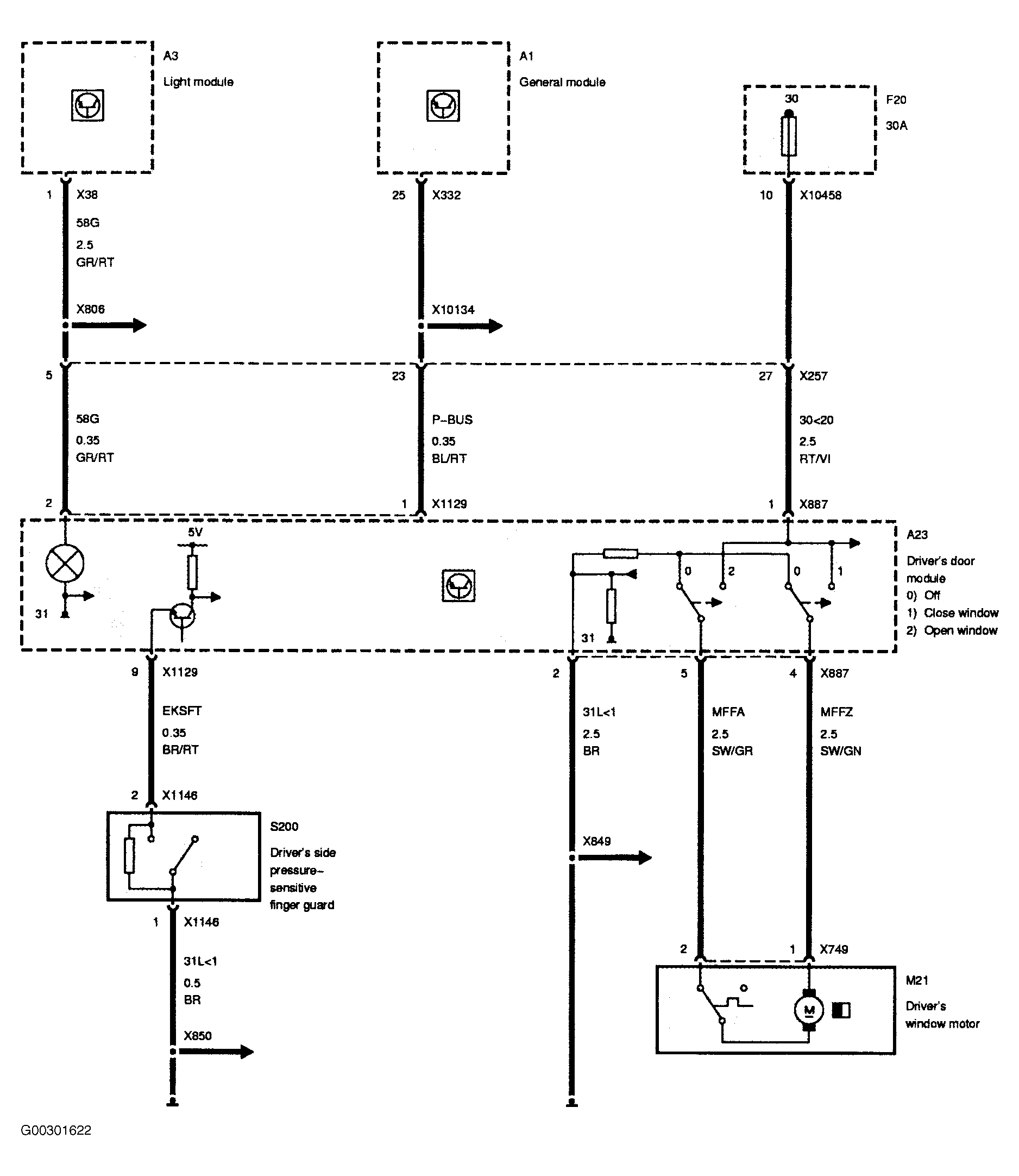

Fig 2: Power Window Front Driver-Side Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

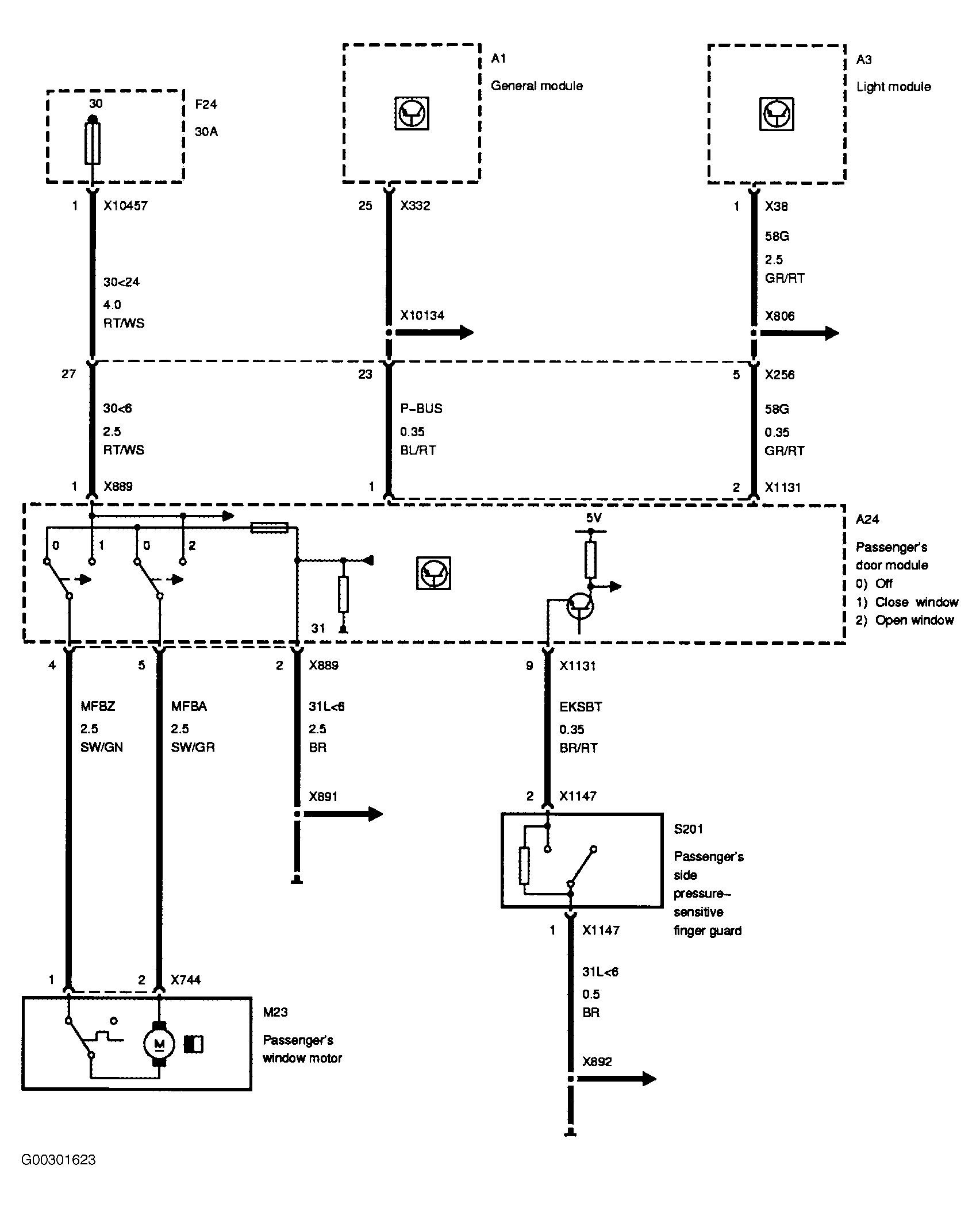

Fig 3: Power Window Front Passenger-Side Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

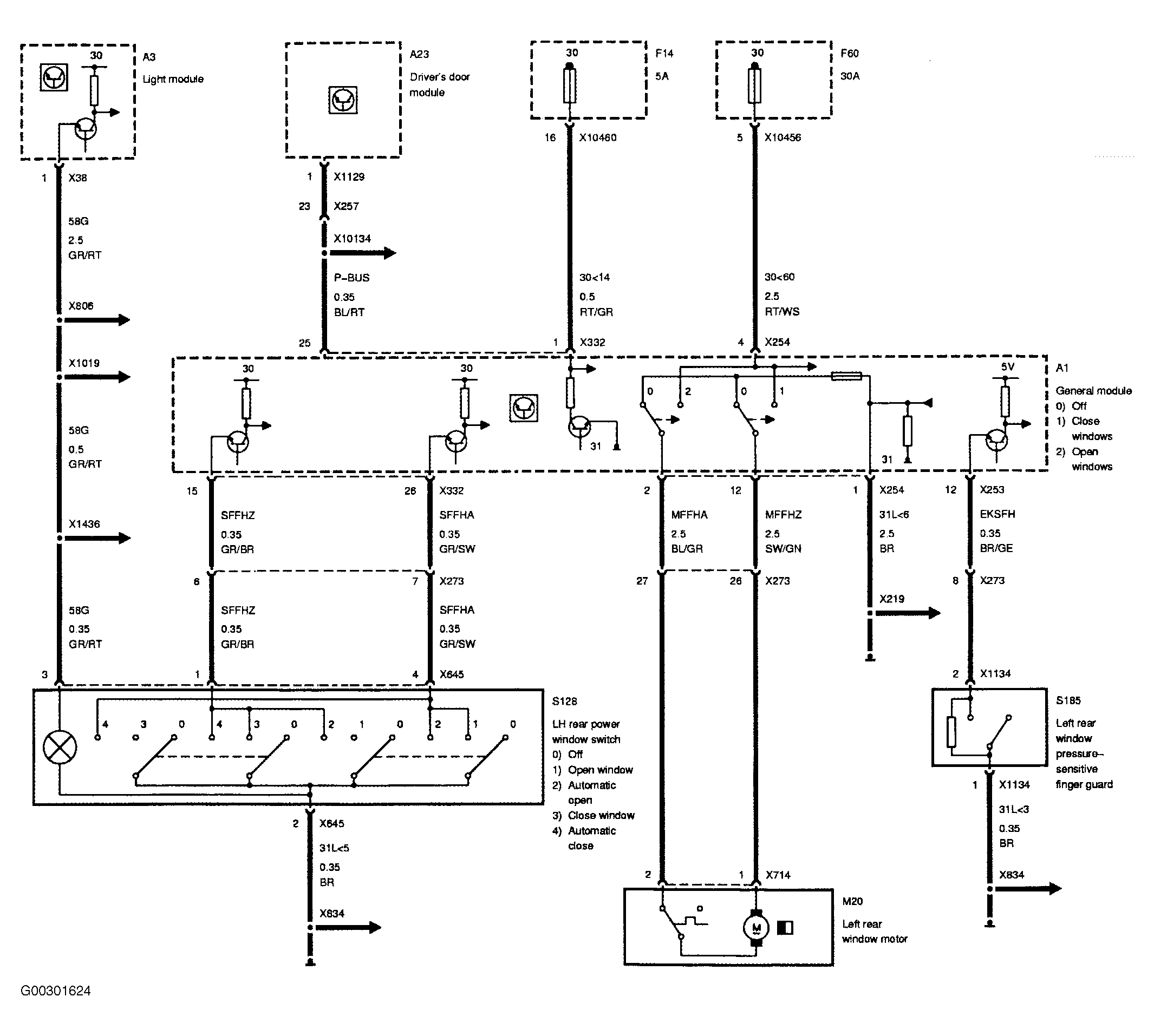

Fig 4: Power Window Left Rear Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

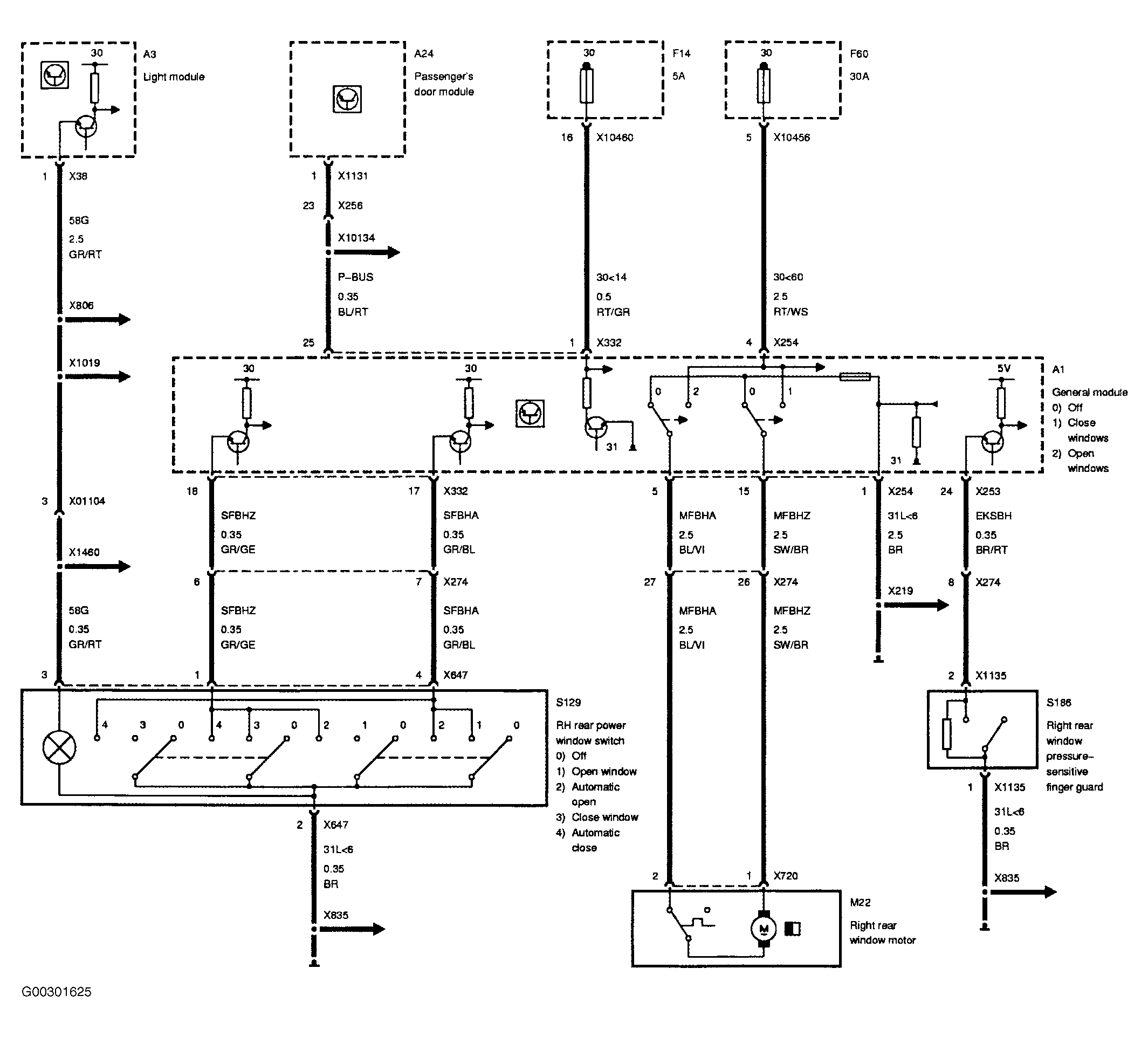

Fig 5: Power Window Right Rear Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

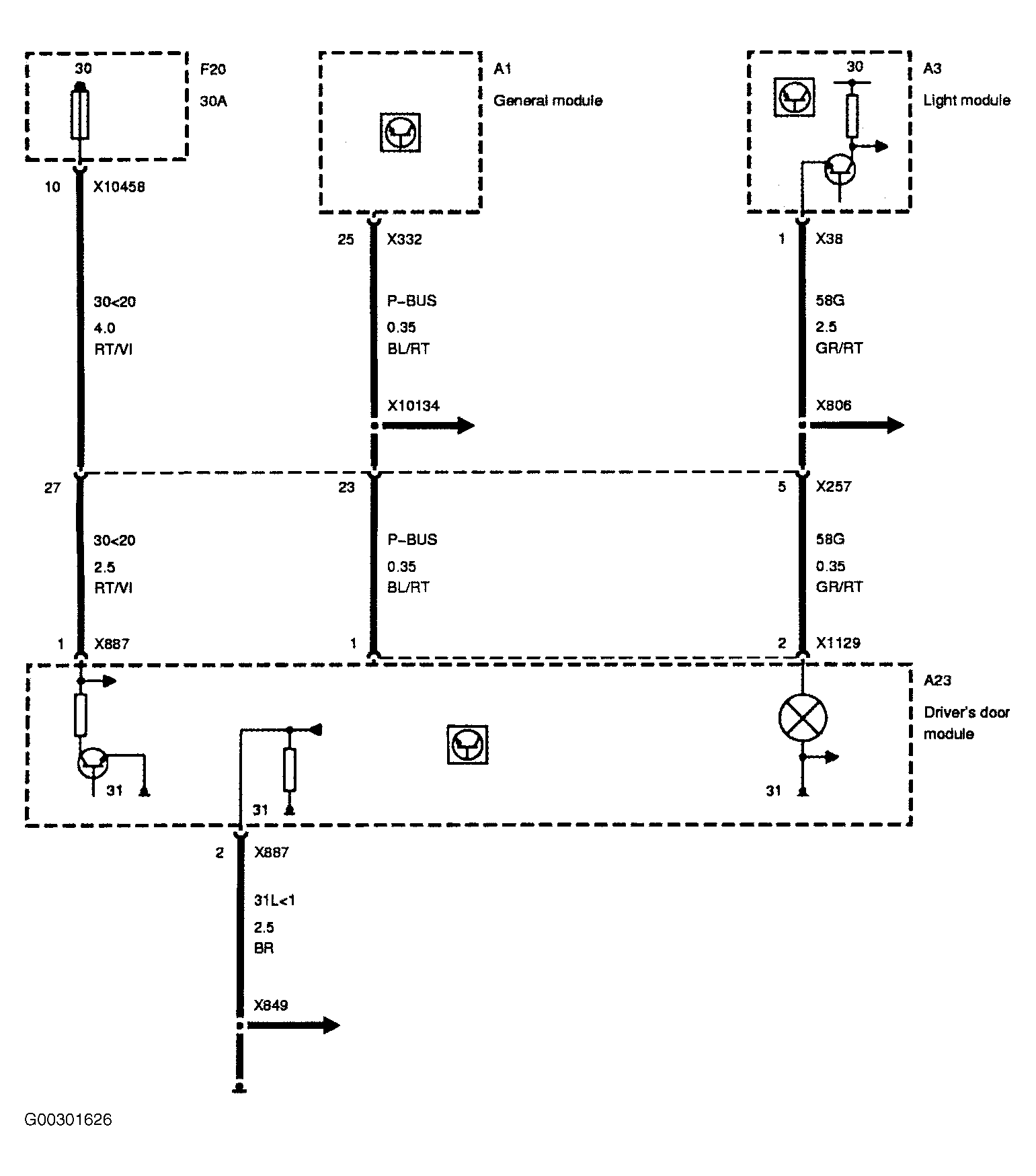

Fig 6: Power Window Driver-Side Switch Block Lighting Circuit

Courtesy of BMW OF NORTH AMERICA, INC.
