Board Monitor Conversion (65 09 04)
Publication date: 2004-10-01Reference number: 65 09 04
BOARD MONITOR CONVERSION
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B65 09 04, Date of Issue:
October 2004
| BMW: | E53 (X5) with Navigation system (option 609) from start of production up to March 2001. |
| GROUP: | 65 - Sound System, Cruise, Alarms, Monitors |
SUBJECT
Board Monitor Conversion
SITUATION
The LC Display unit (small board monitor) is no longer available as a spare part.
INFORMATION
When replacement of a faulty LC display (small display) is required, the wide screen monitor conversion kit P/N 65 90 0 136 732 must be used.

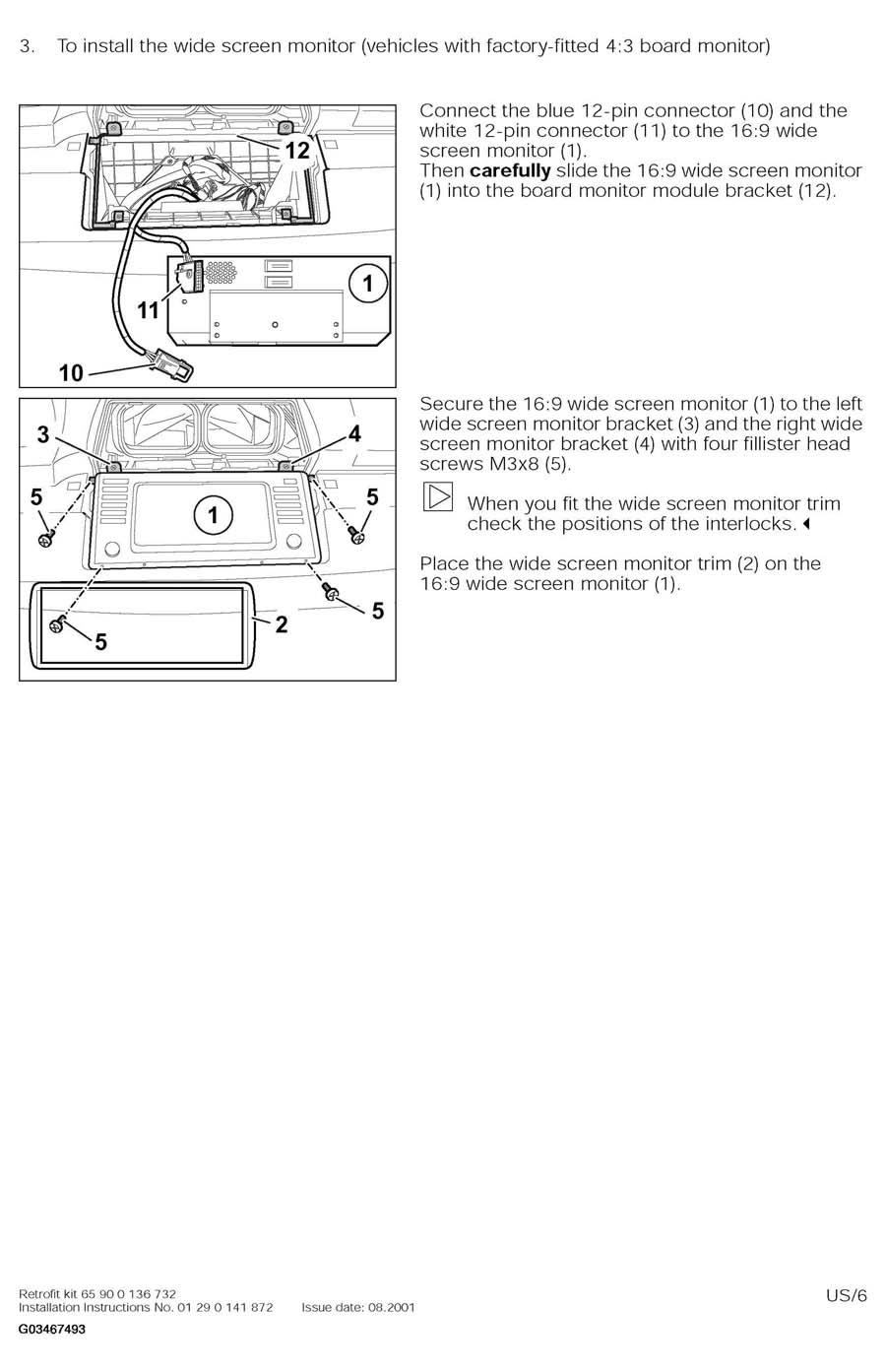

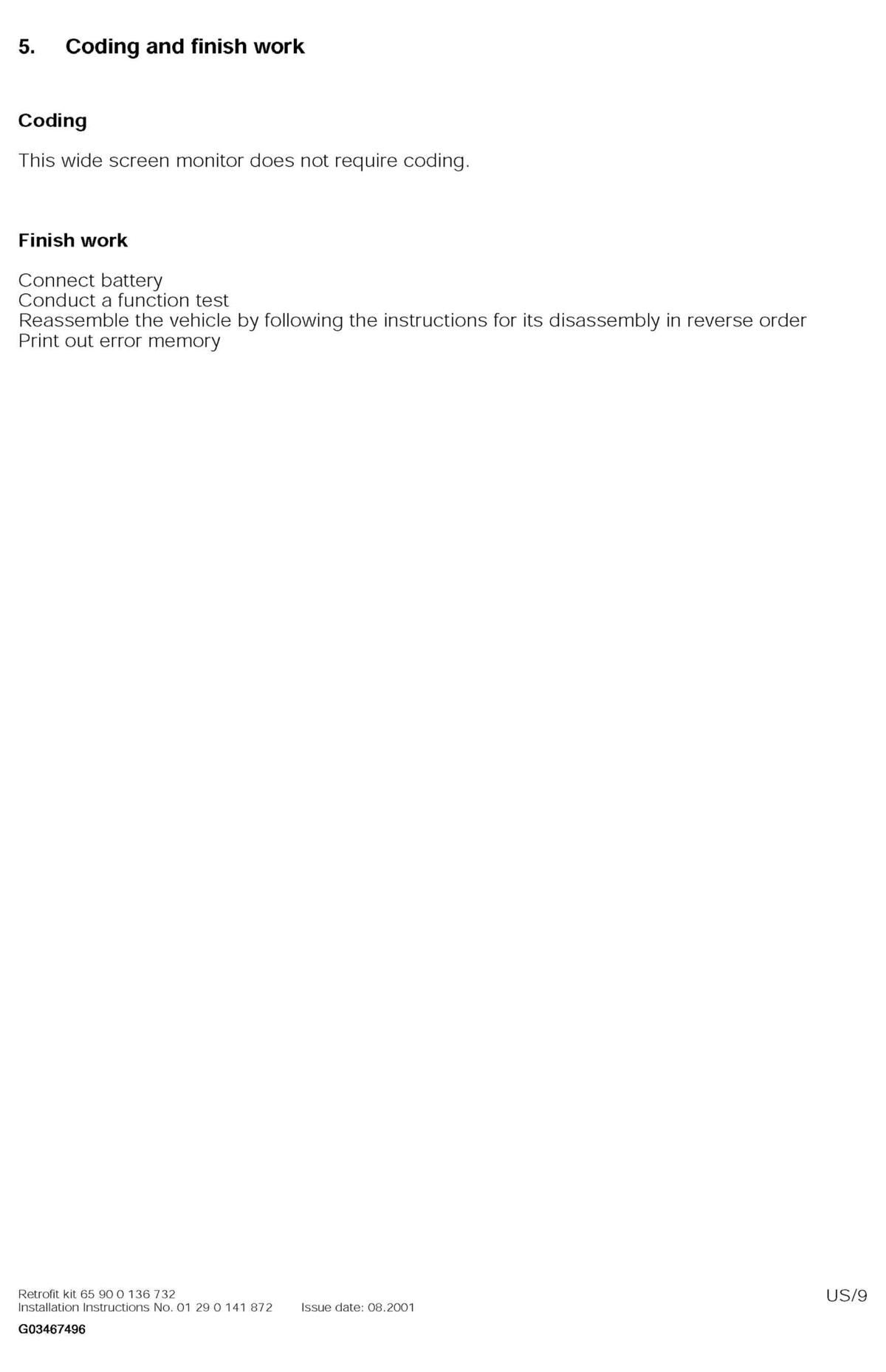

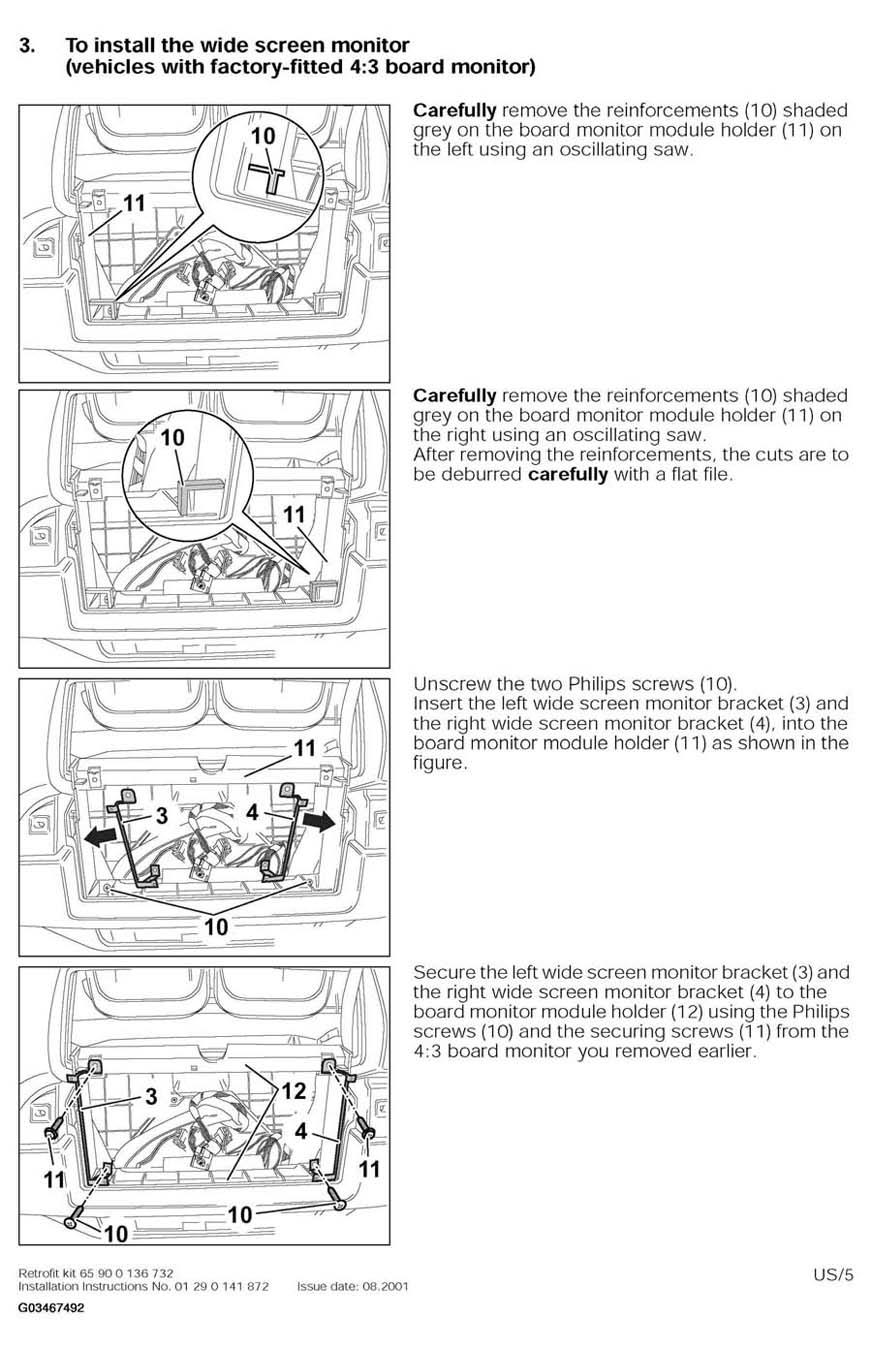

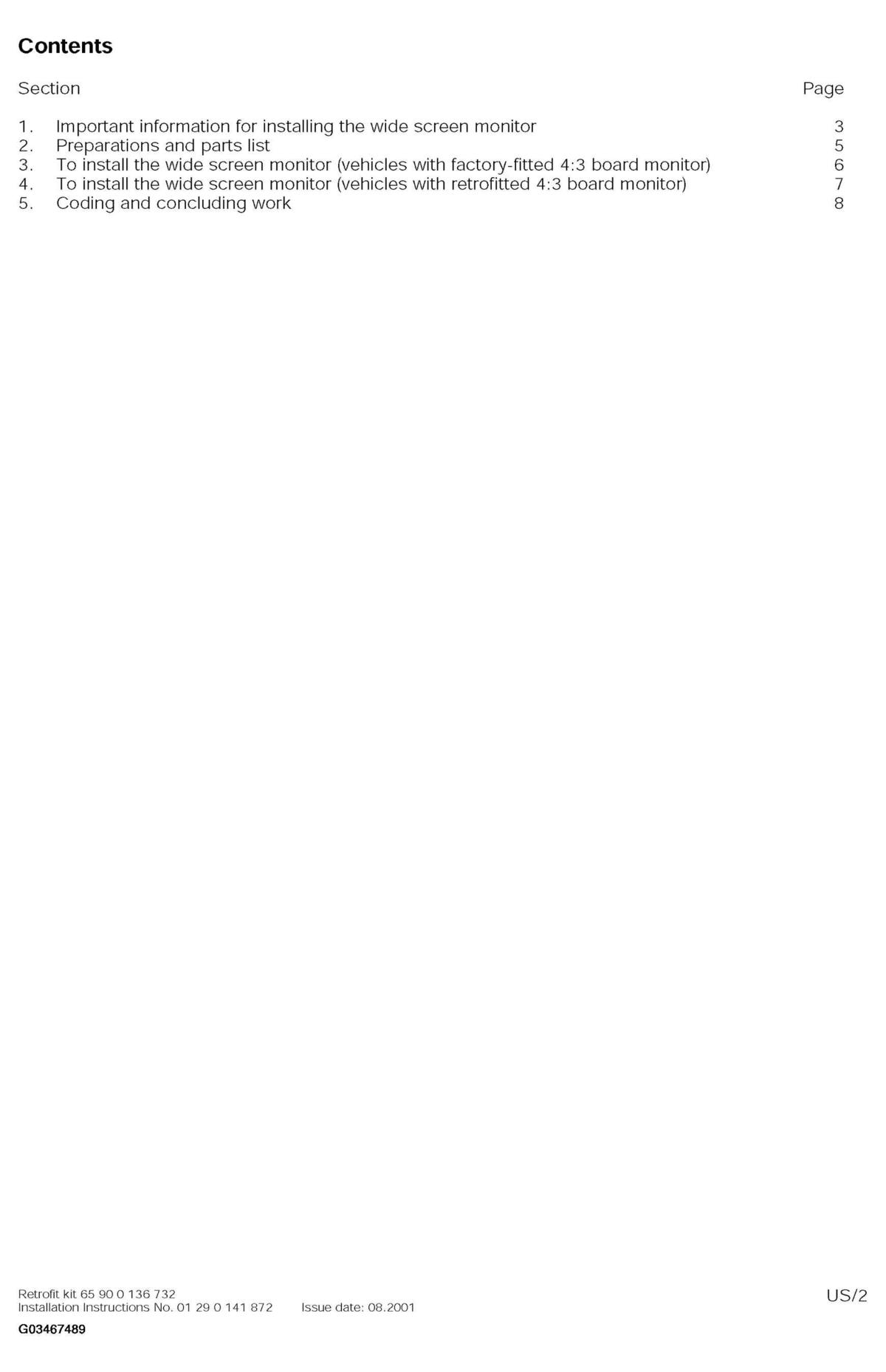

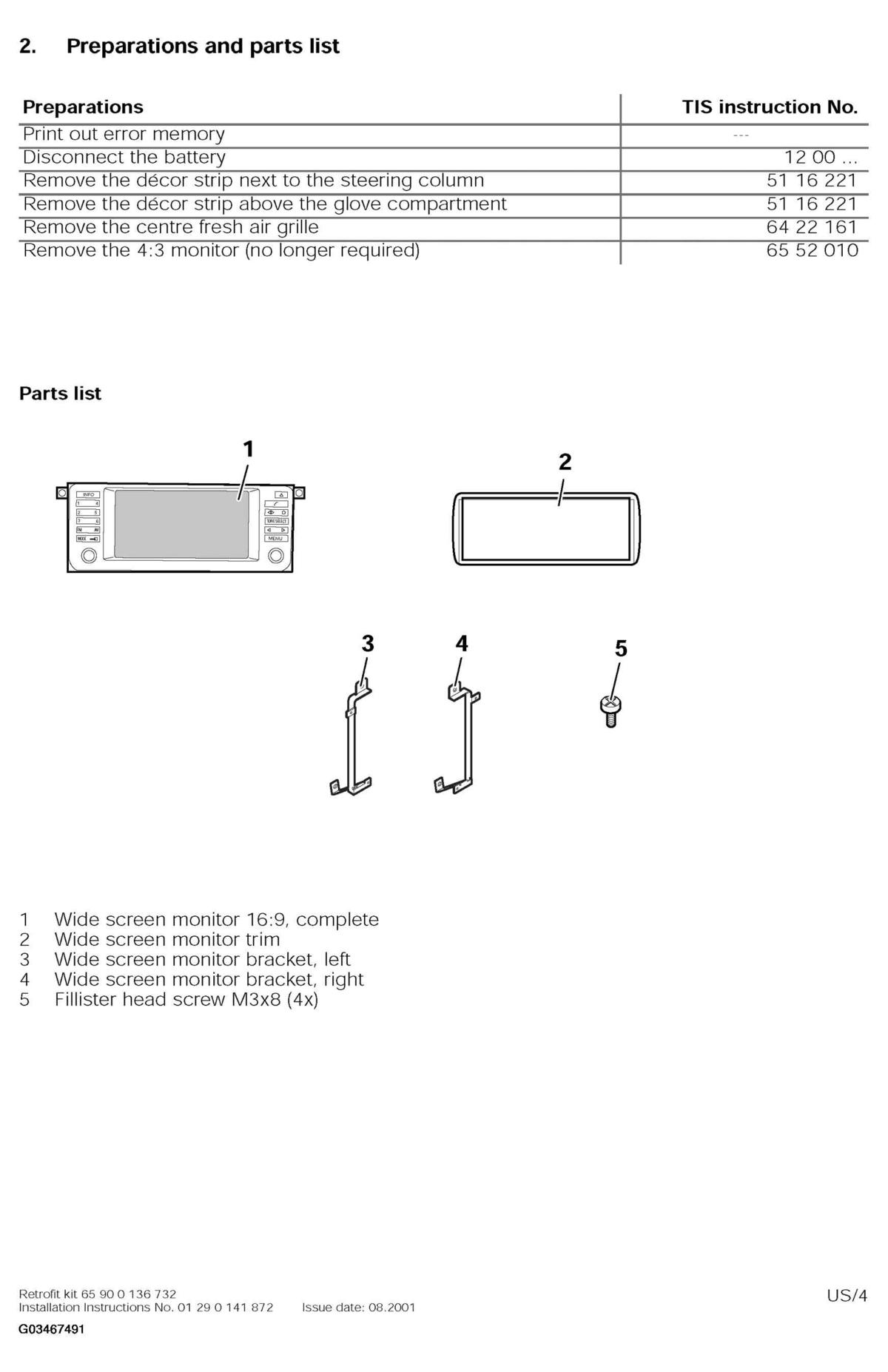

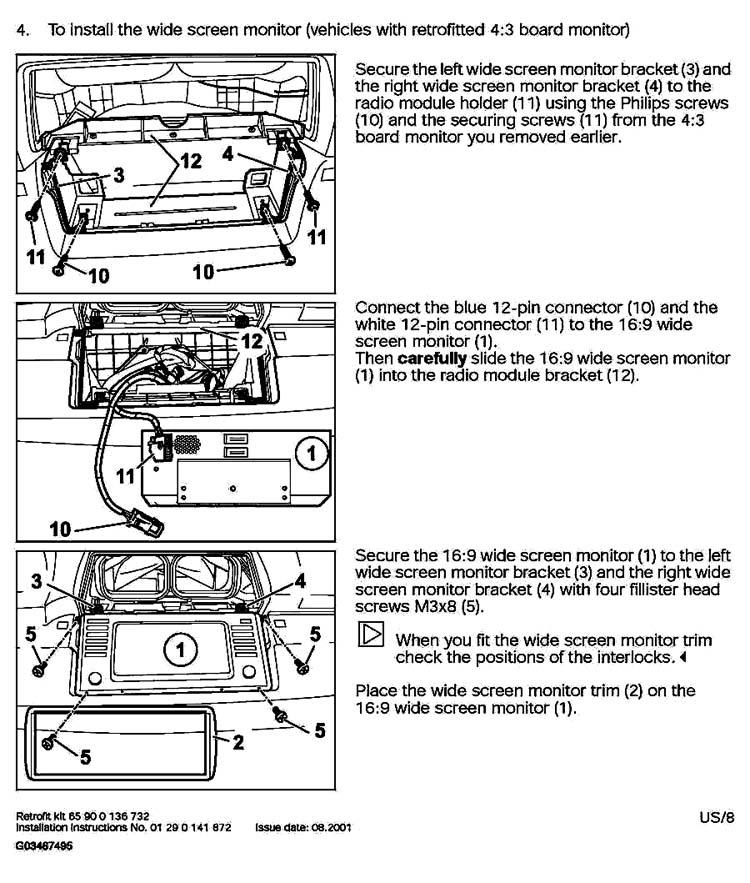

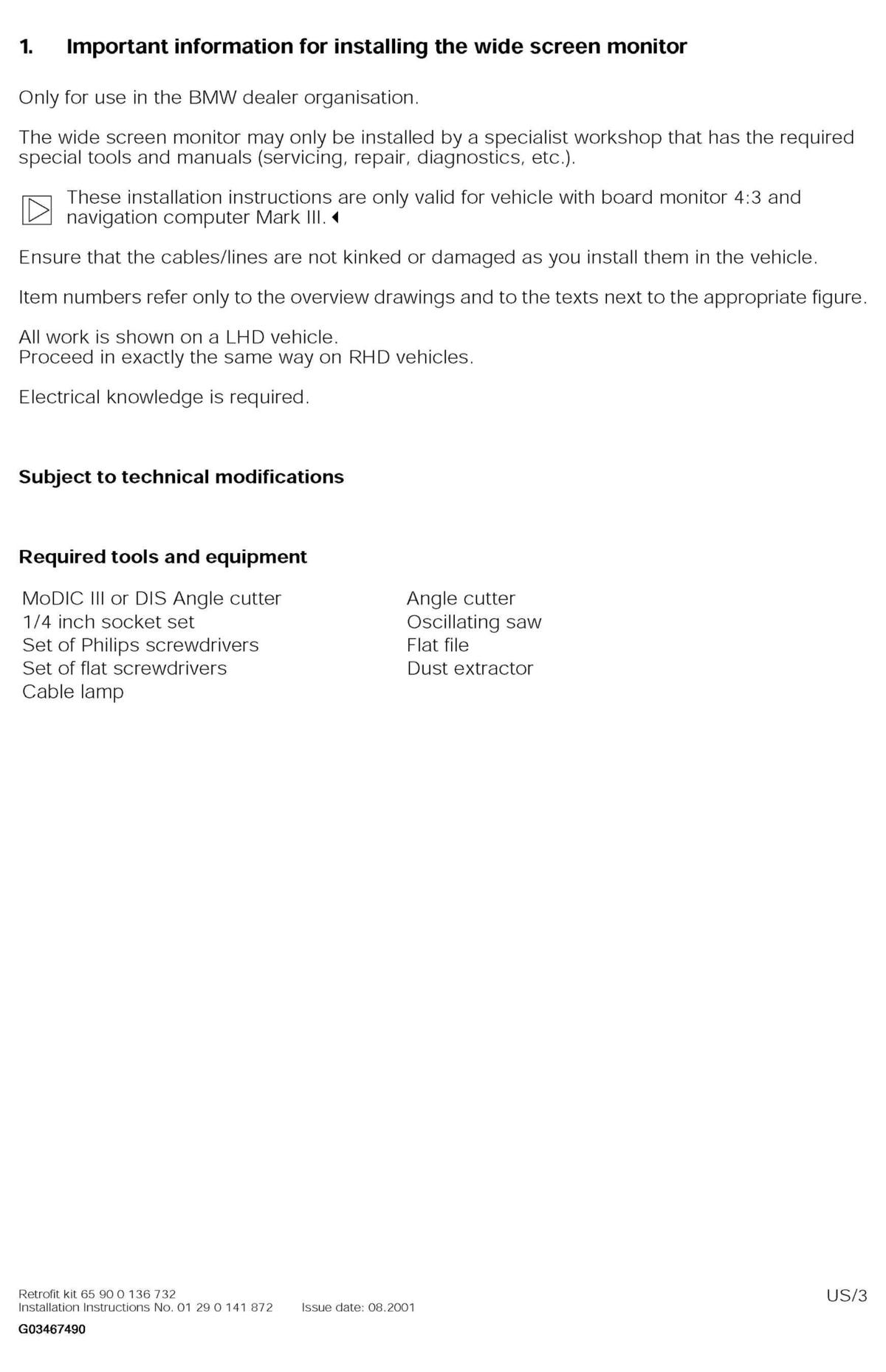

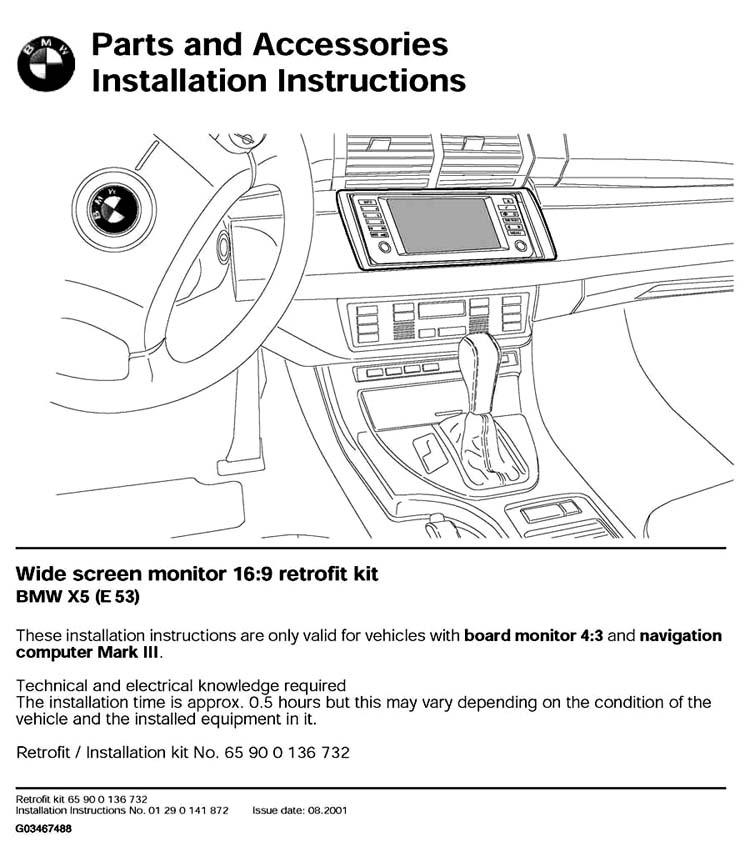

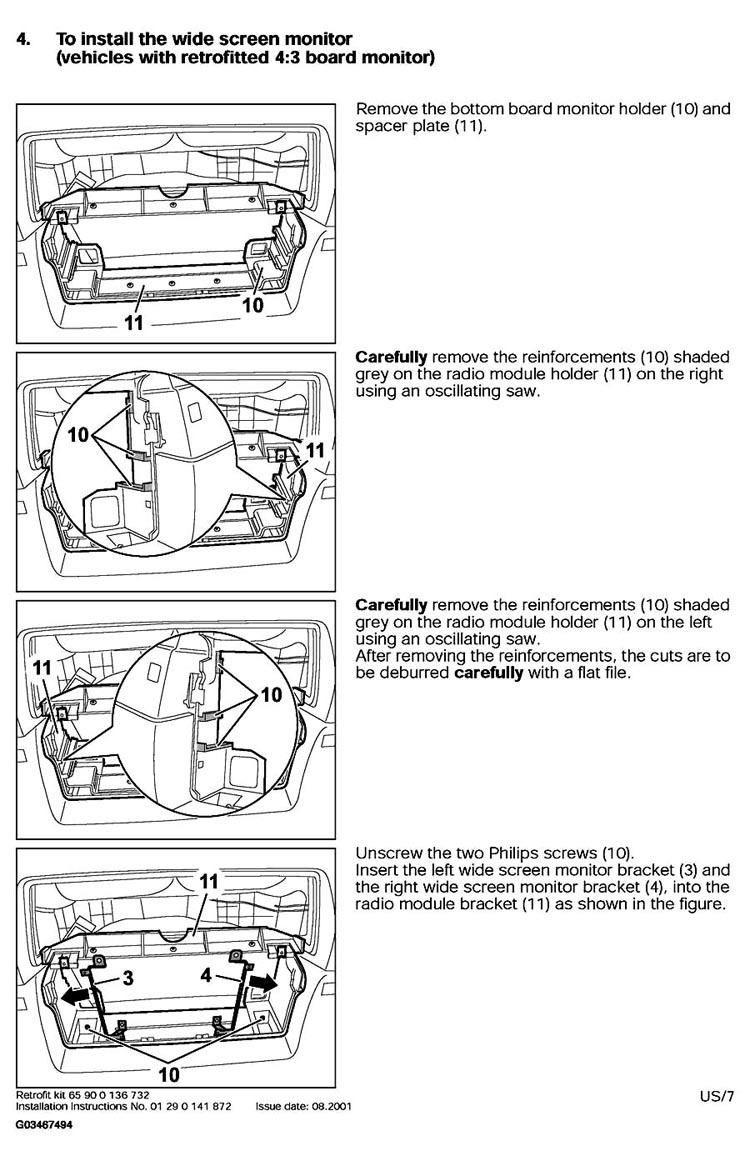

Refer to installation instruction P/N 01 29 0 141 872 in ASAP (After Sales Assistance Portal) on the CenterNet website.
In addition:
When performing this repair on vehicles produced prior to October 2000, the navigation computer must be changed to a DVD navigation computer, P/N 65 90 6 942 910.
Refer to repair instruction RA 65 90 510.
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Quantity |
|---|---|---|
| 65 90 0 136 732 | Wide screen monitor conversion kit | 1 |
