Transfer Case Tools (04 12 03)

Publication date: 2003-12-01
Reference number: 04 12 03

TRANSFER CASE TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 12 03, Date of Issue: December 2003

BMW:	E46/16, E53
GROUP:	04 - Tools and Equipment

SUBJECT

Transfer Case Tools

MODEL

E46/16, E53

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

Seal Installation Tools

PN 90 88 6 271 340

Price = $81.55

Fig 1: Seal Installation Tools

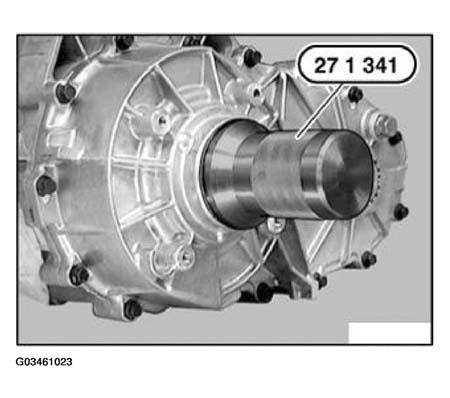

Used to insert the front and rear differential shaft seals in the transfer case. Refer to repair manual section 27 21 020.

Fig 2: Inserting Front And Rear Differential Shaft Seals In Transfer Case

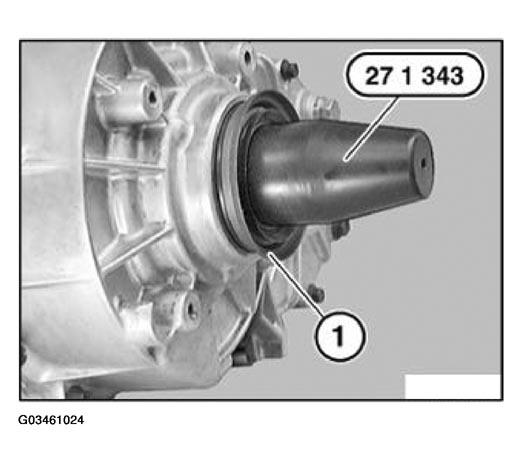

Used to protect the rear differential output shaft seal during installation.

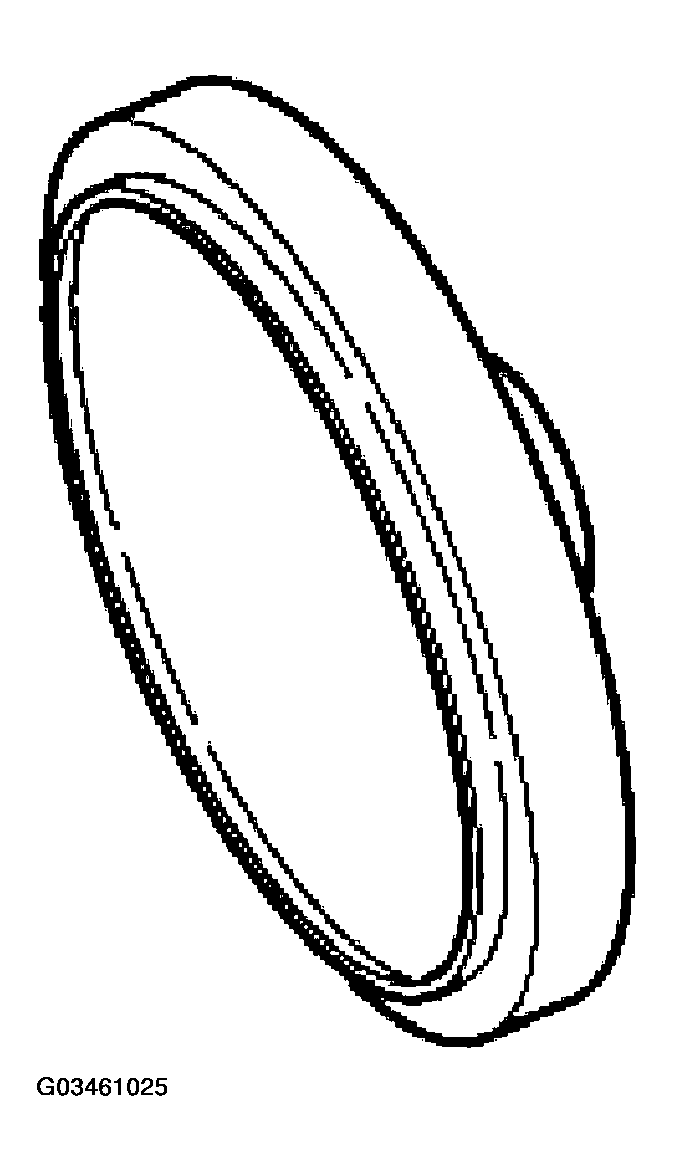

Fig 3: Protecting Rear Differential Output Shaft Seal

Drift

PN 90 88 6 271 360

Price = $25.30

Fig 4: Drift

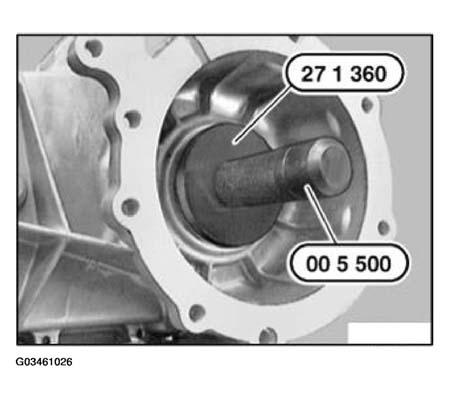

Used in conjunction with 005 500 (Tool board #1) to install the input shaft seal on the E46 transfer case. Refer to repair manual section 27 21 010.

Fig 5: Installing Input Shaft Seal On Transfer Case

Drift

PN 90 88 6 271 370

Price = $33.25

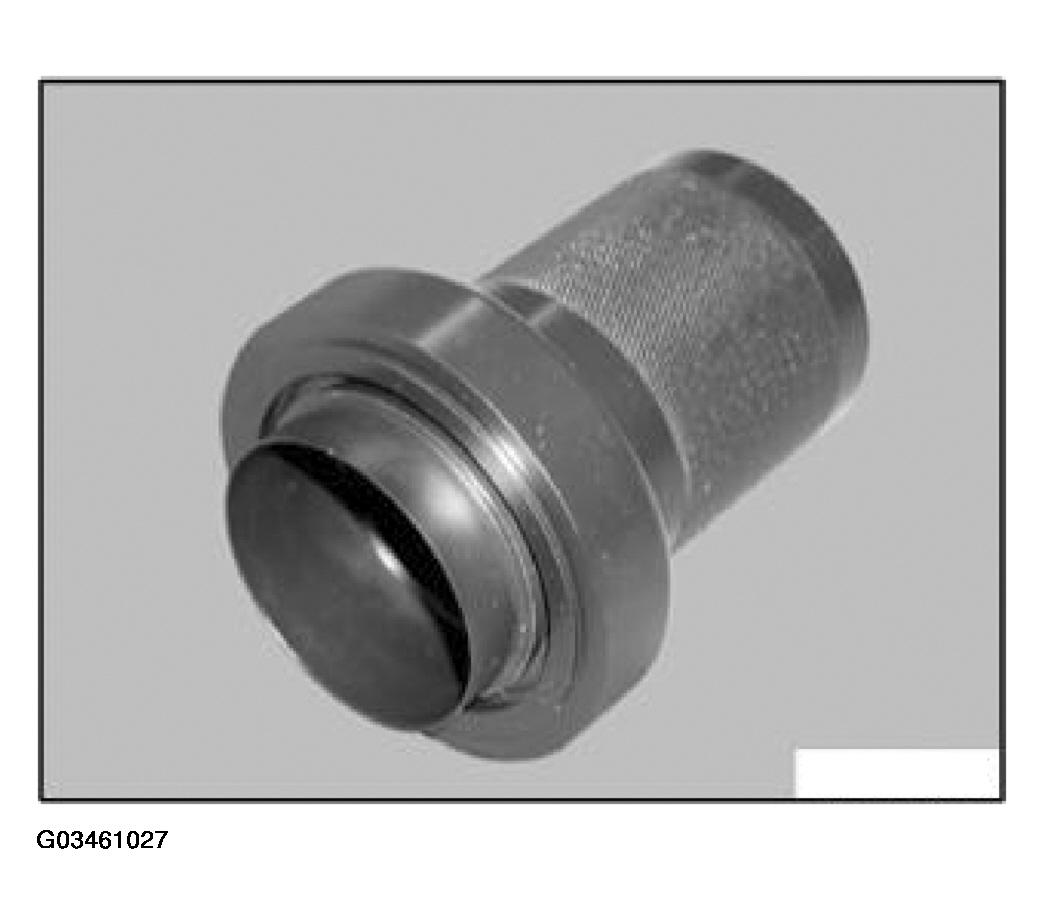

Fig 6: Drift (PN 90 88 6 271 370)

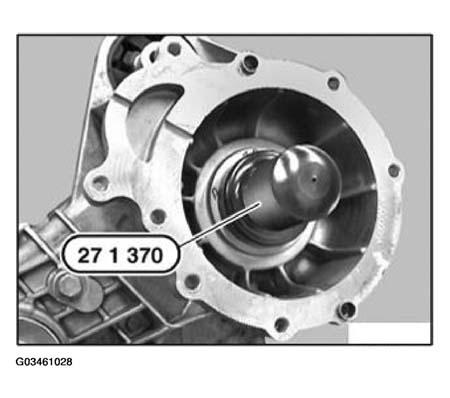

Used to install the output shaft seal (rear axle differential) on the E53 transfer case. Refer to repair manual section 27 21 020.

Fig 7: Installing Output Shaft Seal (Rear Axle Differential) On Transfer Case

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
