Engine/Vehicle Speed: Limitation

For engine/vehicle speed limitation, the ECM will deactivate injection for individual cylinders, allowing a smoother limitation transition. This prevents over-rev when the engine reaches maximum RPM (under acceleration), and limits top vehicle speed (approx. 128 mph).

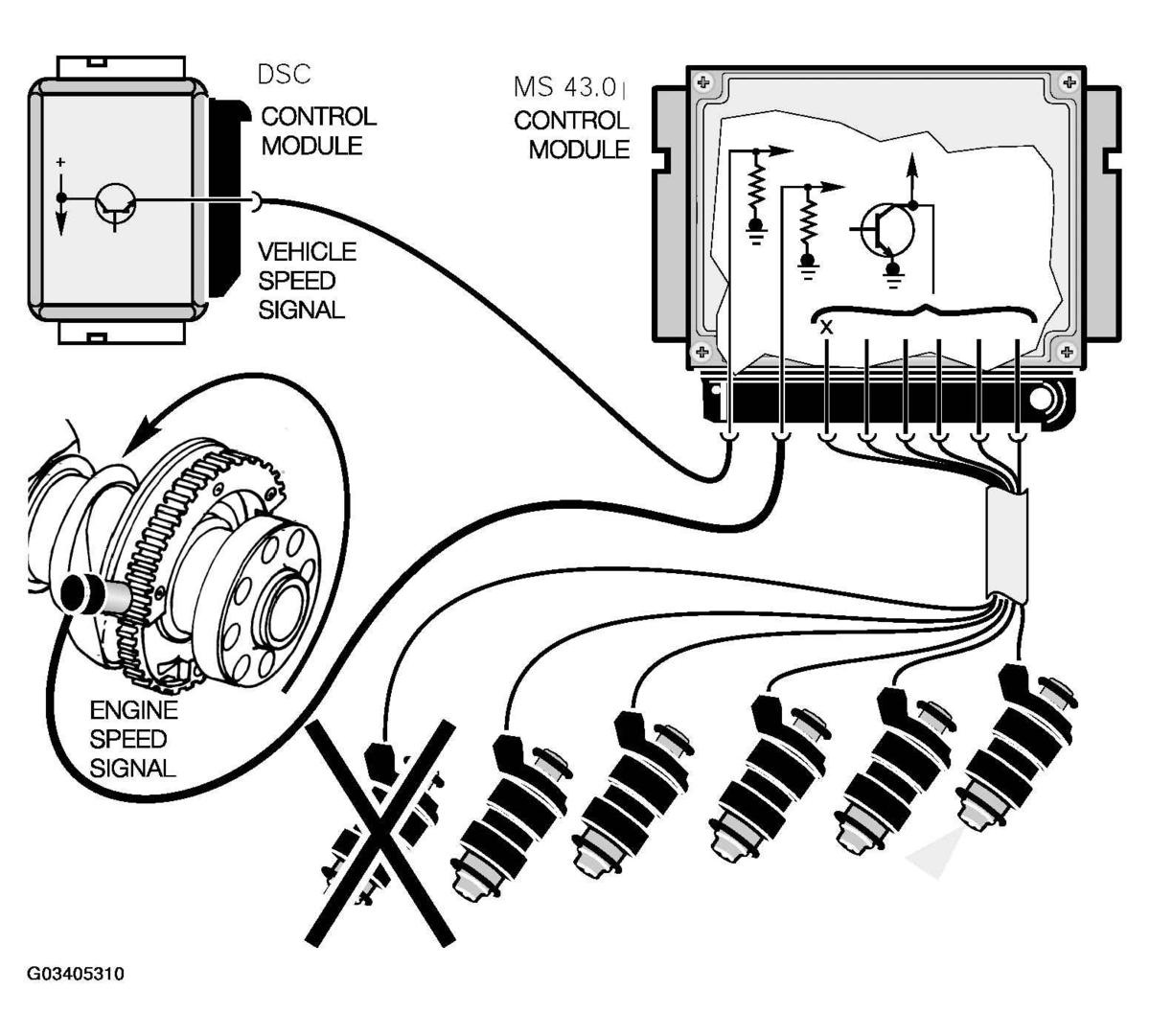

Fig 1: ECM Deactivating Injection For Individual Cylinders
