Resonance System

The resonance system provides increased engine torque at low RPM, as well as additional power at high RPM. Both of these features are obtained by using a resonance flap (in the intake manifold) controlled by the ECM.

During the low to mid range rpm, the resonance flap is closed. This produces a long/single intake tube for velocity, which increases engine torque.

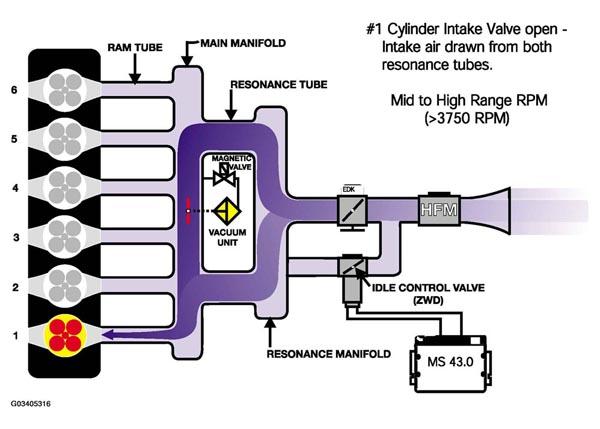

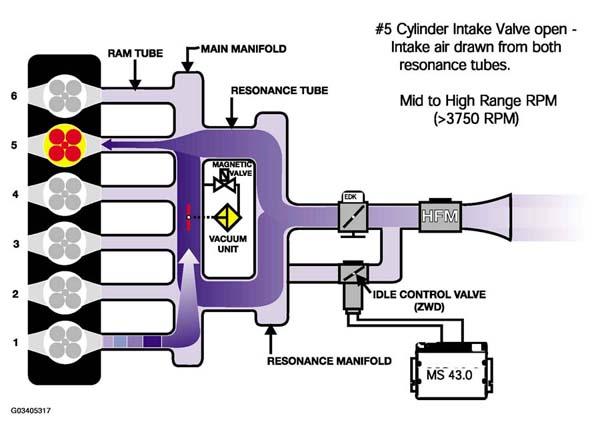

During mid range to high rpm, the resonance flap is open. This allows the intake air to pull through both resonance tubes, providing the air volume necessary for additional power at the upper RPM range.

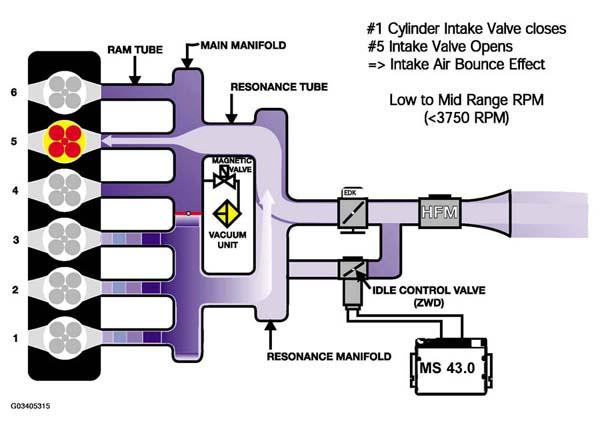

When the flap is closed, this creates another "dynamic" effect. For example, as the intake air is flowing into cylinder #1, the intake valves will close. This creates a "roadblock" for the in rushing air. The air flow will stop and expand back (resonance wave back pulse) with the in rushing air to cylinder #5. The resonance "wave", along with the intake velocity, enhances cylinder filling.

The ECM controls a solenoid valve for resonance flap activation. At speeds below 3750 RPM, the solenoid valve is energized and vacuum supplied from an accumulator closes the resonance flap. This channels the intake air through one resonance tube, but increases the intake velocity.

Fig 1: Identifying Resonance Flap
