Removal & Installation
- Before removing the control unit, switch off ignition.
- Remove lower glove box trim.

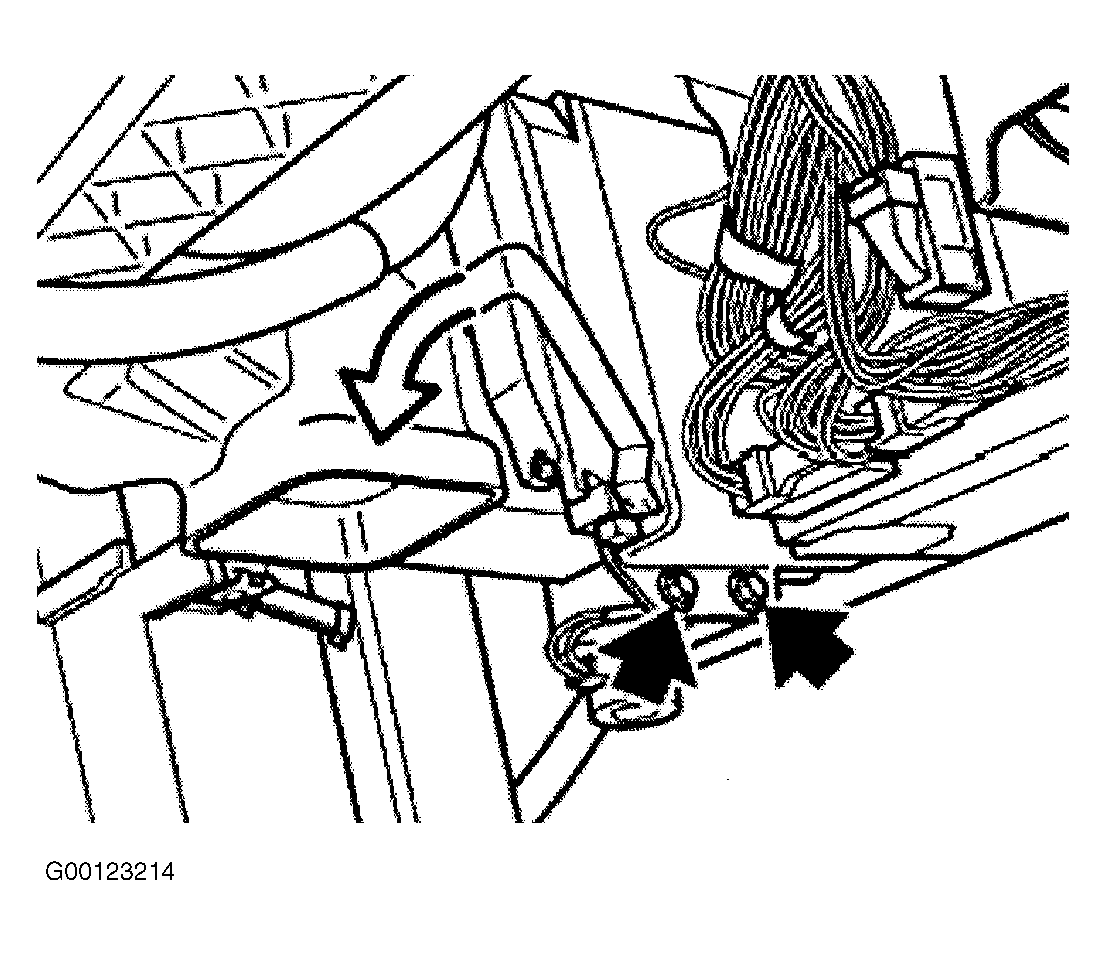

- Unscrew bolts. See Fig 1 .
- Pull control unit down slightly to enable plug connection to be unlocked. Remove control unit.
- Installation is reverse of removal.
