Wiring Diagrams

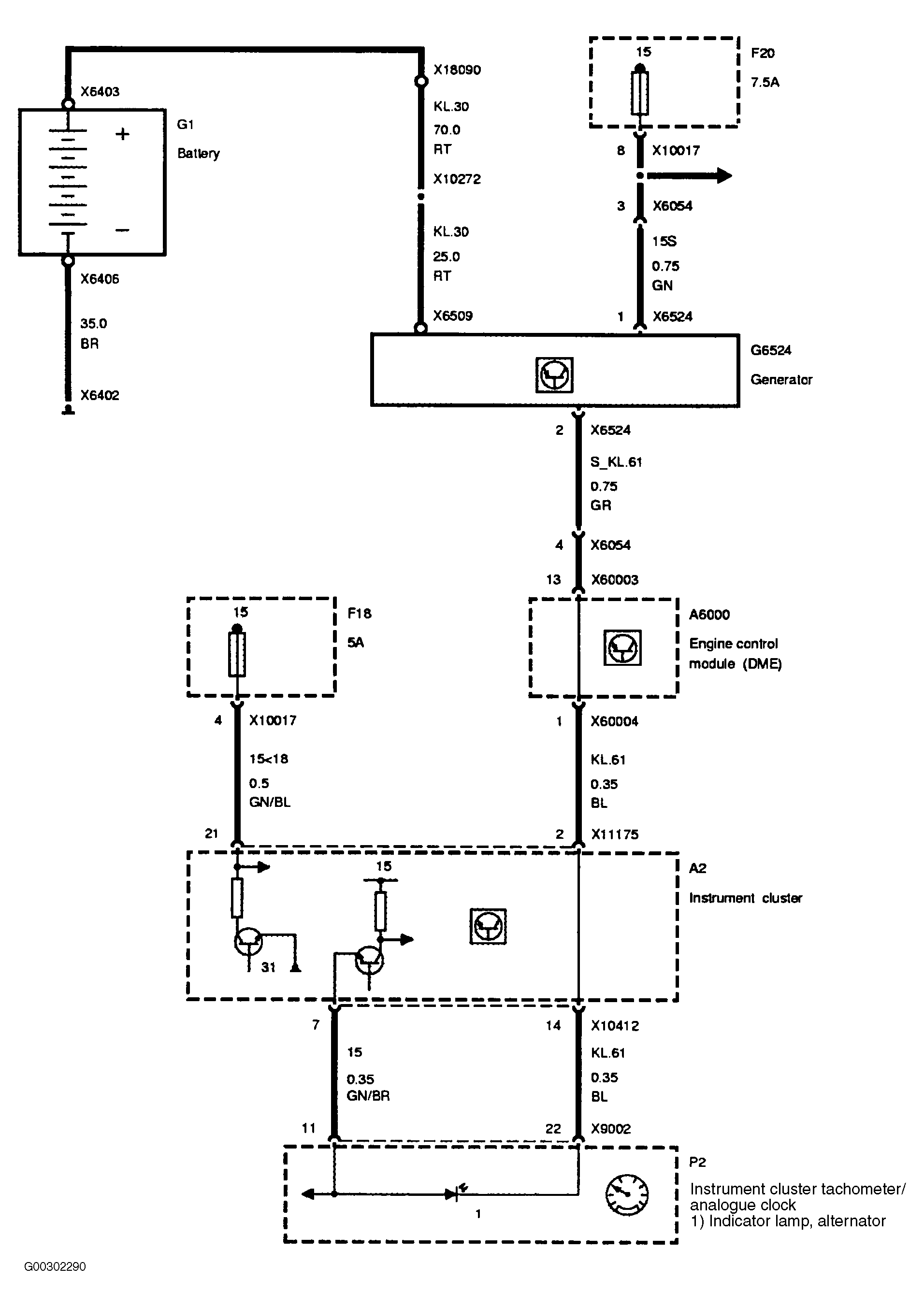

Fig 1: Charging System Wiring Diagram (Z8)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
