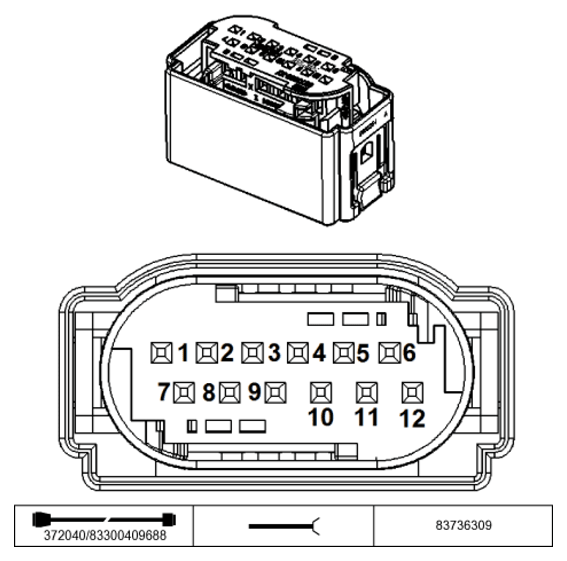

Control Module, Active Cruise Control (ACC) X1783 Connector End View
Pin Assignments X1783
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | M | Ground | Ground point |
| 2 | A/E | Bus signal | Integrated supply module IVM |
| 3 | Not occupied | ||
| 4 | A/E | Bus signal | Integrated supply module IVM |
| 5 | E | Wake-up signal, terminal 15 | Car access control module |
| 6 | Not occupied | ||
| 7 | Not occupied | ||
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | E | Supply, terminal 30 | Fuse F7 |
| 11 | Not occupied | ||
| 12 | E | Supply, terminal 30 | Fuse F7 |
