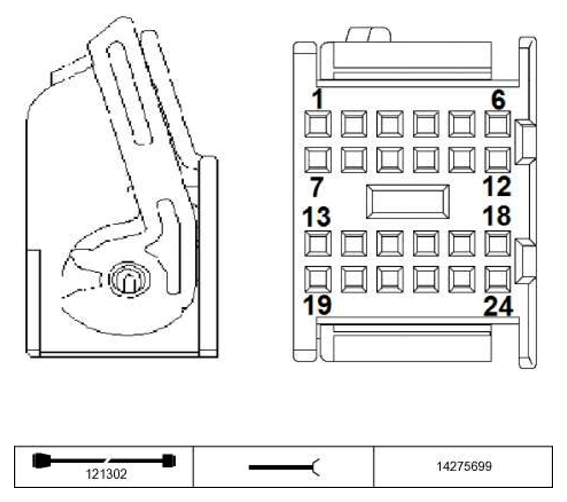

Engine Control Module II (DME) SX60202A Connector End View
Pin Assignments X60202
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, oxygen sensor heating | Oxygen sensor 2 before catalytic converter |
| 2 | Not occupied | ||
| 3 | Not occupied | ||
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | A | Signal, oxygen sensor heating | Oxygen sensor 2 behind catalytic converter |
| 7 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
| 11 | Not occupied | ||
| 12 | Not occupied | ||
| 13 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 14 | Not occupied | ||
| 15 | Not occupied | ||
| 16 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
| 17 | Not occupied | ||
| 18 | Not occupied | ||
| 19 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 20 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 21 | Not occupied | ||
| 22 | Not occupied | ||
| 23 | E | Signal, terminal 85 | Integrated supply module IVM |
| 24 | Not occupied |
