Power Module - Overview - E65
›
Power Module
›
Inputs/Outputs
Power Module: Inputs/Outputs

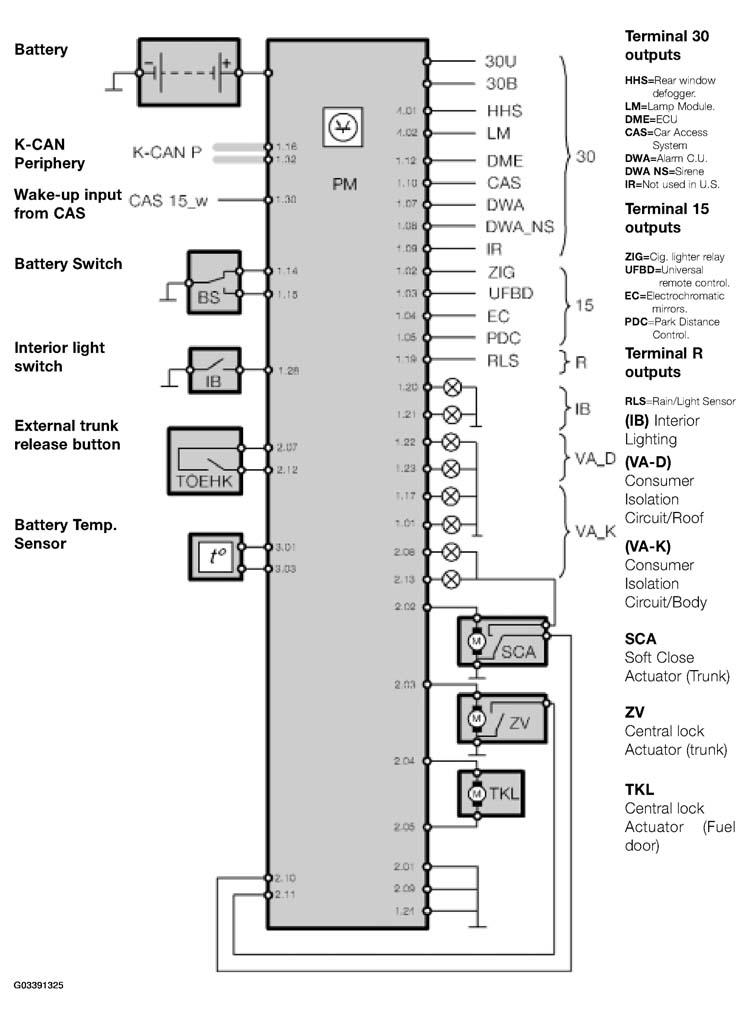

Fig 1: Identifying Power Module (Inputs/Outputs)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
