Introduction - E65
›
Introduction
›
Garage Dimensions
Garage Dimensions

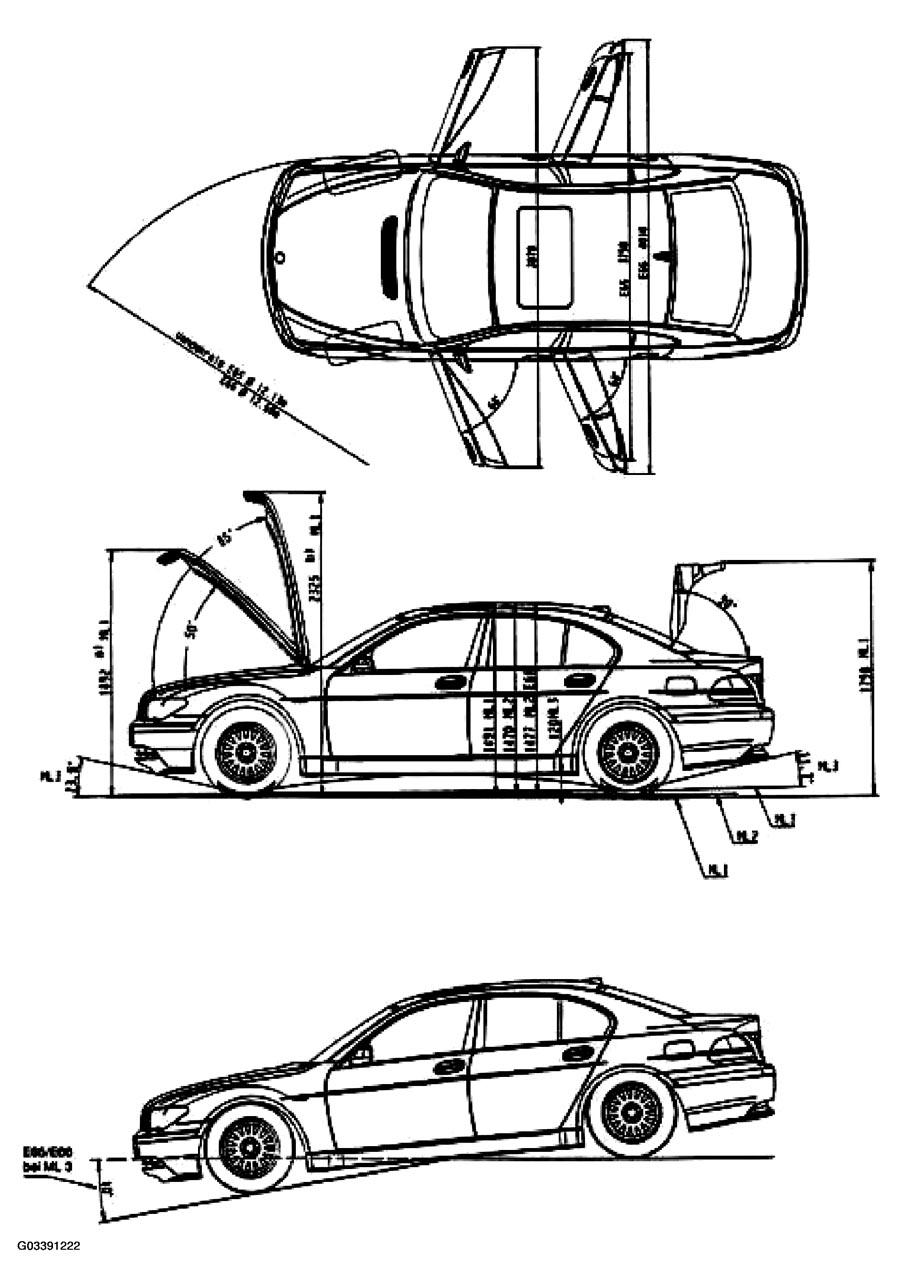

Fig 1: Identifying Garage Dimensions (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

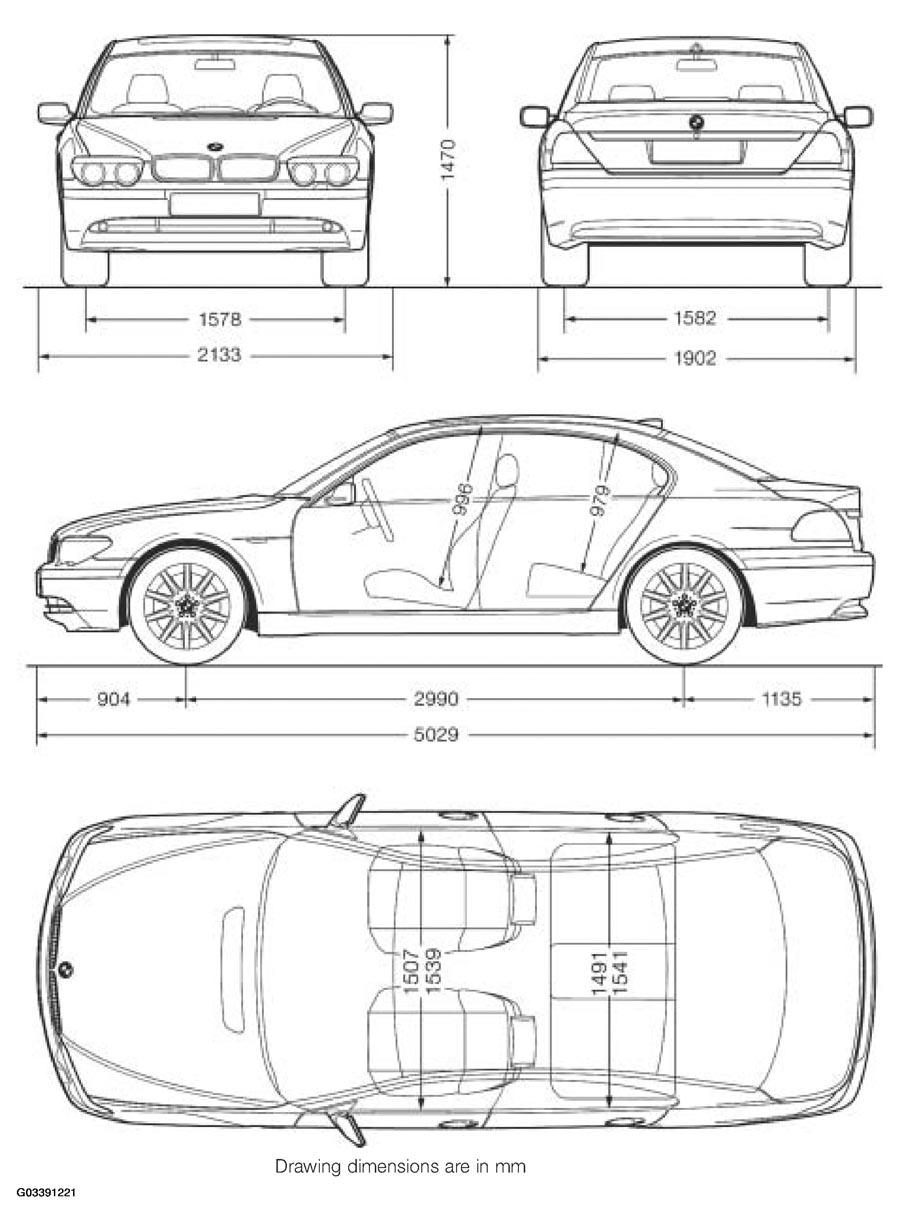

Fig 2: Identifying Garage Dimensions (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
