16 00... Fuel Tank Survey

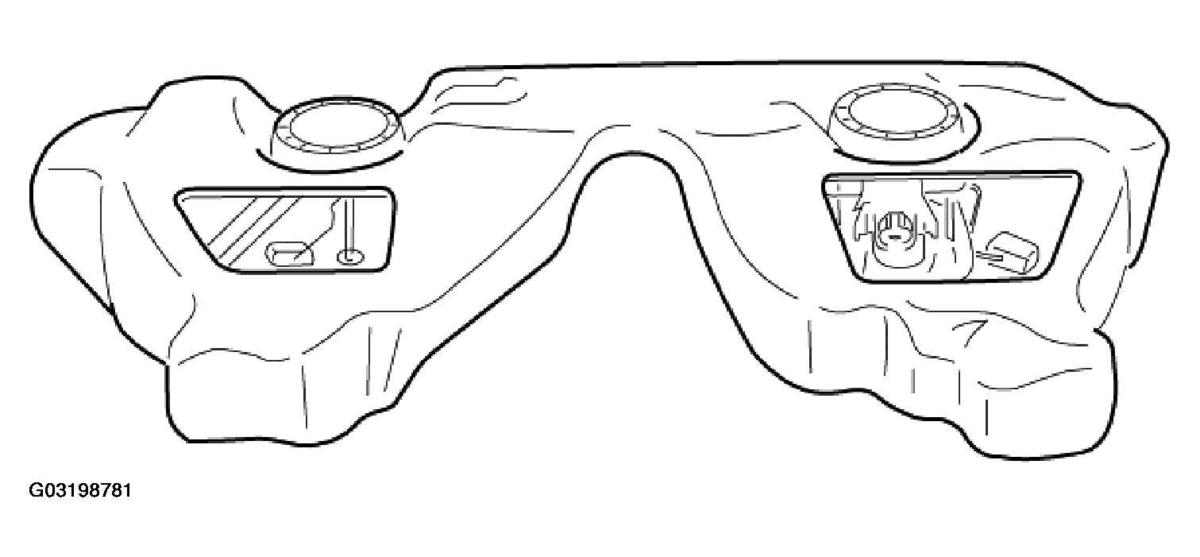

Fig 1: Identifying Fuel Tank

G03198781

Courtesy of BMW OF NORTH AMERICA, INC.

(left) Suction spray pump swing-arm fuel level sender
(right) Fuel pump swing-arm fuel level sender sensor unit

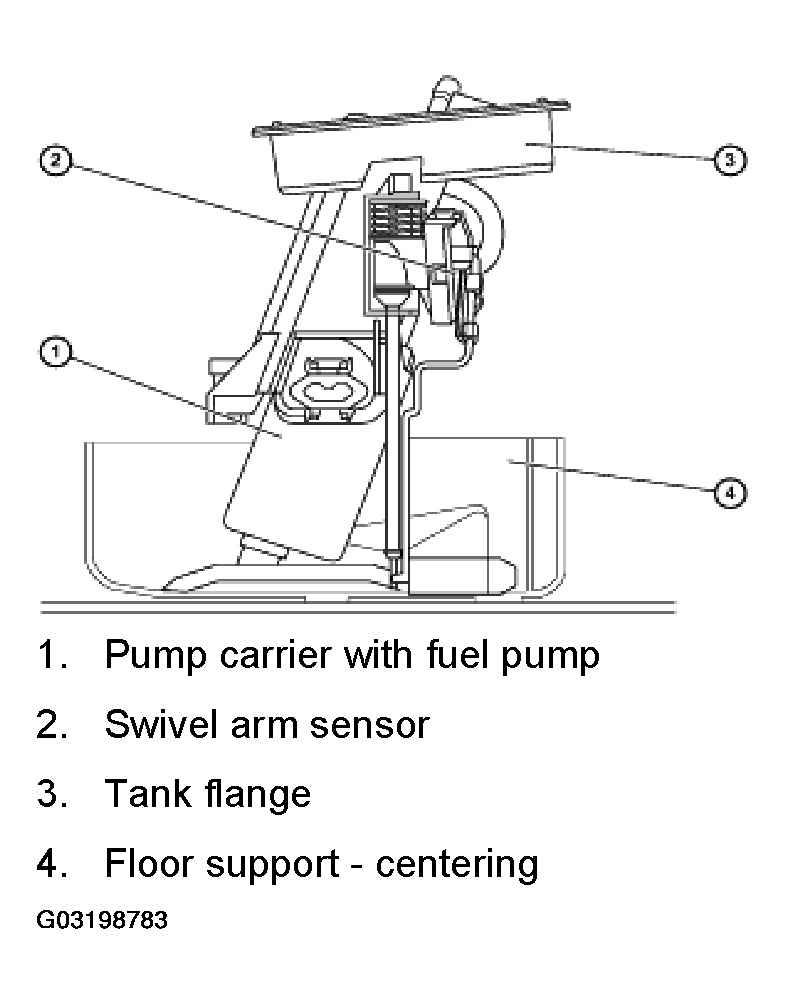

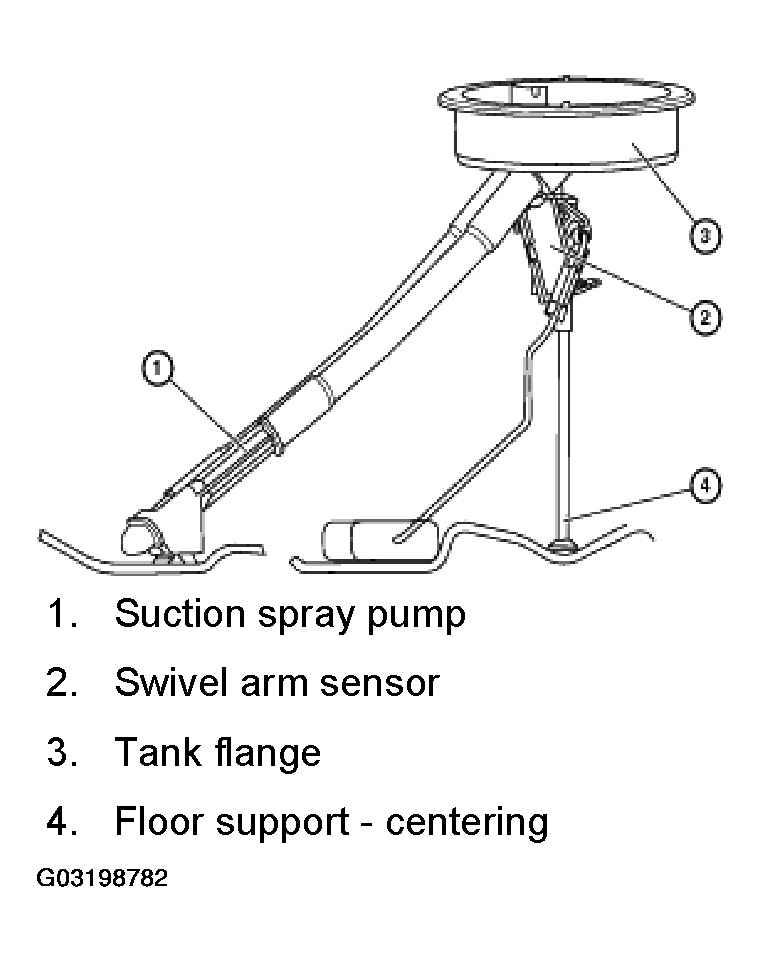

Fig 2: Identifying Fuel Tank Components (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Fuel Tank Components (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
