Harman/Karden Sound System

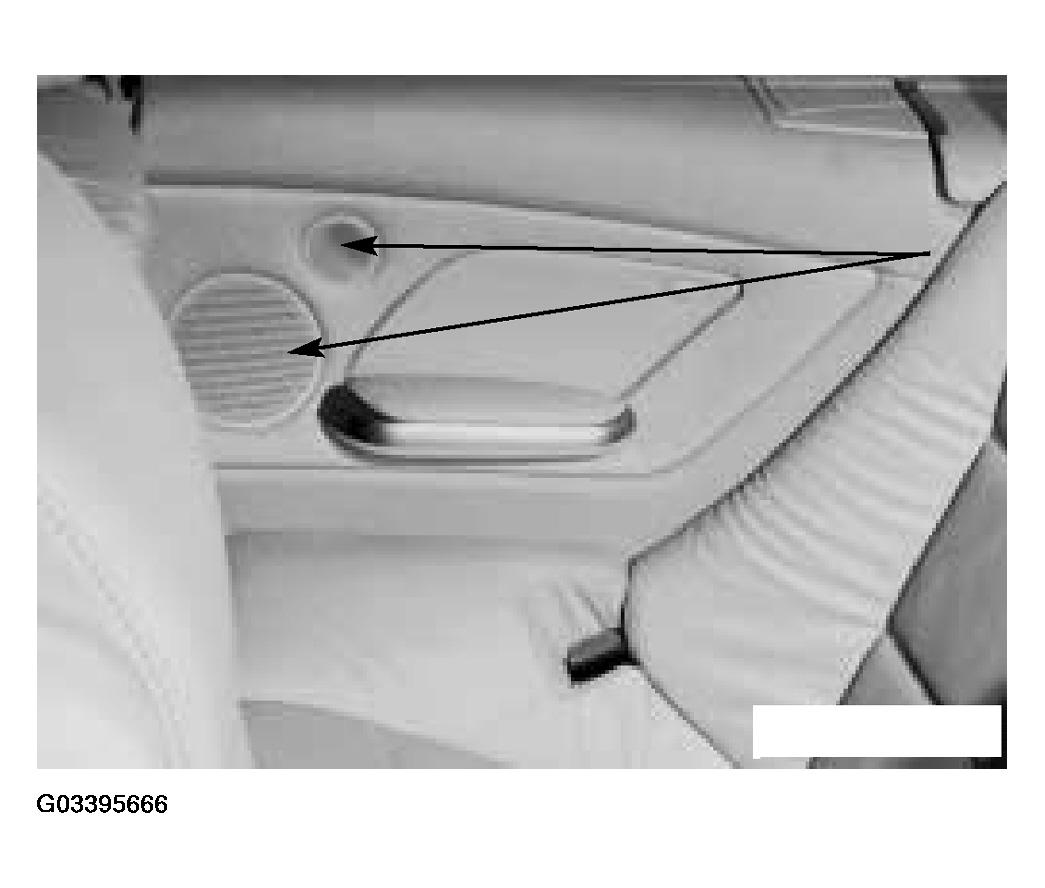

Speaker and component locations will vary depending on the type of sound system installed. Four rear speakers are mounted in the rear side trim panels, two on each side (one wide band 130 mm and one tweeter dome).

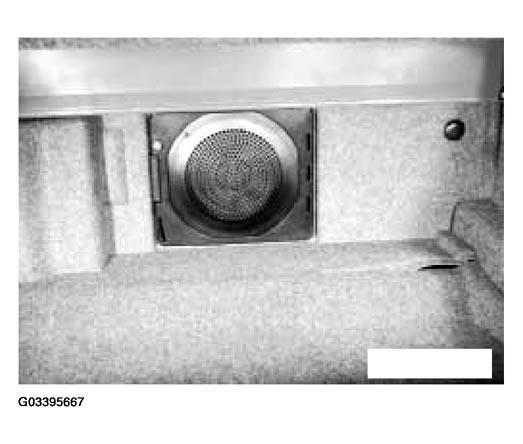

The Harman/Karden system incorporates an additional Subwoofer is installed in the trunk in the ski bag cover.
The subwoofer is 200 mm diameter without a subwoofer amplifier. The amplification for the subwoofer comes from the main sound system amplifier.

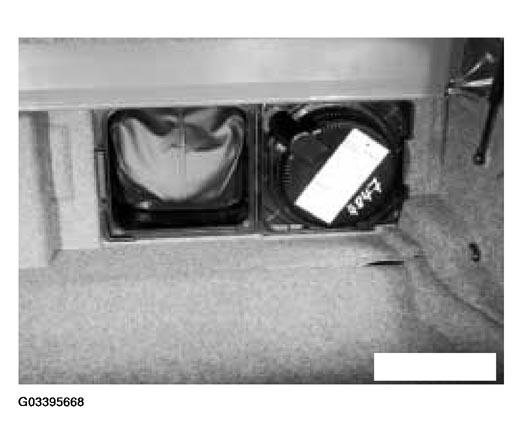

The subwoofer is hinged so that it will swing to the side when the ski bag is used. A magnet on the subwoofer cover will hold the subwoofer in place against the rear bulkhead while the ski bag is being used.
The subwoofer will continue to function in either position closed/open. As mentioned, with the Harman/Karden system, the stereophonic sound is modified when the top is lowered. The sound system amplifier receives a signal from the rear window defroster relay when the top is lowered to switch the stereophonic sound off.
