12 14 511 Replacing Transmission Speed Sensor (SMG)
NOTE:
After completing work: Check transmission fluid level.
CAUTION:
Use only the approved gear oil in this manual transmission.
Failure to comply with this requirement will result in serious damage to the transmission.
Remove rear underbody protection.
Detach cable plug (1) on transmission speed sensor.

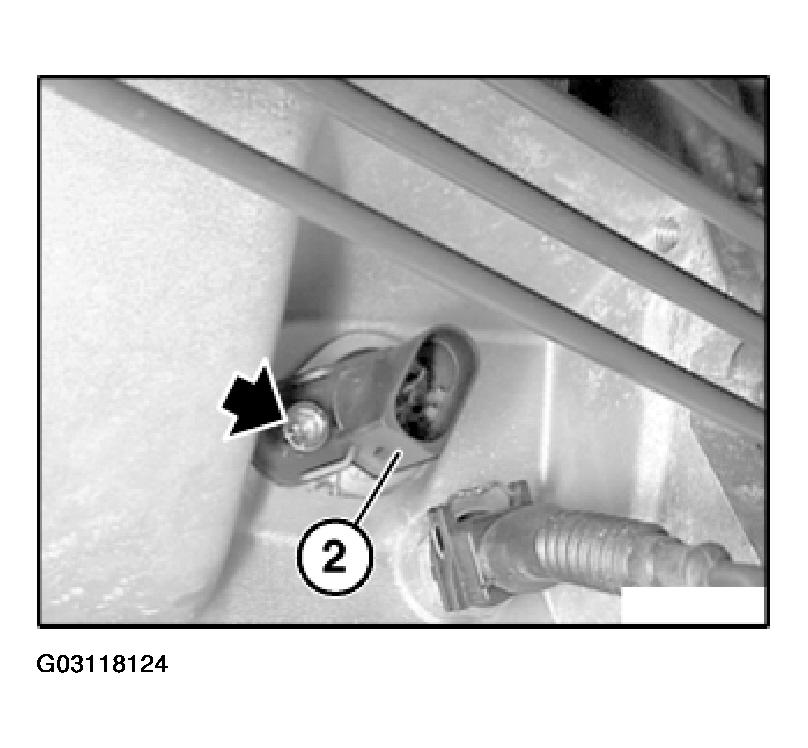

Release screw.
Remove transmission speed sensor (2).
Installation:
Replace microencapsulated screw.
Tightening torque, refer to 12 14 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
