Mode 6
Mode 6

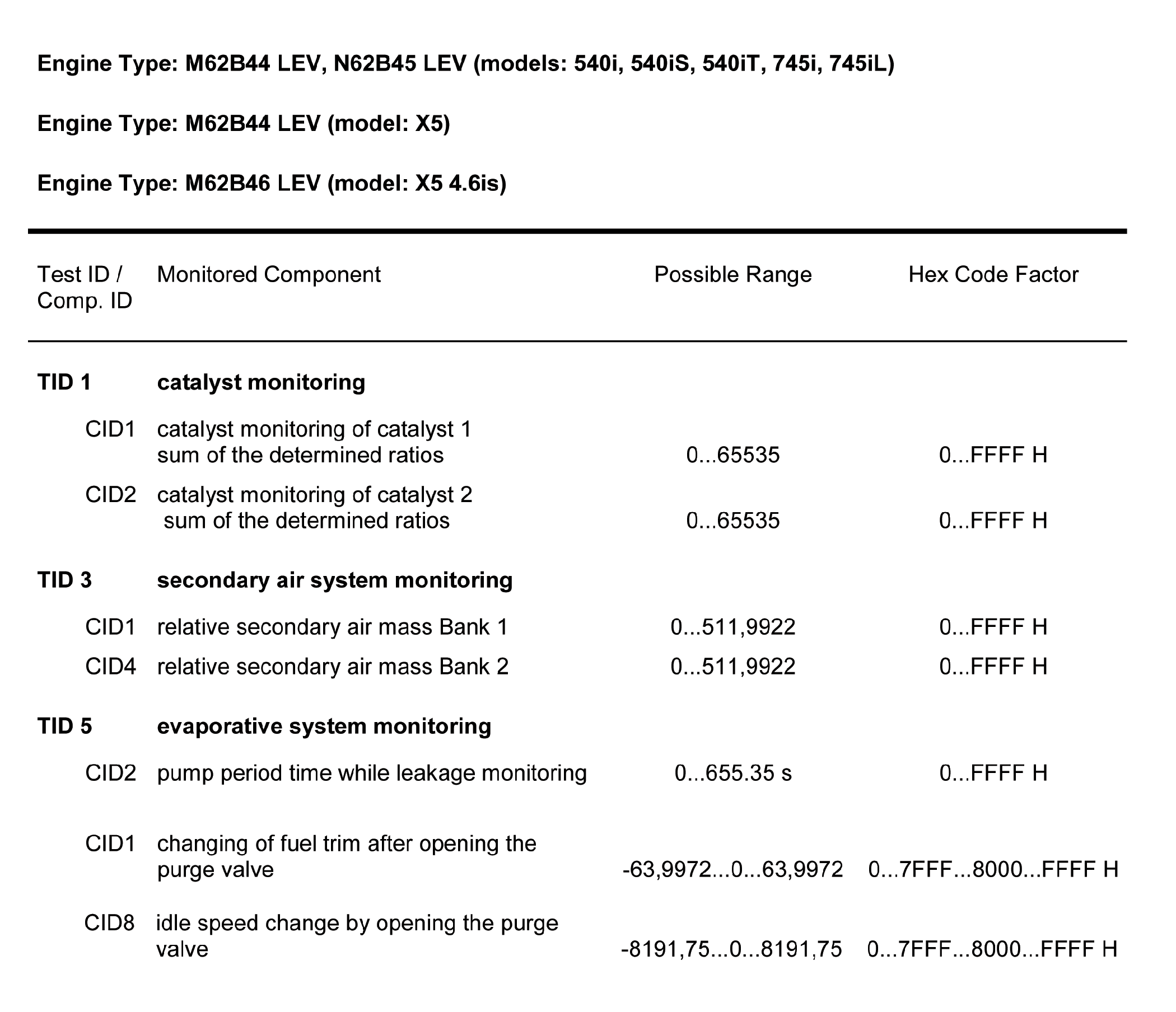

Fig 1: Mini, BMW Mode 6 Data (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

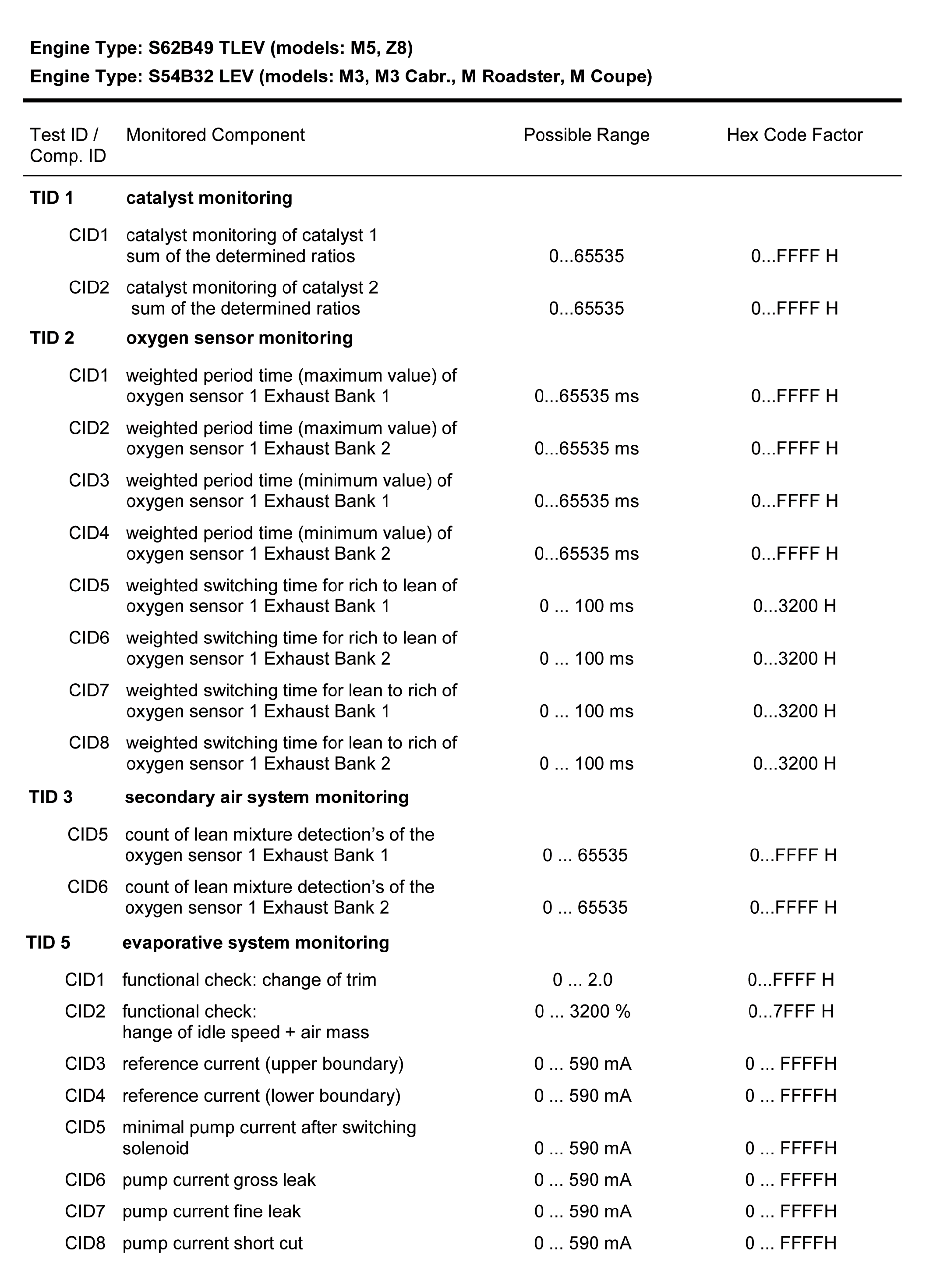

Fig 2: BMW Mode 6 Data (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

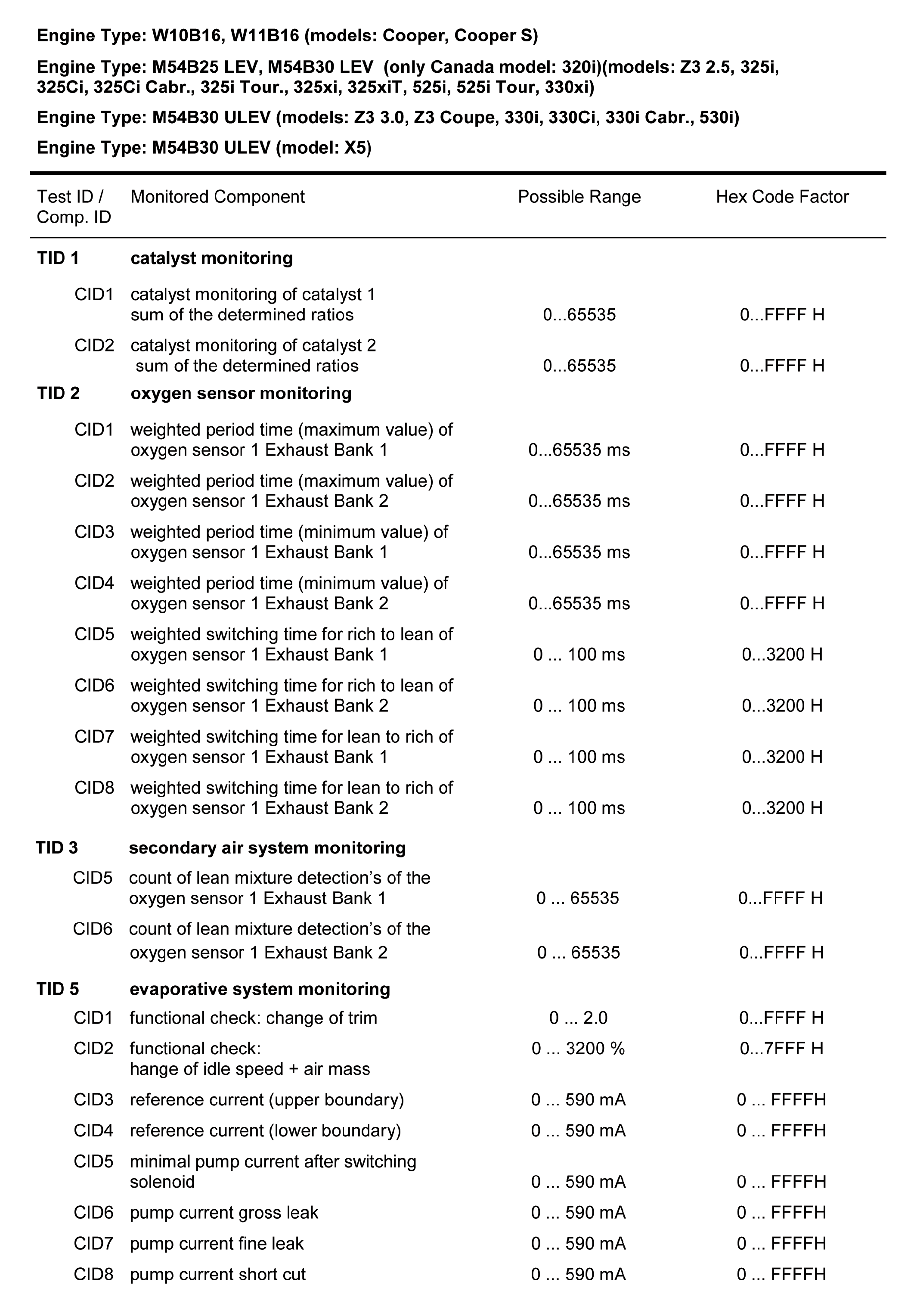

Fig 3: BMW Mode 6 Data (3 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
