MRS III I-P-O

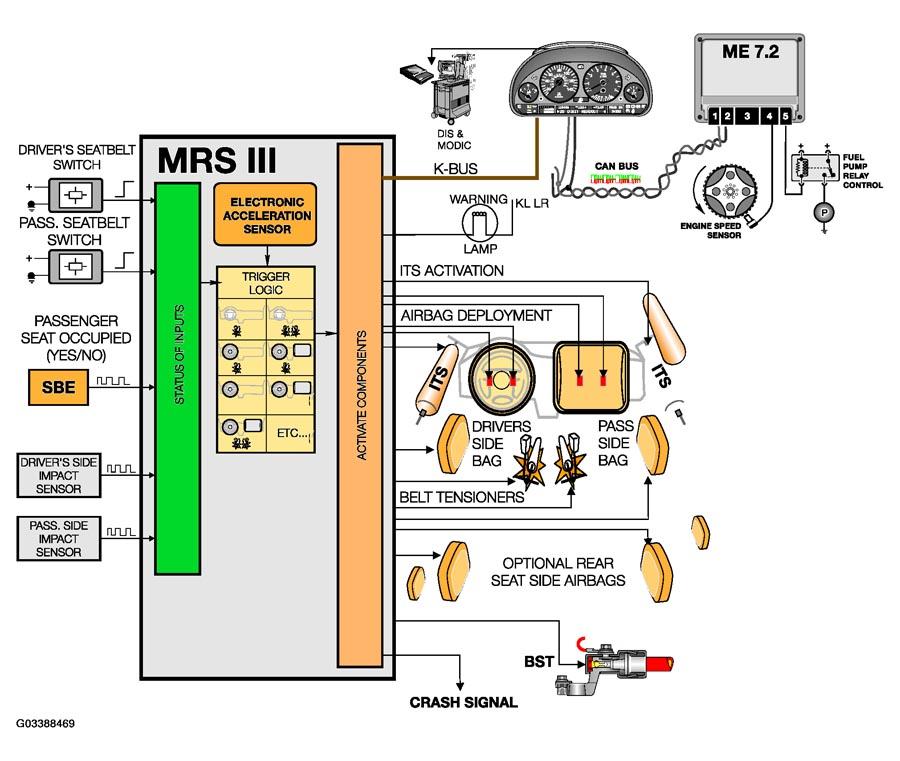

Fig 1: Identifying MRS III I-P-O Communication Diagram
G03388469Courtesy of BMW OF NORTH AMERICA, INC.
