86 21 ... Replacing inside light

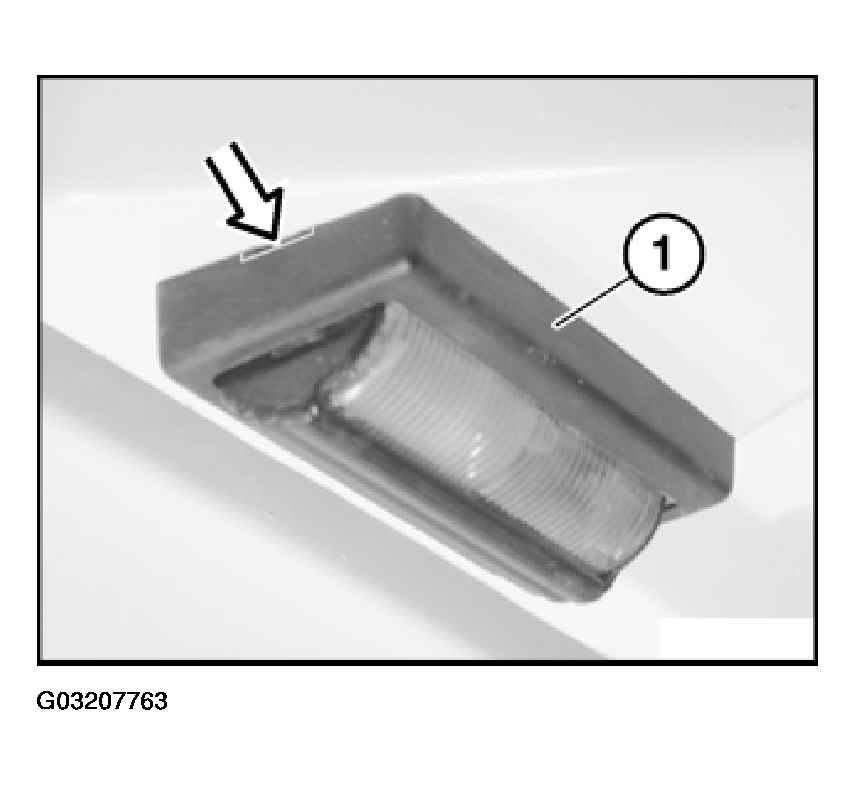

Unclip cover (1) at side recess (arrowed) and remove towards bottom.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

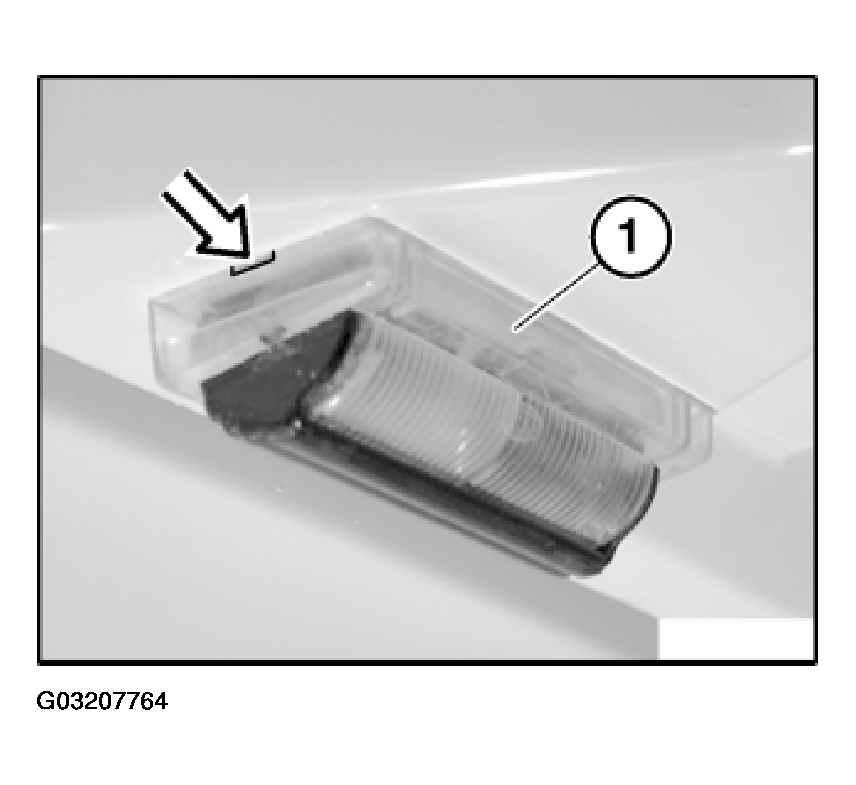

Unclip lamp housing (1) at side recess (arrowed).

Fig 2: Unclipping Lamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

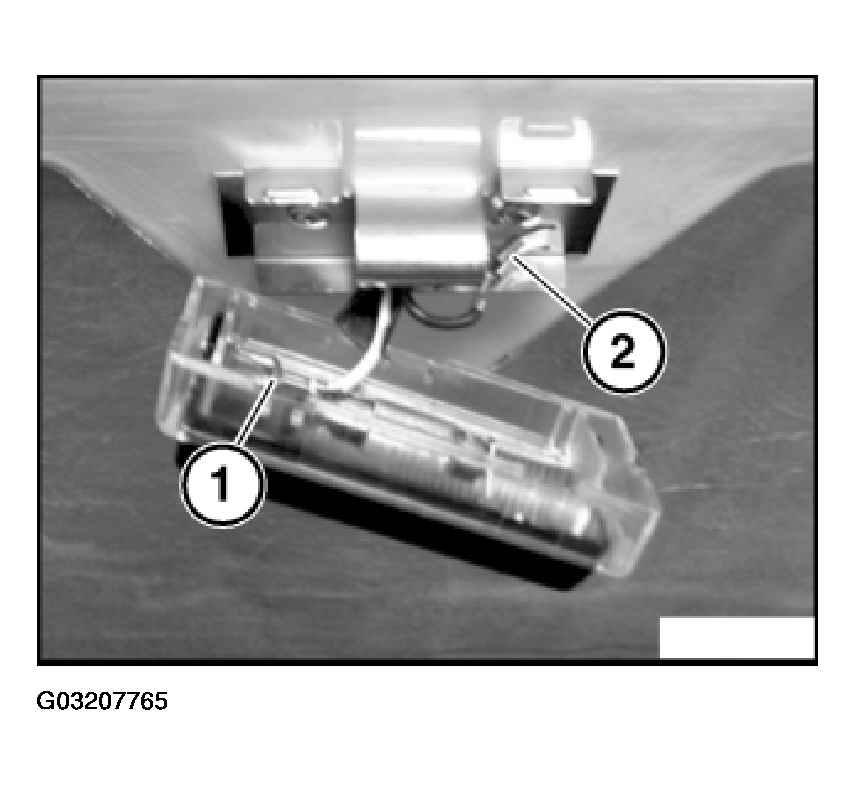

Disconnect flat connector (1) from flat connector contact.

Fig 3: Disconnecting Flat Connector From Flat Connector Contact

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Before drilling out rivets, drive in rivet pins with a punch.

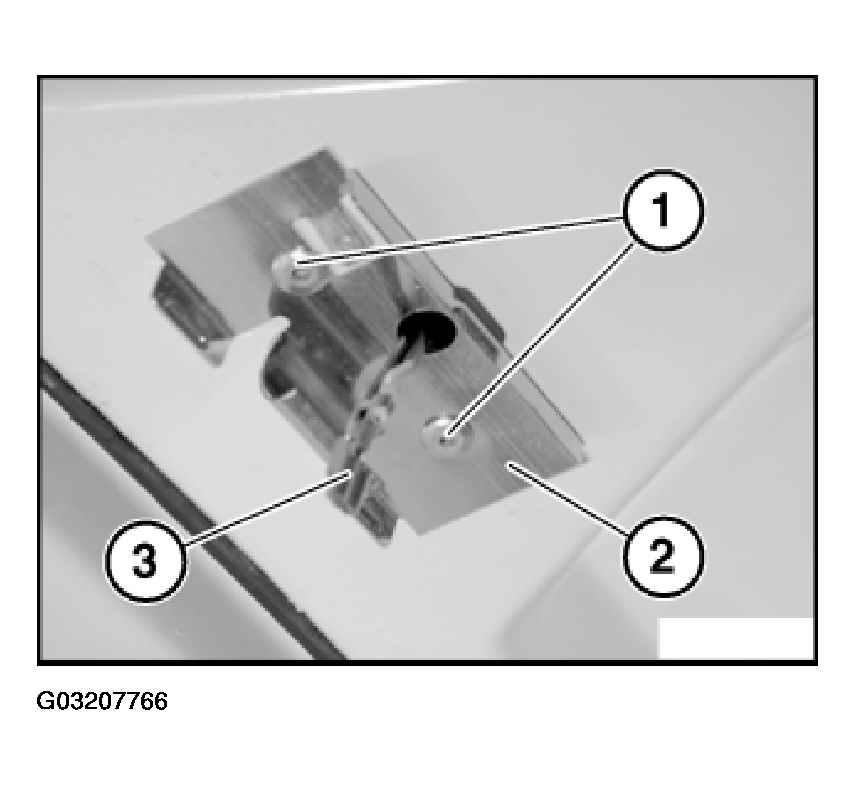

Drill out rivets (1). Pull off inside light mounting bracket (2) over flat connector (3).

Fig 4: Pulling Off Inside Light Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
