86 10 ... Disassembly of left and right wheel boxes

Remove sealing compound (1).

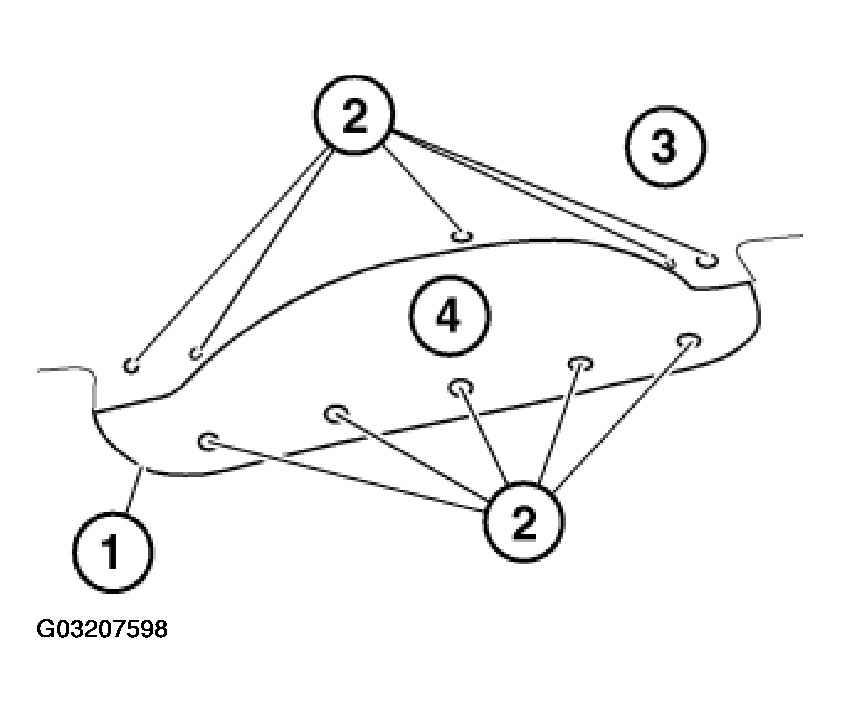

Fig 1: Removing Wheelbox

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (2).

Raise side apron (3). Pull out wheel box (4) towards rear.

Installation:

Use Sikaflex 221 as sealing compound.
