System Components: Notes

The ACC system consists of the following components:

• Sensor-Control Module Unit

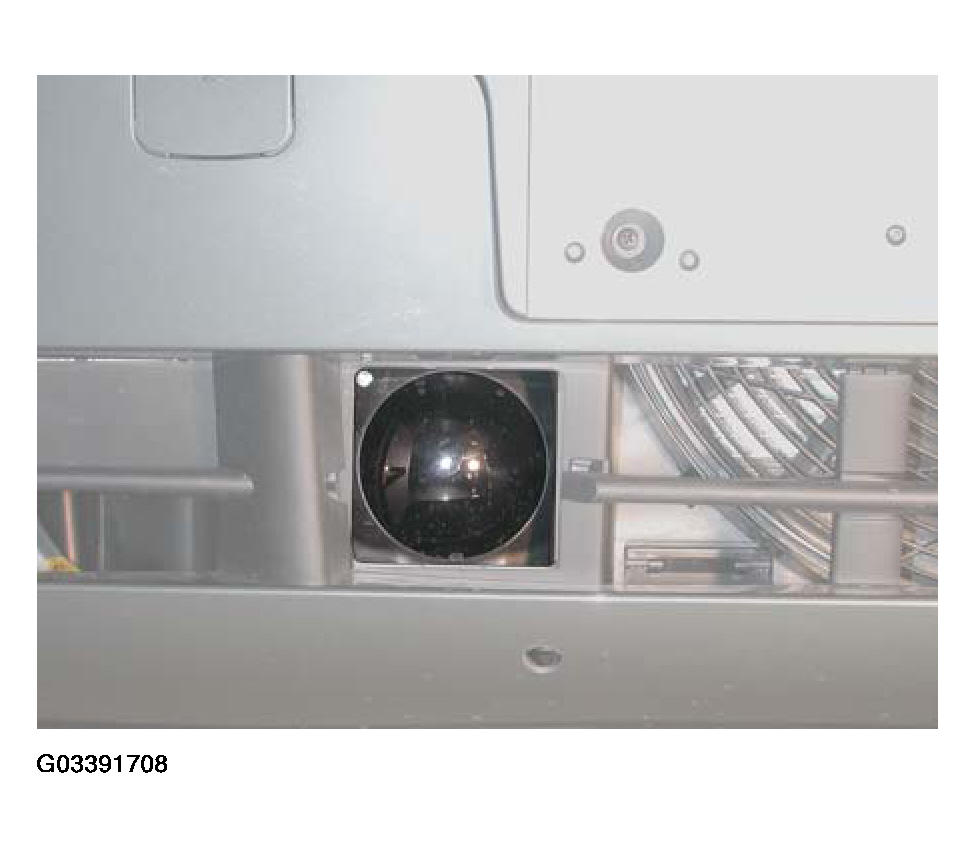

Fig 1: Identifying Sensor-Control Module Unit
Courtesy of BMW OF NORTH AMERICA, INC.
• Steering Column Stalk Switch

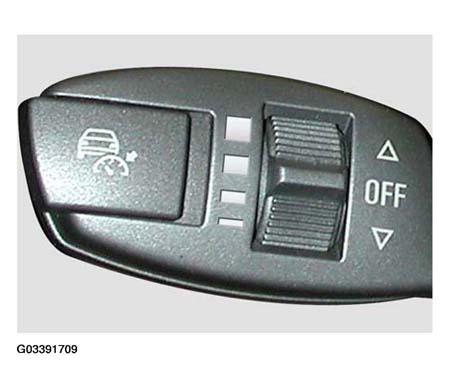

Fig 2: Identifying Steering Column Stalk Switch
Courtesy of BMW OF NORTH AMERICA, INC.
• Instrument Cluster Display
