System Interfaces: Notes

The following systems interface with the ACC system:

• DME
• DSC
• Steering Angle Sensor
• EGS
• Parking Brake
• Yaw Rate Sensor

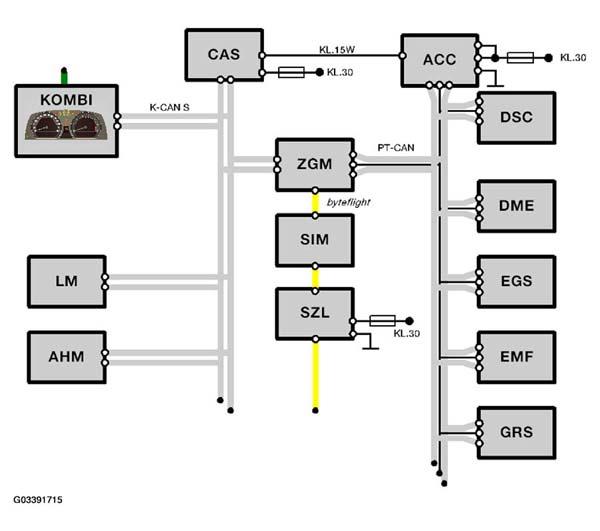

  Fig 1: Active Cruise Control System Diagram

  Courtesy of BMW OF NORTH AMERICA, INC.
