Engine Block: Flywheel
The lightweight flywheel is made from a laminated plate. The starter ring gear is also the increment wheel for engine speed and crankshaft positioning/misfire detection.

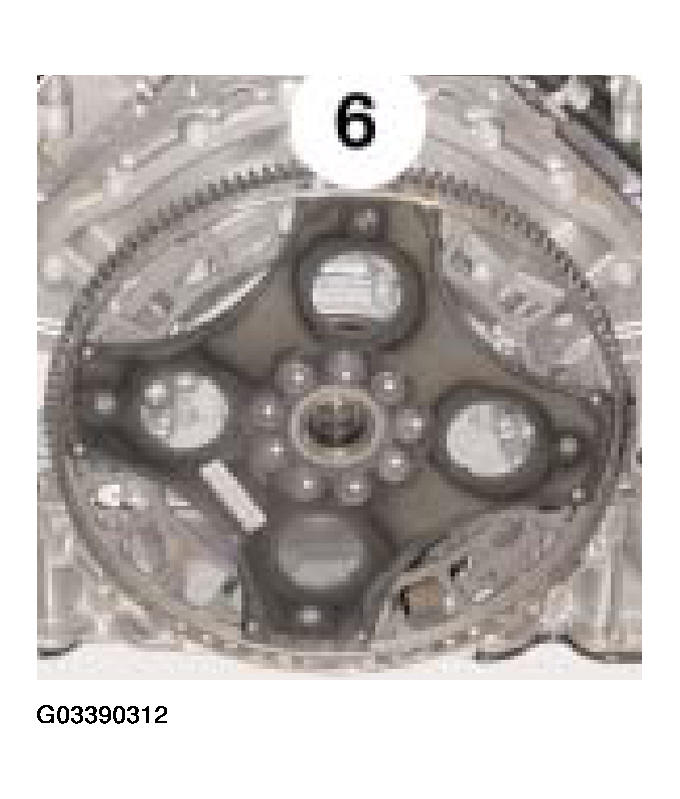

The ring gear is riveted directly to the flexplate (6). The flywheel diameter is 320 mm.
