Vibration Damper: Notes

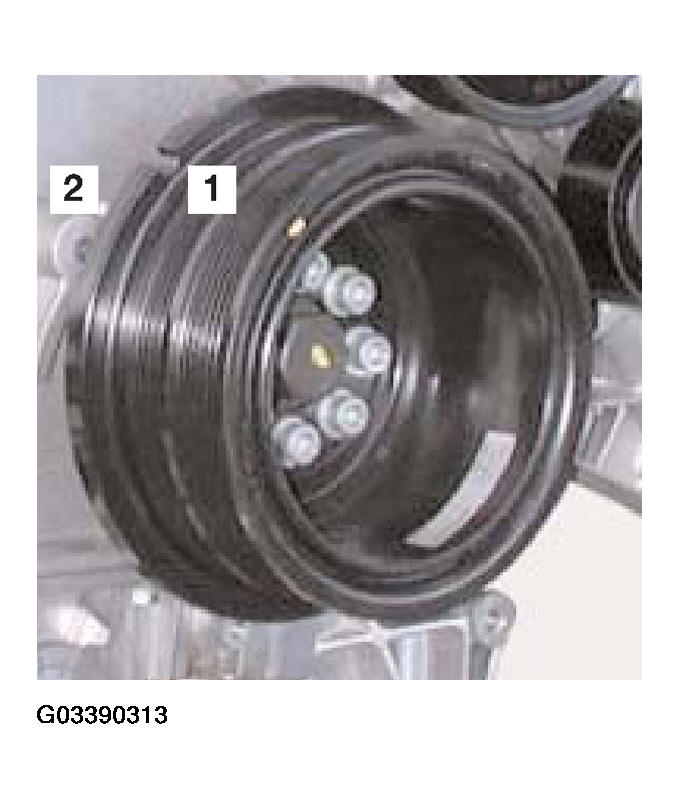

The vibration damper is a torsional vibration absorber (axial design). The outer edge of the damper has a notch (1) to accept the locating tool when positioning the crankshaft for initial setting.
The locating tool inserts into the raised mount in the front cover (2).
