BREAK OUT BOX

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 01 02, Date of Issue: January 2002

BMW:	E65
GROUP:	04 - Tools and Equipment

SUBJECT

Break Out Box

SITUATION

Distribution of the following Break Out Box will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

105 Pin Break Out Box

PN 90 88 6 614 380

Price = $229.80

Used in conjunction with adapter cables to troubleshoot vehicle systems. Follow the instructions in the DISplus test plan.

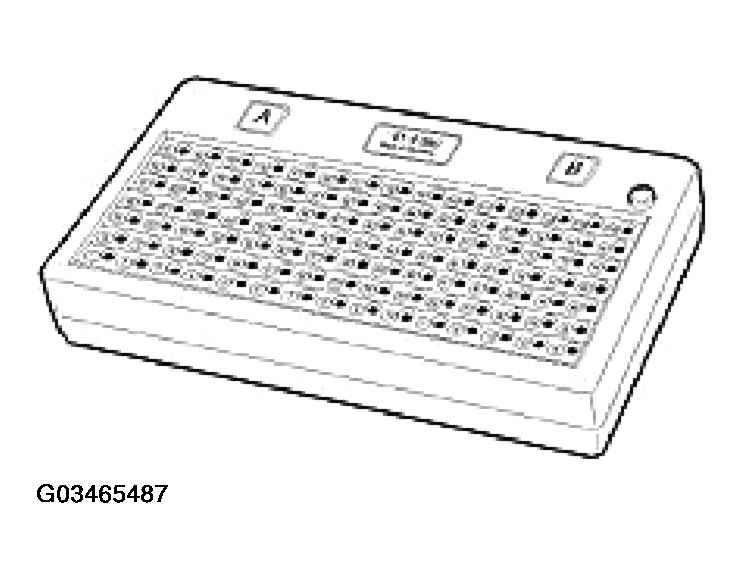

Fig 1: 105 Pin Break Out Box

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
