61 61... Overview Of Windshield Washer System And Headlight Cleaning System (SRA)
61 61... Overview Of Windshield Washer System And Headlight Cleaning System (SRA)

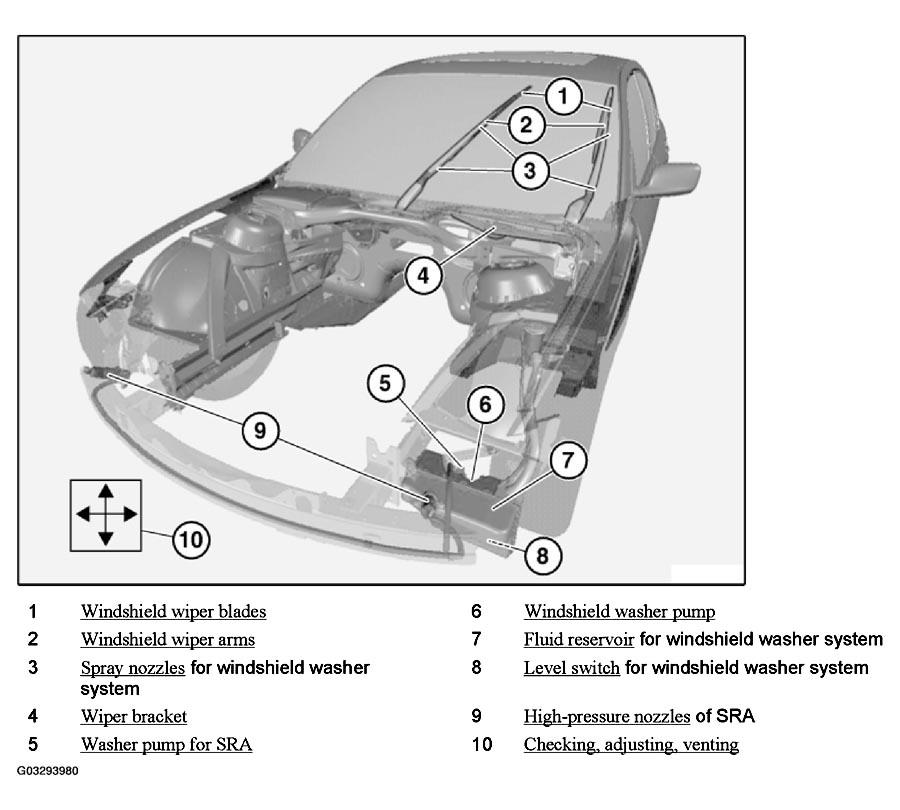

Fig 1: Windshield Washer System And Headlight Cleaning System Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
