Closed Circuit Current Monitoring - Overview
›
Closed-Circuit Current Monitoring and Vehicle Sleep Mode
›
Notes
Closed-Circuit Current Monitoring and Vehicle Sleep Mode: Notes

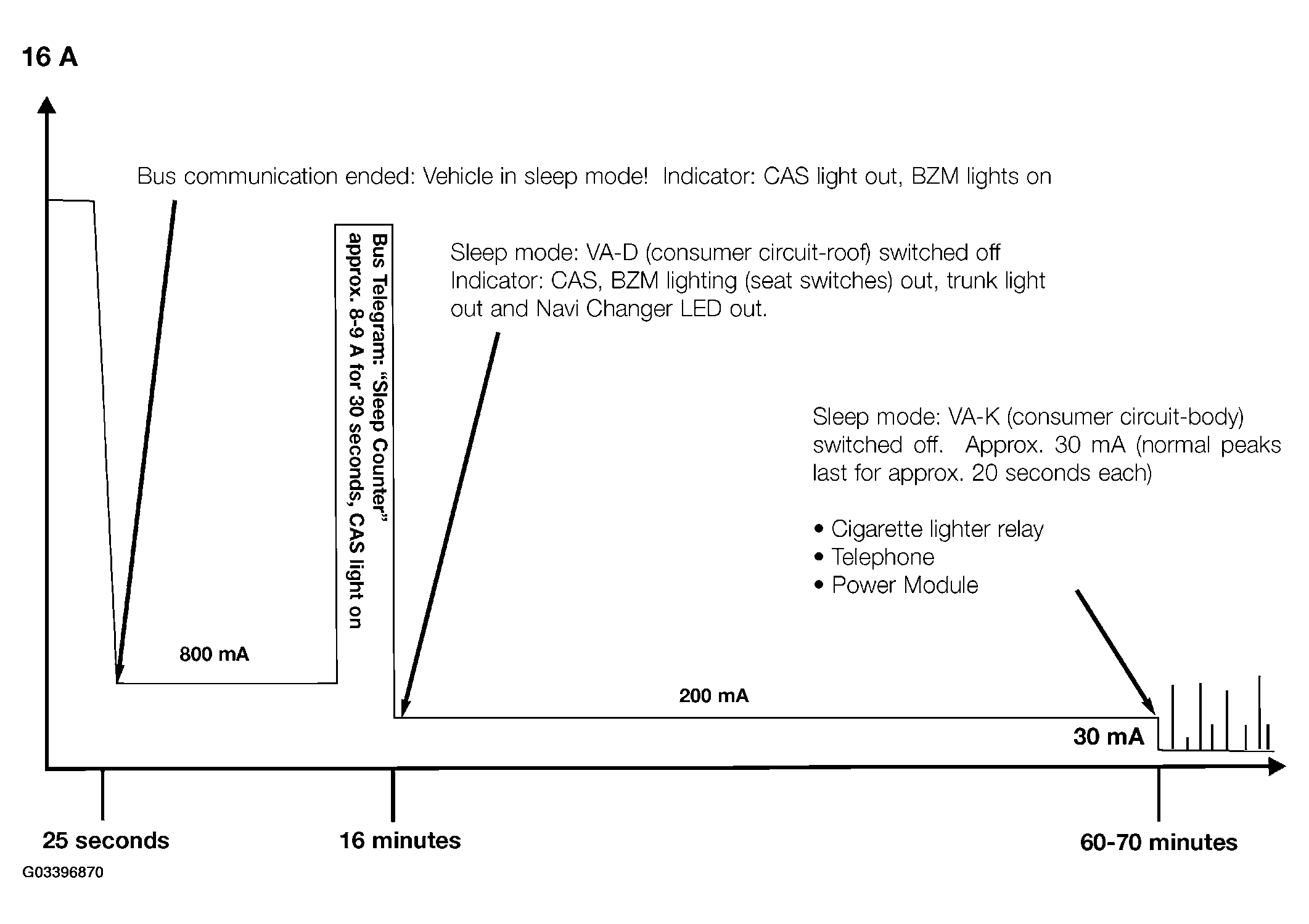

Fig 1: View Of Closed-Circuit Current Monitoring And Vehicle Sleep Mode
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
