Wiring Diagrams

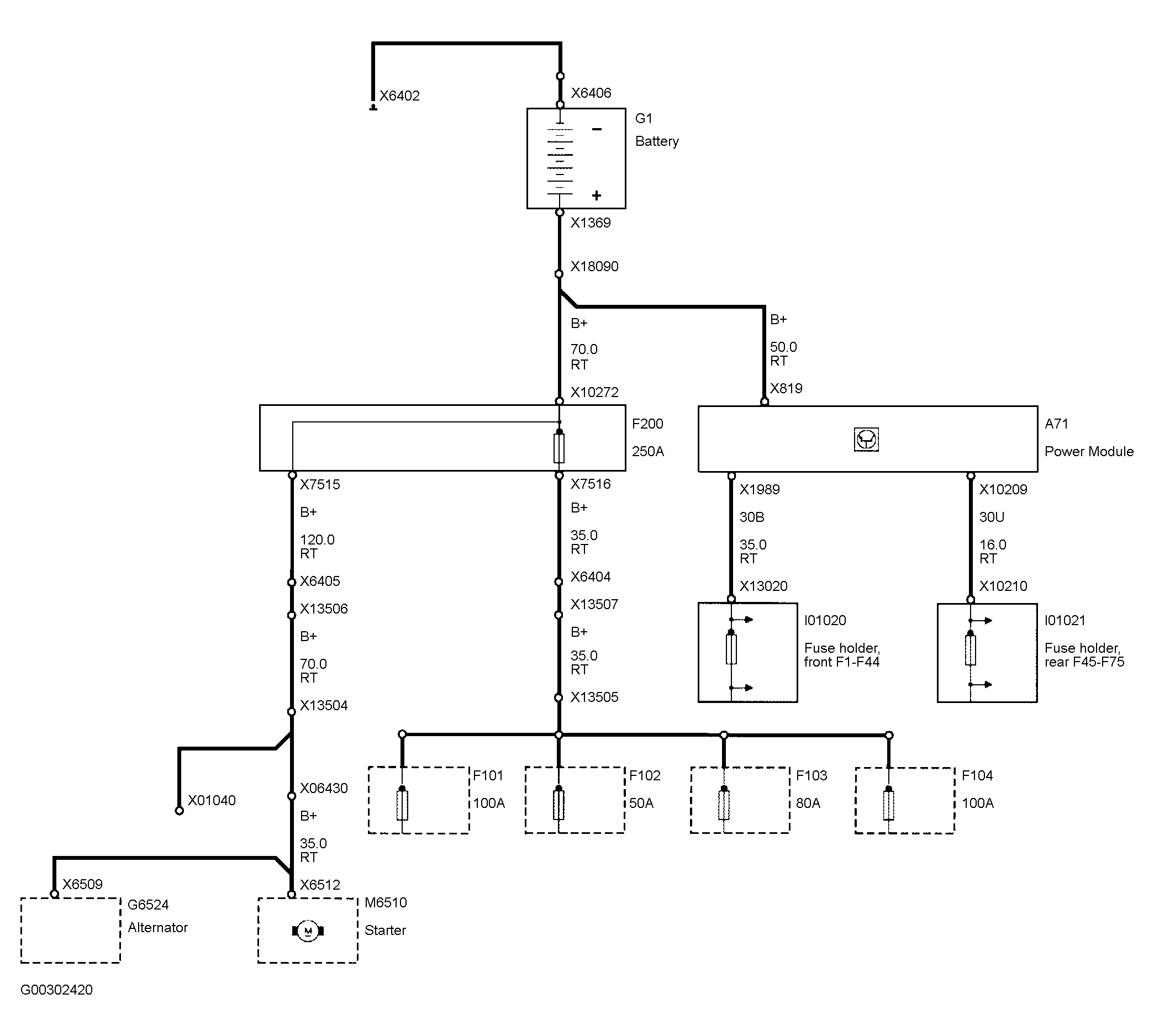

Fig 1: Charging System Wiring Diagram (760)
G00302420Courtesy of BMW OF NORTH AMERICA, INC.
