N73 Special Tools (04 07 03)

Publication date: 2003-03-01
Reference number: 04 07 03

N73 SPECIAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 07 03, Date of Issue: March 2003

BMW:	E66 N73
GROUP:	04 - Tools and Equipment

SUBJECT

N73 Special Tools

MODEL

E66 N73

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

Thrust Bushing

PN 90 88 6 112 007

Price = $6.00

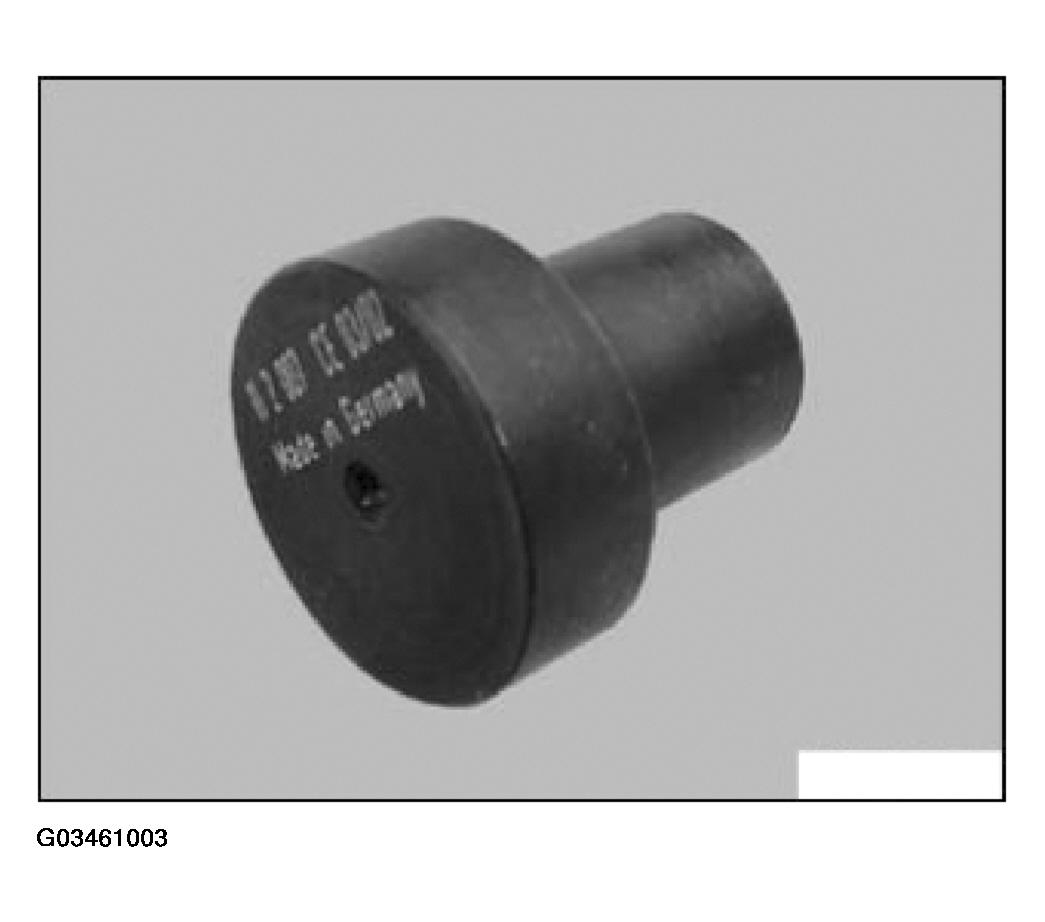

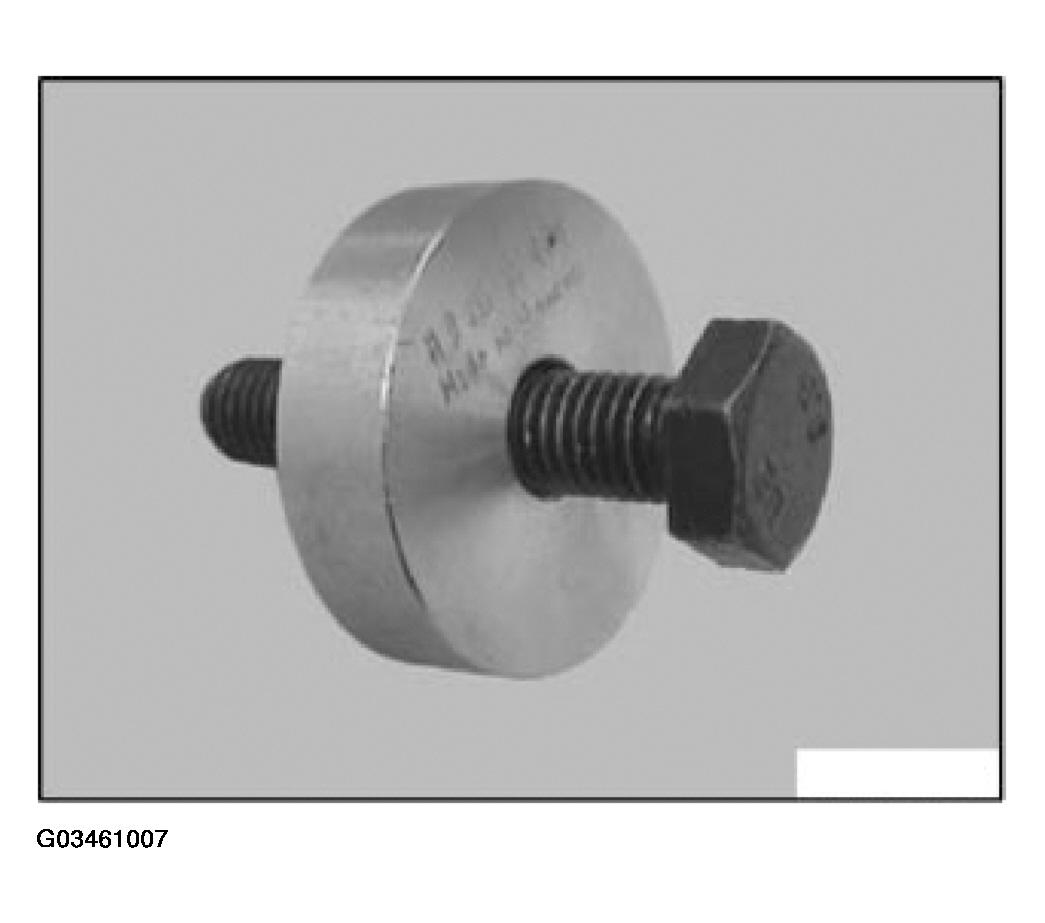

Fig 1: Thrust Bushing

Used in conjunction with 88 88 6 112 000 (tool board #2) to pull the chain sprocket from the crankshaft. Refer to repair manual section 11 31 052.

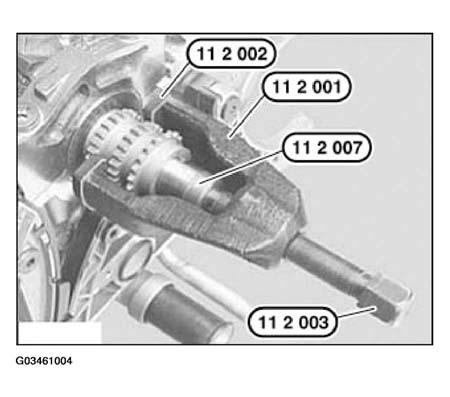

Fig 2: Pulling Chain Sprocket From Crankshaft

Pin Spanner Wrench

PN 90 88 6 117 270

Price = $9.00

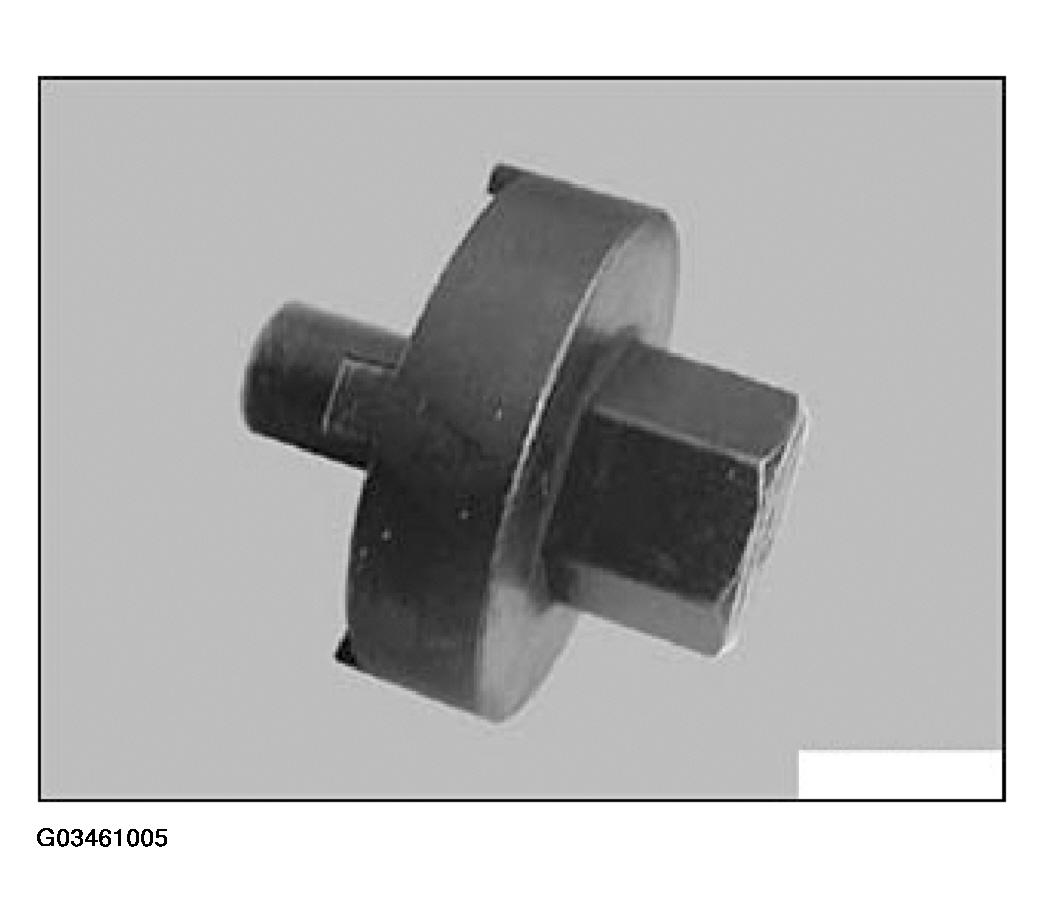

Fig 3: Pin Spanner Wrench

Used to R & R the variable valve gearing on the intermediate shaft. Refer to repair manual section 11 12 105.

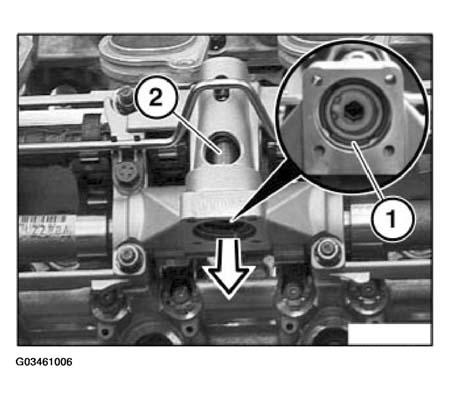

Fig 4: Variable Valve Gearing On The Intermediate Shaft

Crankshaft Shim

PN 90 88 6 119 455

Price = $6.65

Fig 5: Crankshaft Shim

Used in conjunction with 90 88 6 113 460 (B04 28 92 , tool board 15) and 90 88 6 119 450 (B04 06 02 , tool board 18) to hold the crankshaft during R & R of the central bolt. Refer to repair manual section 11 23 031.

Fig 6: Holding Crankshaft During R & R Of Central Bolt

Camshaft Securing Bracket

PN 90 88 6 119 476

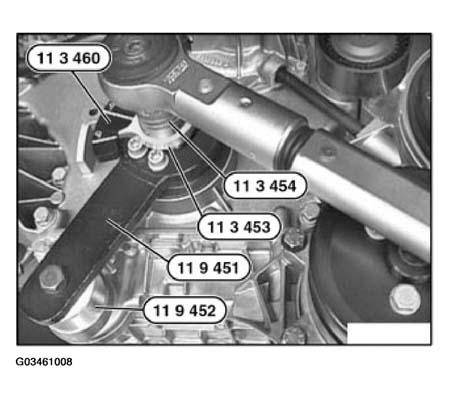

Price = $75.00

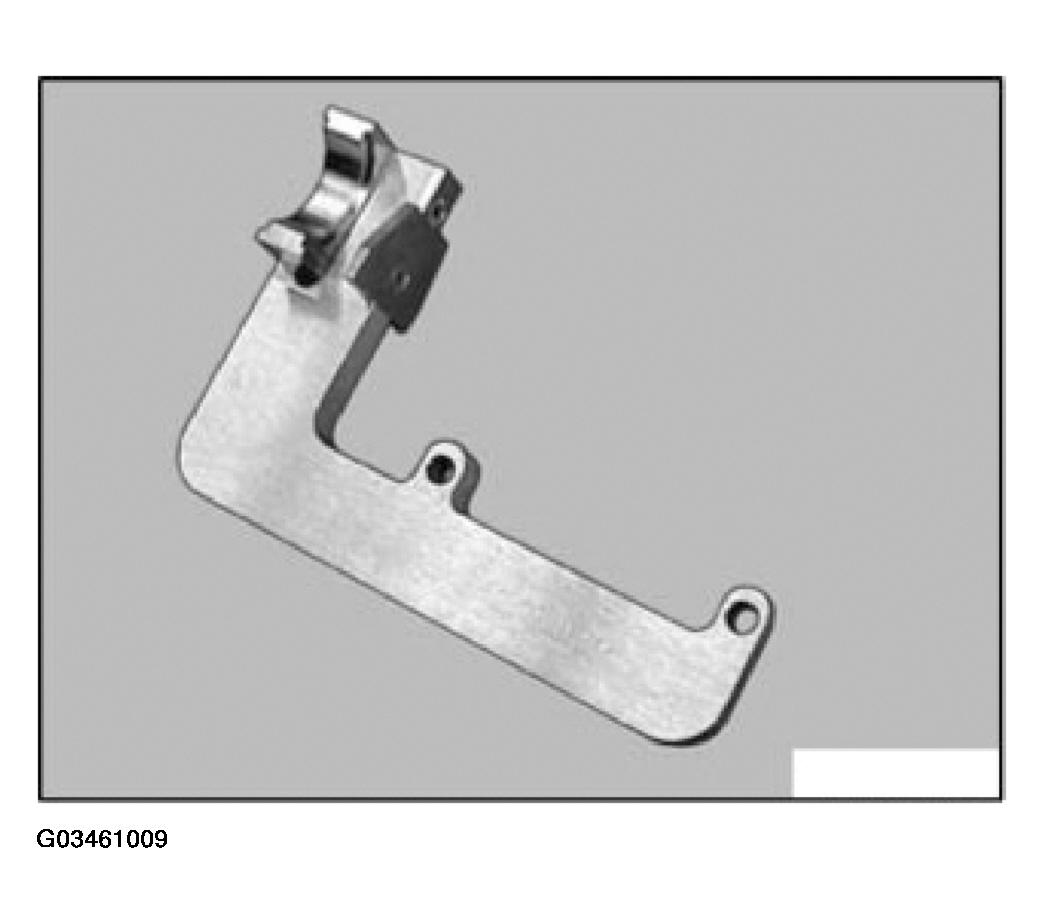

Fig 7: Camshaft Securing Bracket

Used in conjunction with 90 88 6 119 470 (B04 06 02 ) to secure the intake camshaft while fitting the end bracket. Refer to repair manual section 11 37 012.

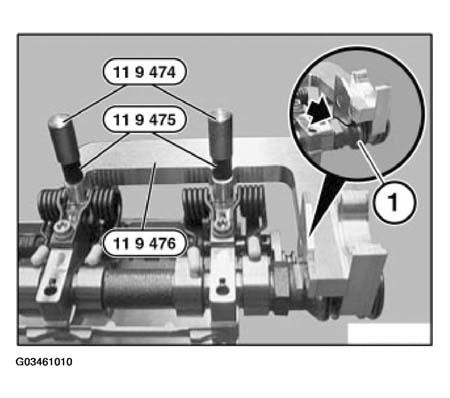

Fig 8: Securing Intake Camshaft Fitting End Bracket

Fuel Injector Remover

PN 90 88 6 131 430

Price = $14.05

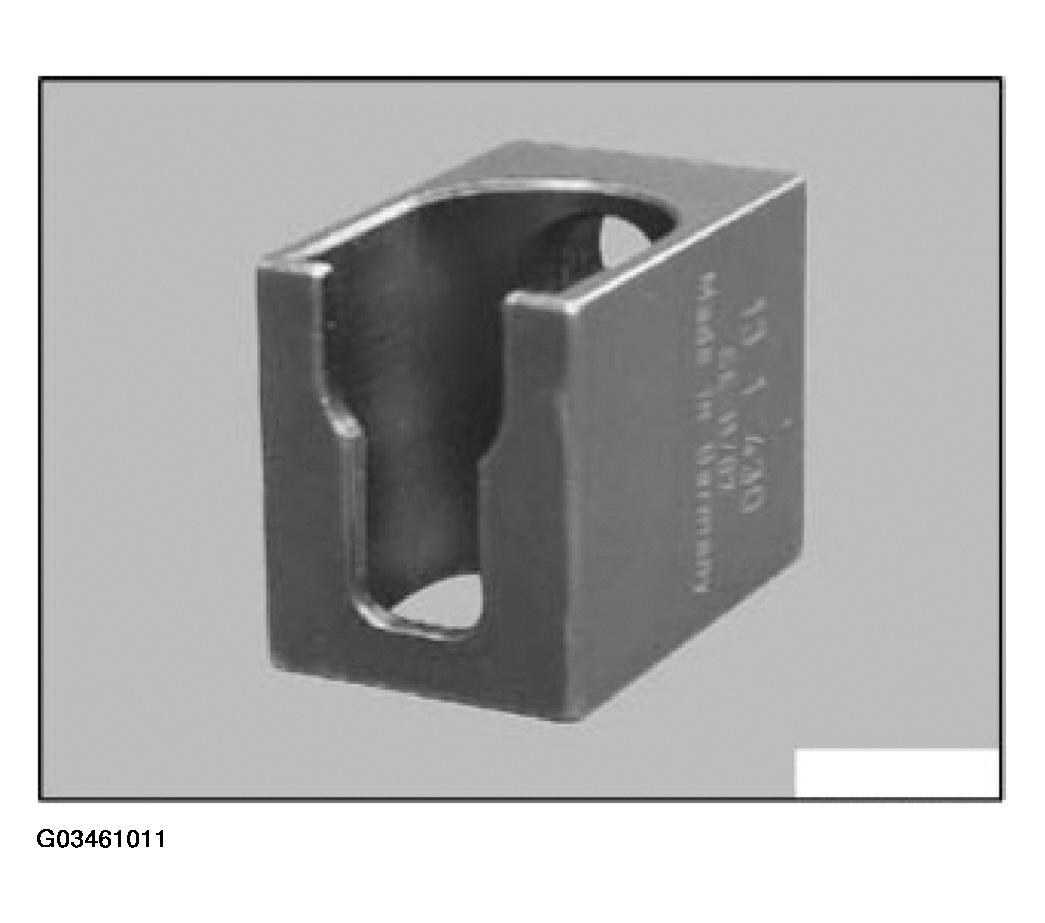

Fig 9: Fuel Injector Remover

Used in conjunction with slide hammer PN 90 88 6 135 250 (B04 18 01 , tool board 19) to remove fuel injectors. Refer to repair manual section 13 64 593.

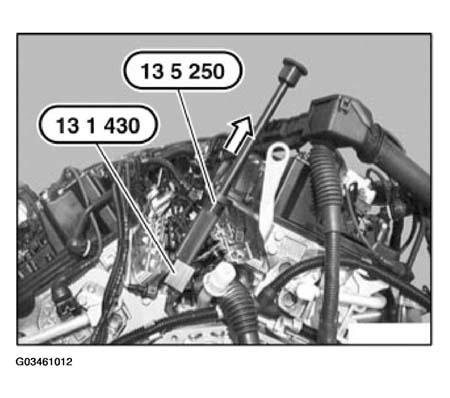

Fig 10: Removing Fuel Injectors

Engine Support Brackets

PN 90 88 6 110 150

Price = $154.40

NOTE: At the time of publication, this tool was not in inventory. As soon as stock is received, the tool will be sent out via the Automatic Tool Shipment program. Do not order the tool.

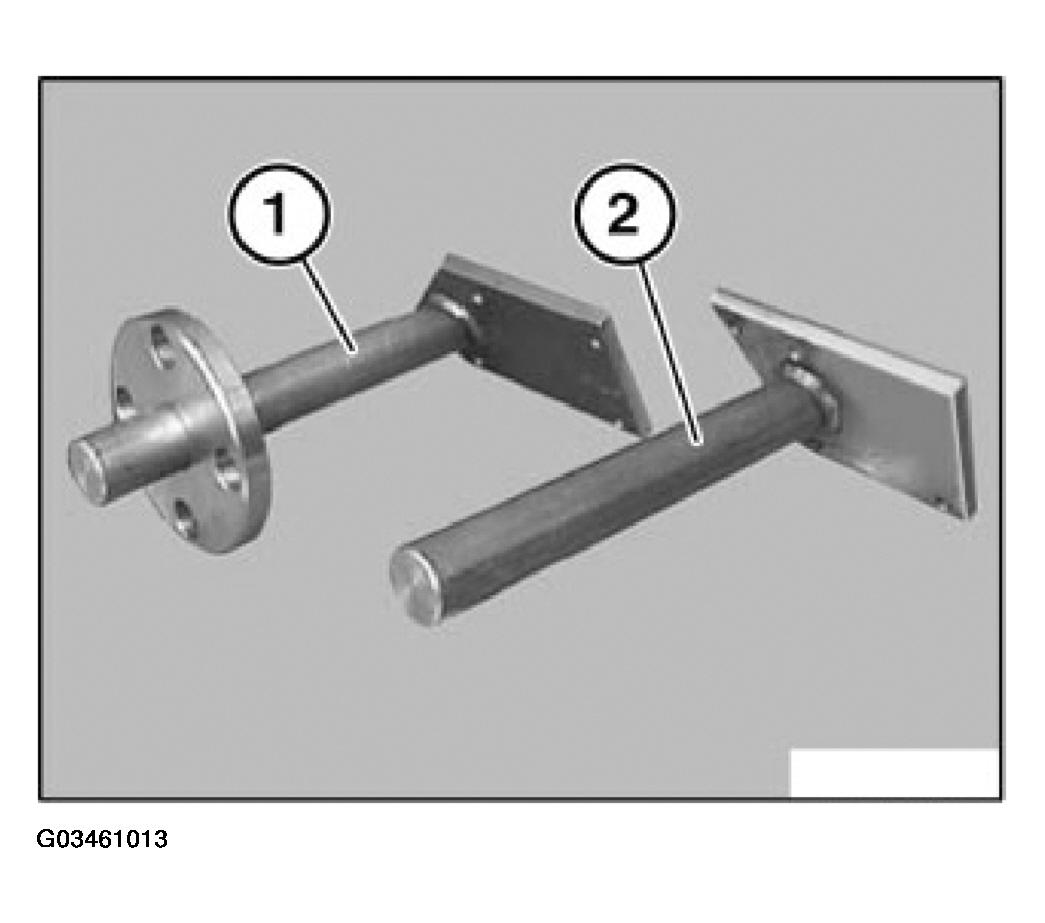

Fig 11: Engine Support Brackets

Used to support the engine while mounted on engine stand PN 88 88 6 001 450 (B04 17 87 ).

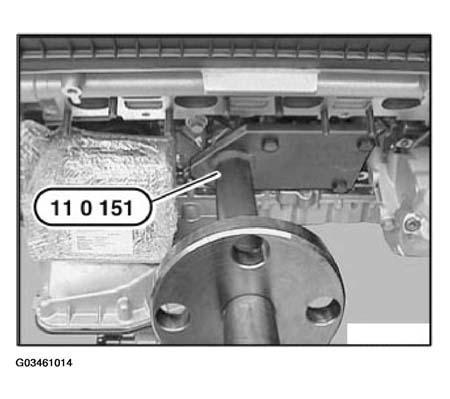

Fig 12: Supporting Engine On Engine Stand

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
