ASSORTED SPECIAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 20 03, Date of Issue: August 2003

BMW:	E65/E66 (7 Series)
GROUP:	04 - Tools and Equipment

SUBJECT

Assorted Special Tools

MODEL

E65/E66 (7 Series)

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

Strut Wrench

PN 90 88 6 312 230

Price = $6.20

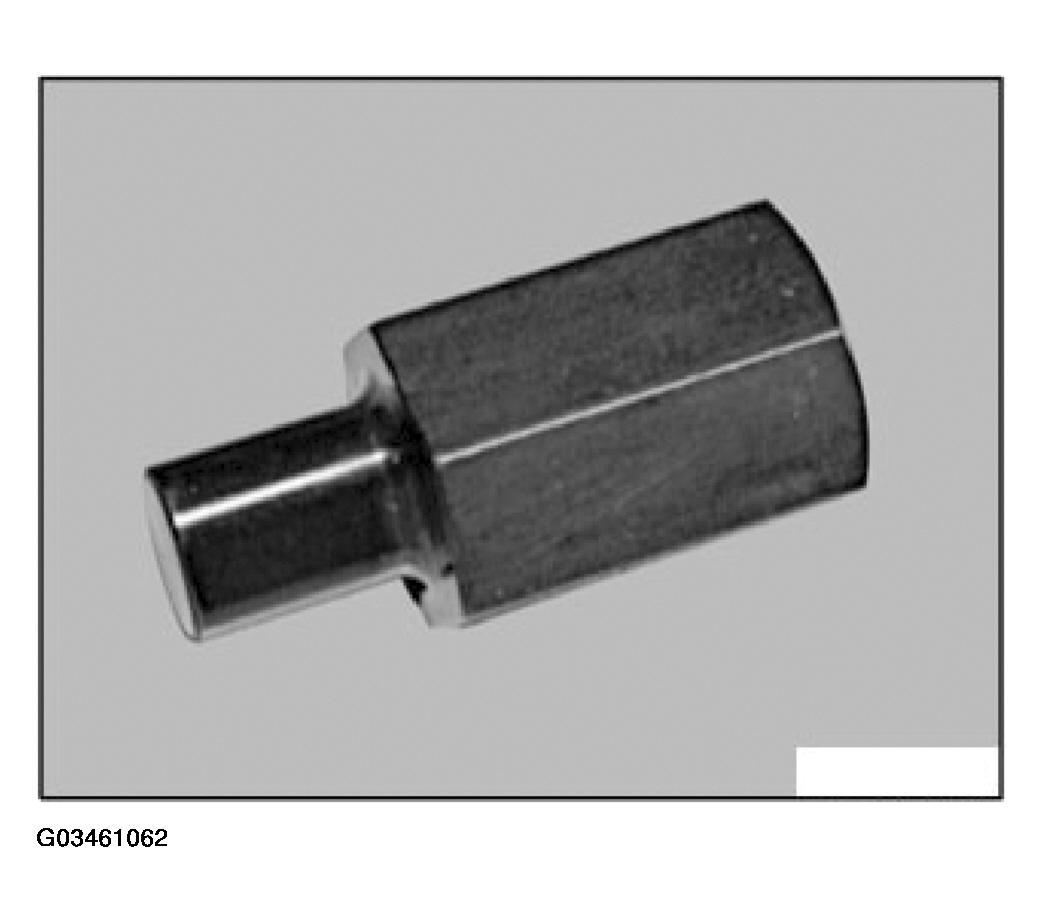

Fig 1: Strut Wrench

Used to open up the wheel carrier when removing the spring strut. Refer to repair manual section 31 31 000.

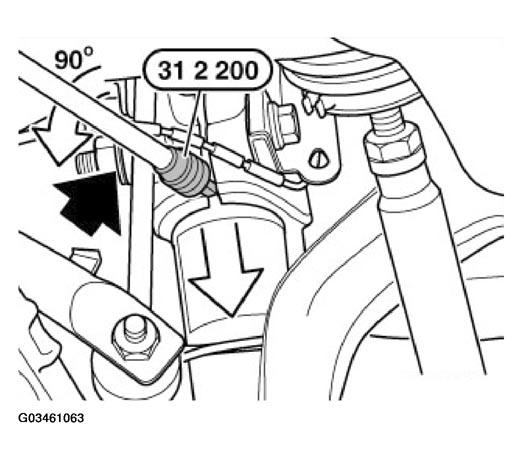

Fig 2: Removing Spring Strut

Release Fork

PN 90 88 6 321 300

Price = $15.70

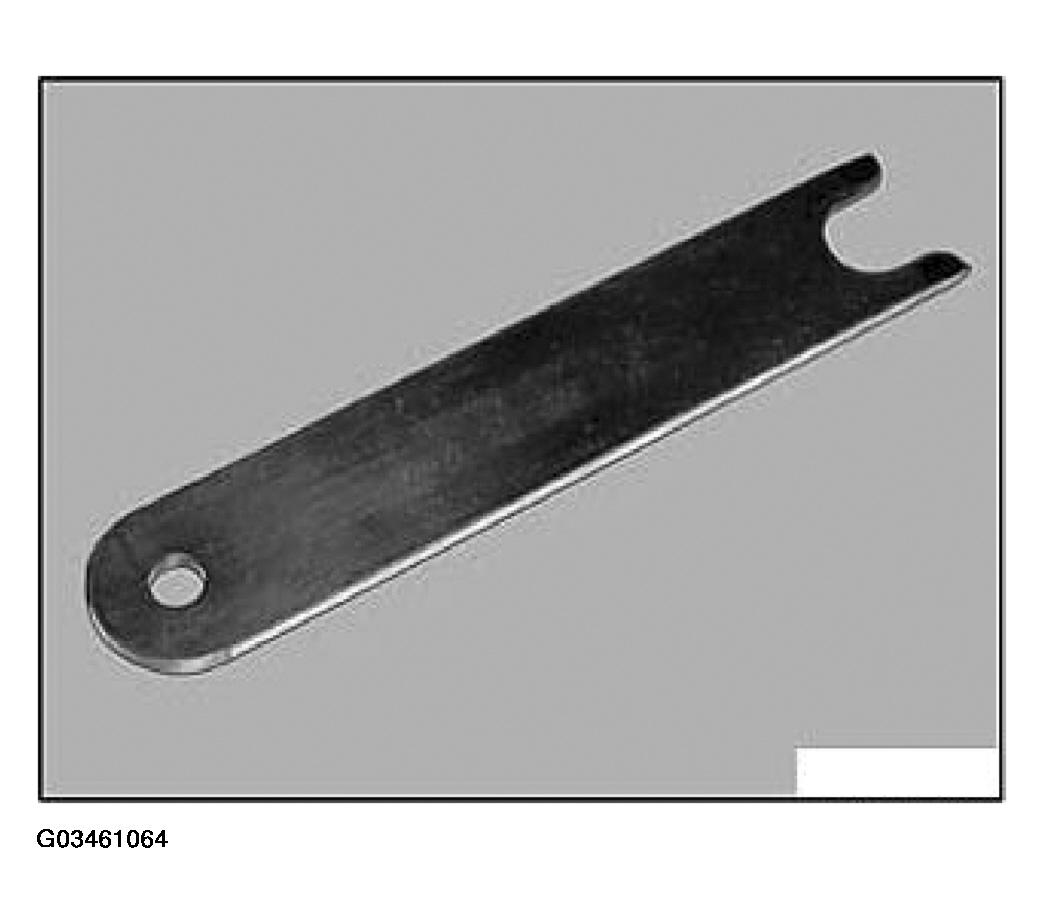

Fig 3: Release Fork

Used to release the quick-release couplings on the N73 steering box hydraulic lines. Refer to repair manual:

32 Overview of Steering
9 Power steering Gear
R & R Power Steering Gear
32 13 060
32 13

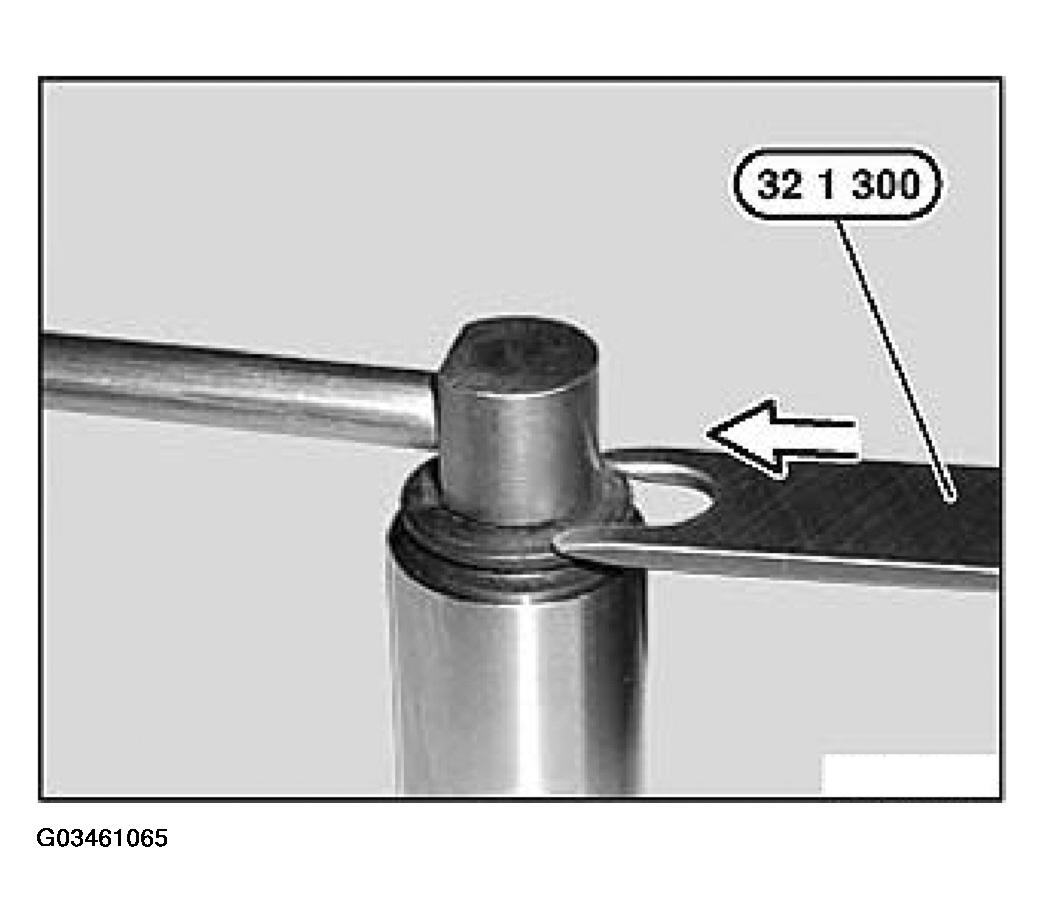

Fig 4: Releasing Quick-Release Couplings On N73 Steering Box Hydraulic Lines

ACC Adjuster

PN 90 88 6 361 130

Price = $8.70

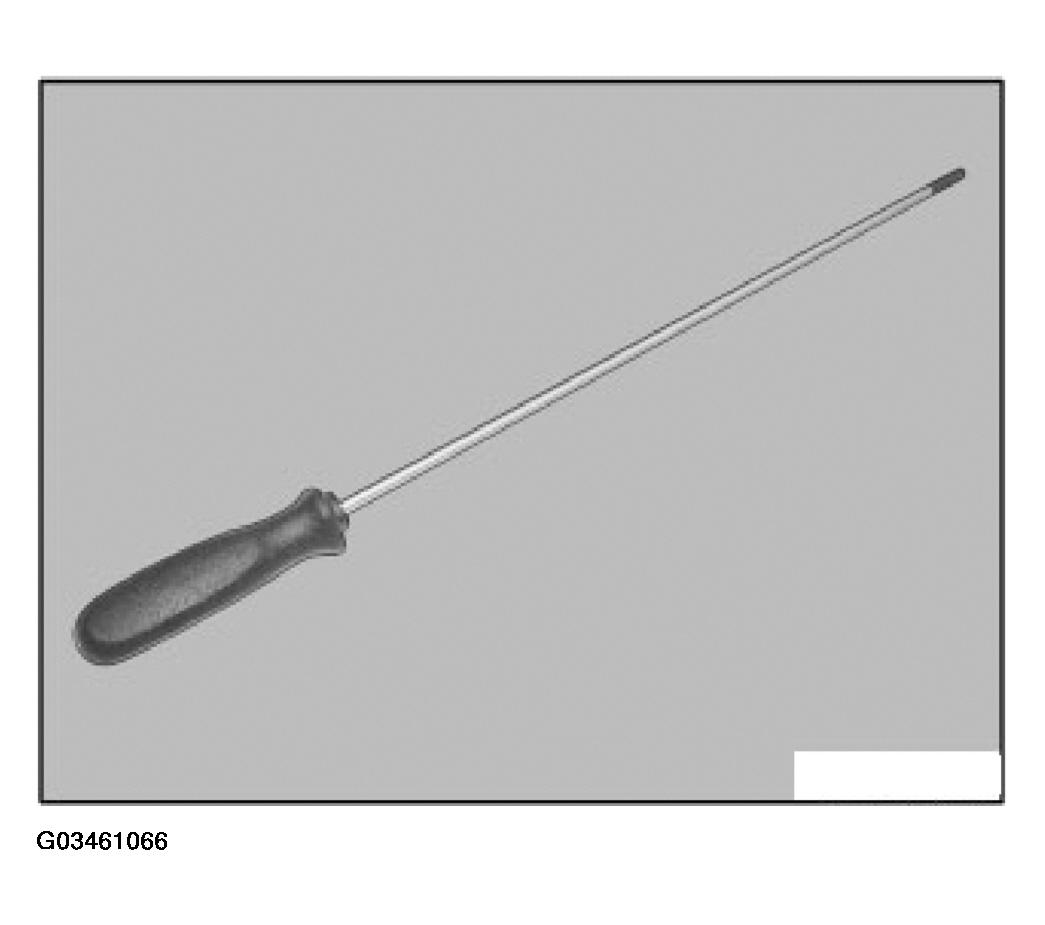

Fig 5: ACC Adjuster

This is an extra long T20 Torx used to adjust the ACC sensor (2) via the adjusting screws (3). Refer to repair manual section 66 31 001.

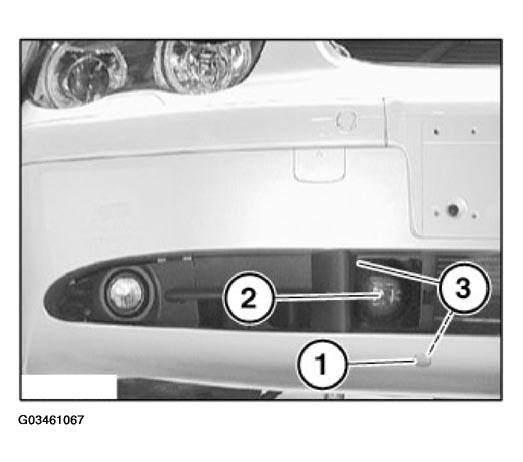

Fig 6: Adjusting ACC Sensor And Screws

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
