13 62 530 Replacing Transmission Fluid Temperature Sensor (SMG)

NOTE: After completing work: Check transmission fluid level.

CAUTION: Use only the approved gear oil in this manual transmission.

Failure to comply with this requirement will result in serious damage to the transmission.

Remove rear underbody protection.

Detach cable plug (1) on transmission fluid temperature sensor.

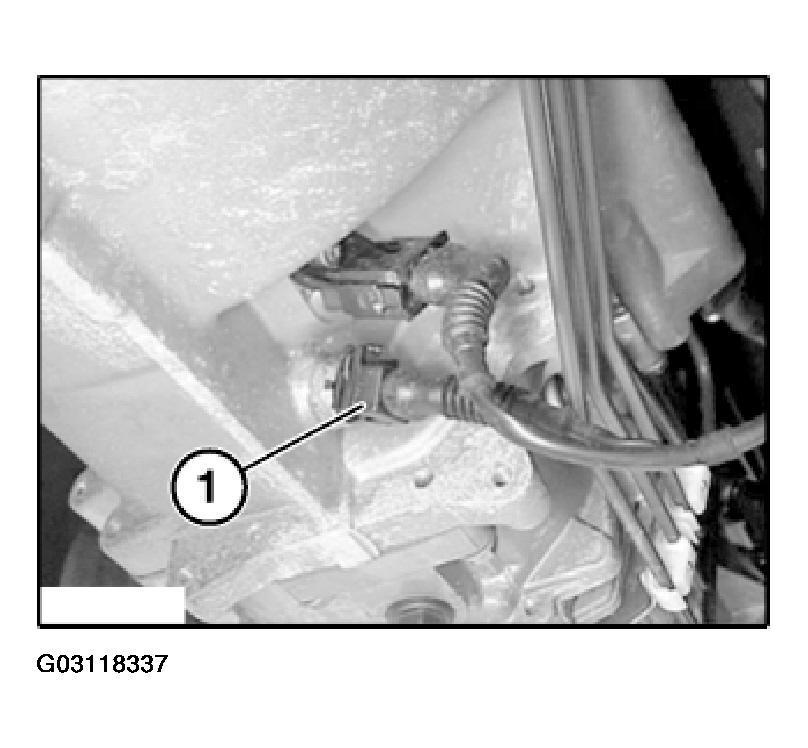

Fig 1: Locating Cable Plug On Transmission Fluid Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release transmission temperature sensor (2).

Tightening torque, refer to 13 62 2AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Remove transmission fluid temperature sensor (2).

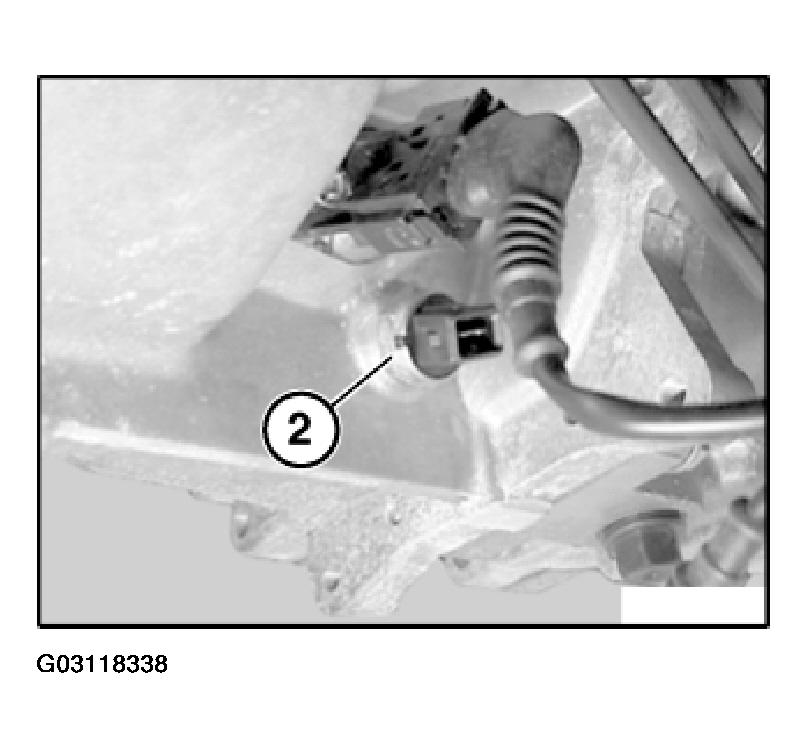

Fig 2: Removing Transmission Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
