Engine Performance - Overview
›
Engine Management Systems
›
Siemens Engine Management System
›
Ms 42.0 I-P-O
Ms 42.0 I-P-O

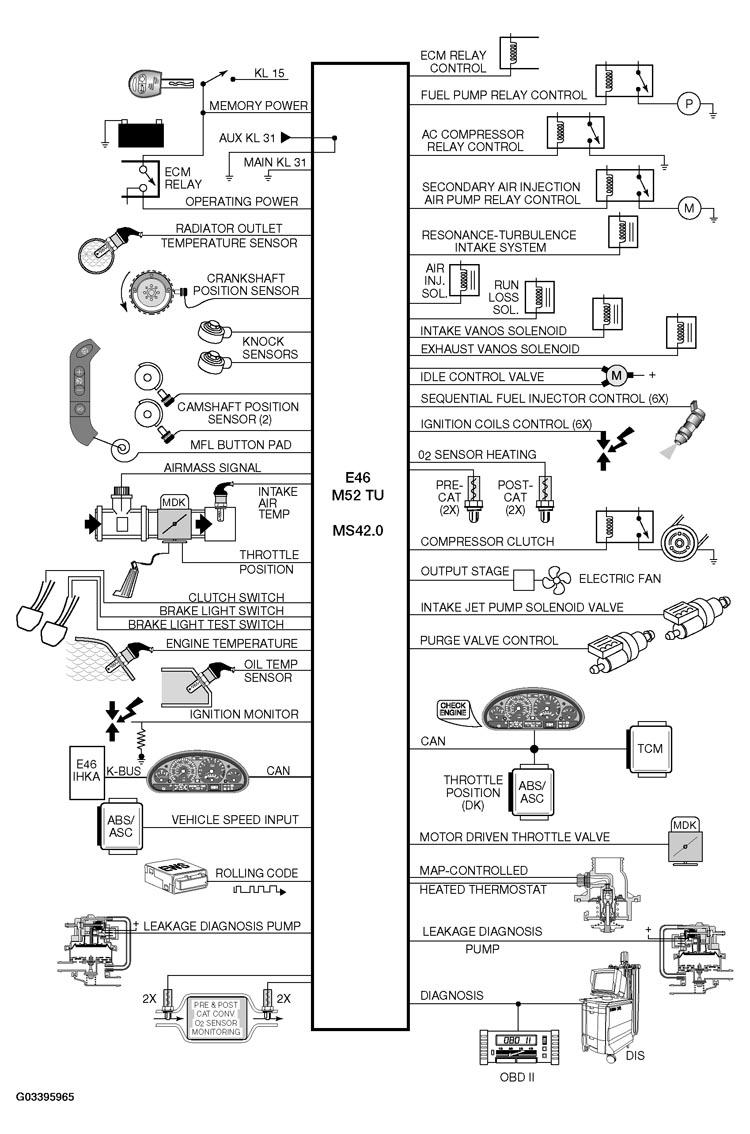

Fig 1: ECM Communication Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
