SERVICE ACTION 355 - RECODE CONVERTIBLE TOP MODULE AND IHKA

SERVICE CAMPAIGN BULLETIN

SUBJECT

Service Action to Recode Convertible Top Module and IHKA

MODEL

E46 (3 Series) Convertible

SITUATION

At ambient temperatures below 0°C (32°F), the convertible top does not operate when the button is pressed. Also, the IHKA heats at maximum capacity, and doesn't regulate temperature. Customers complain that the car gets too hot.

CAUSE

The instrument cluster sends an incorrect ambient temperature over the K-bus. At 0°C, the K-bus signal is -45°C.

AFFECTED VEHICLES

This Service Action involves E46 (3 Series) convertible vehicles (option 399), produced from April 8, 2002 to January 8, 2003.

In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.

The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor.

Model	Chassis Number Range
E46	EV89258 - EV90560
	EX23550 - EX24999
	JU93177 - JU98663
	JY43025 - JY44039
	PG85676 - PG91554
	PG97002
	PJ94003
	PK00000 - PK02272
	PL24000 - PL24001

CORRECTION

Using DISPlus/GT1 loaded with DIS CD33, or later:

• Recode the CVM (Convertible Top Module)
• Recode the IHKA

Note 1) It is not necessary to recode the instrument cluster.

Note 2) The new coding reconfigures the CVM and IHKA so that the temperature signal below 0°C is ignored. Even after recoding and when using the DISPlus/GT1, at ambient temperatures below 0°C the temperature signal on the K-bus will be seen as -45°C.

LABEL INSTRUCTIONS

This Service Action has been assigned code number 355.  After the vehicle has been checked, and corrected if necessary, obtain a label (SD 92-205) and:

1. emboss your BMW dealer warranty number in the middle of the label (1);
2. punch out code number 355  printed on the label and,
3. affix the label to the B  pillar as shown.
   NOTE: If this Service Action is being carried out at the same time as a Recall, or other Service Action, please maximize the use of each service action label by punching out the number(s) of all campaigns being performed on the same label. This will keep the "B" pillar as neat and uncluttered as possible

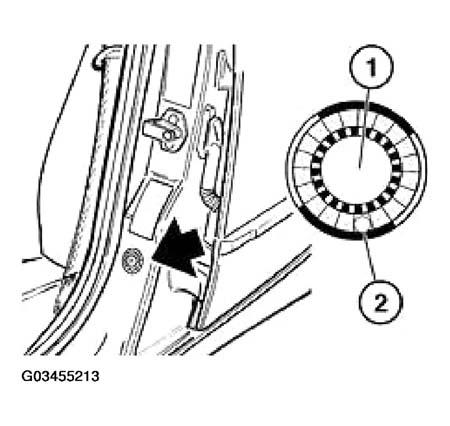

   Fig 1: Service Action Label



If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.

WARRANTY INFORMATION

Reimbursement for this Service Action will be via Campaign Entry.

Defect Code:  00 61 73 01 00
