Infinity Display

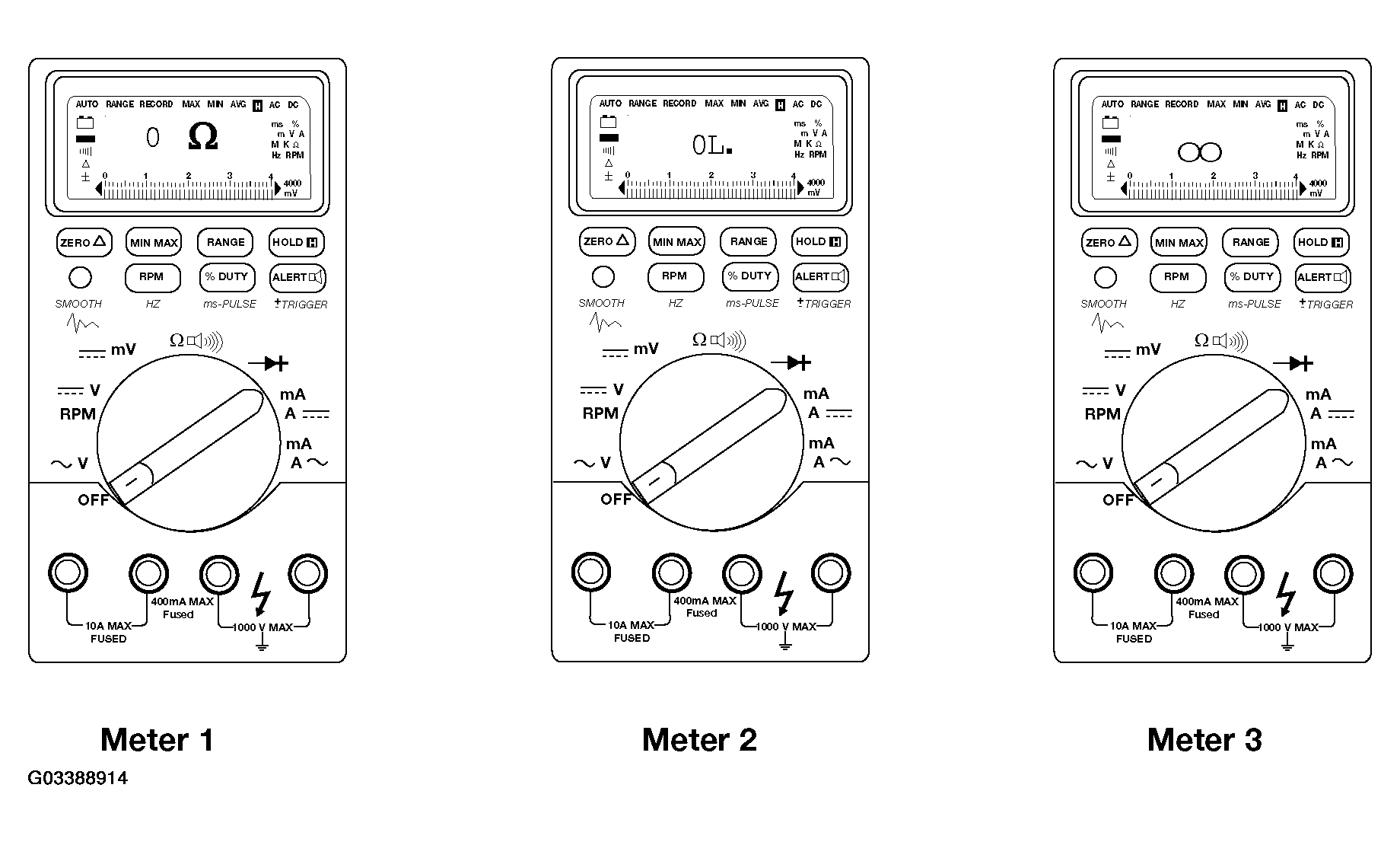

While most displays of DVOMs are standard ( i.e. mV means millivolt, mA means milliamp) the display or symbol for infinity or open circuit can be confusing. A display of 0Ω indicates no or little resistance. It means the circuit or portion of the circuit being measured has continuity or is complete. A reading of OL means the circuit is open or not complete, the resistance is said to be "INFINITY". Some meters may use the symbol "INFINITY" for Infinity. Be aware of which reading the meter being used will give for infinity or open circuit.
