PT CAN Bus Communication

The ECM provides signals to other "driveline" related modules for torque control, shift quality, diagnosis, safety enhancements, etc. This is covered in the appropriate sections.

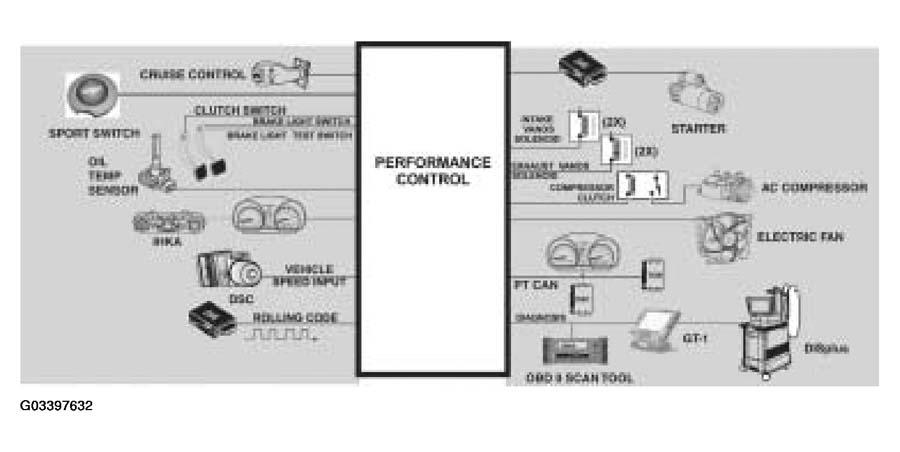

Fig 1: Identifying PT CAN Bus Communication Components
G03397632Courtesy of BMW OF NORTH AMERICA, INC.
