86 10 ... Removing rear supports and bracket

Release screws (1) and remove rear support (2) from bracket (3).

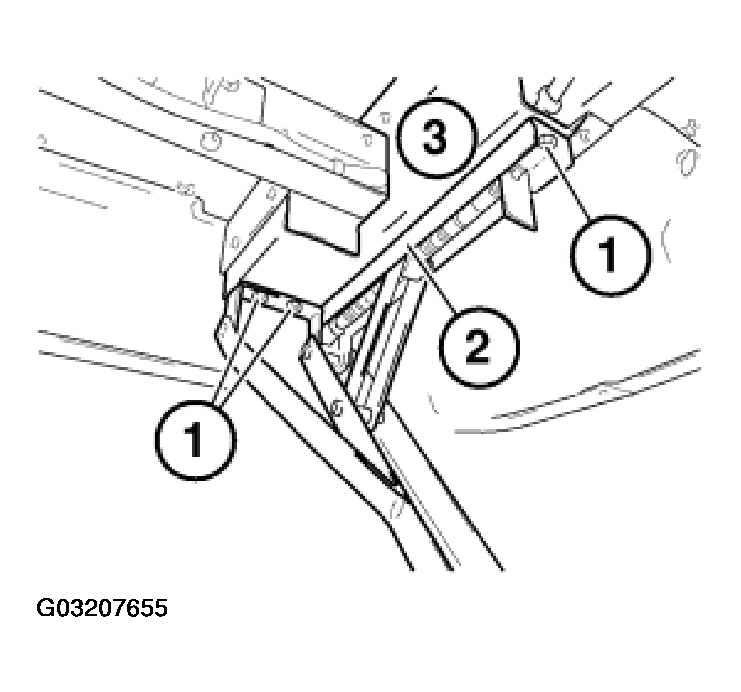

Fig 1: Removing Rear Support From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 26 Nm.

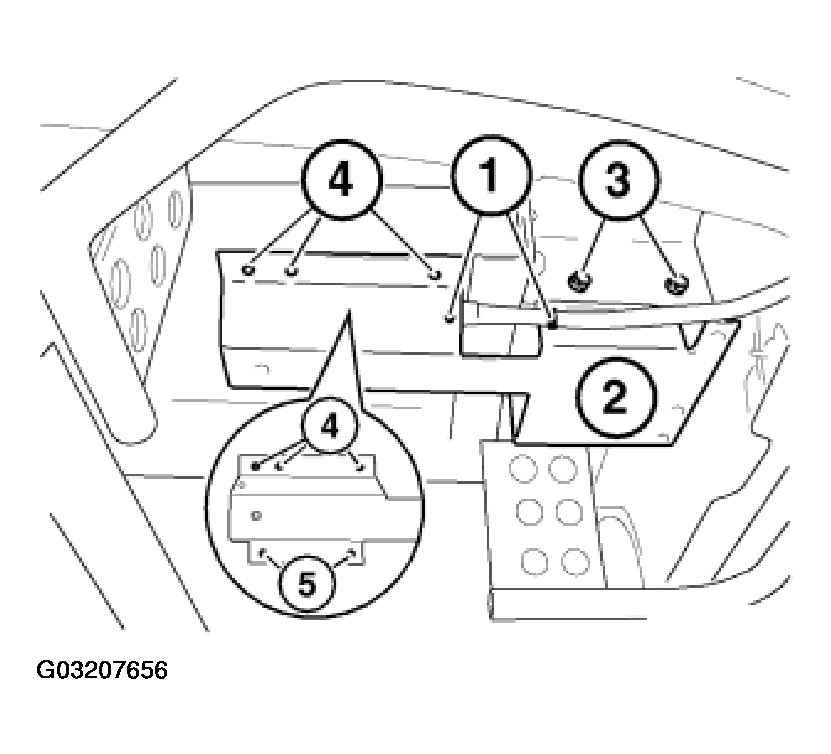

Remove cable holders (1) from bracket (2). Release screws (3) on left and right sides of bracket (2). Drill out rivets (4) from underside of platform. Drill out rivets (5) from upper side of platform.

Fig 2: Removing Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 11 Nm.

Installation:

Feed cable for rear light (1) through opening (2). Fit cable holders (4) in holes (3).

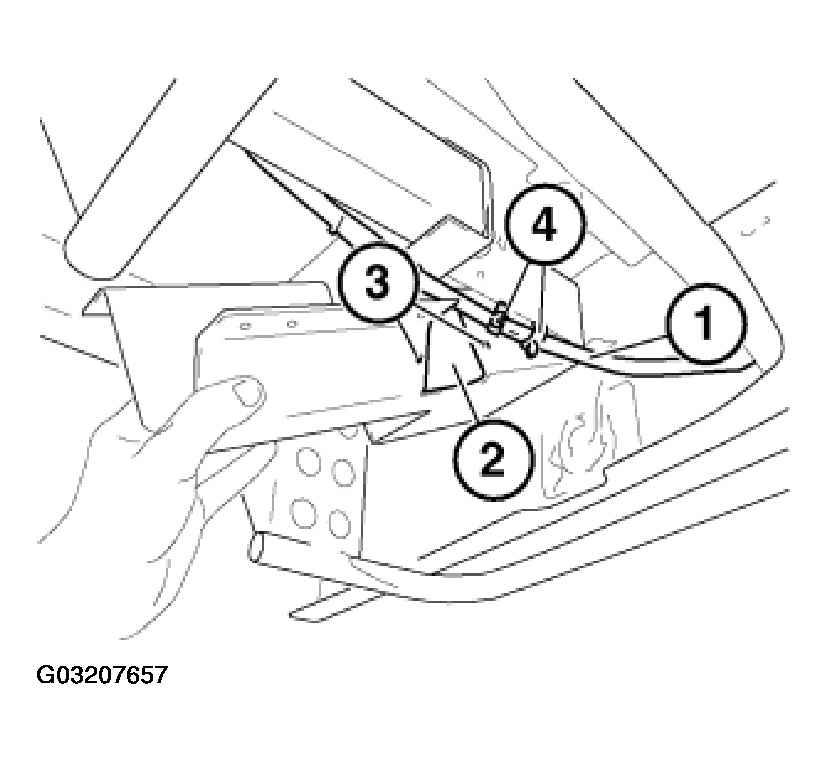

Fig 3: Feeding Cable For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
